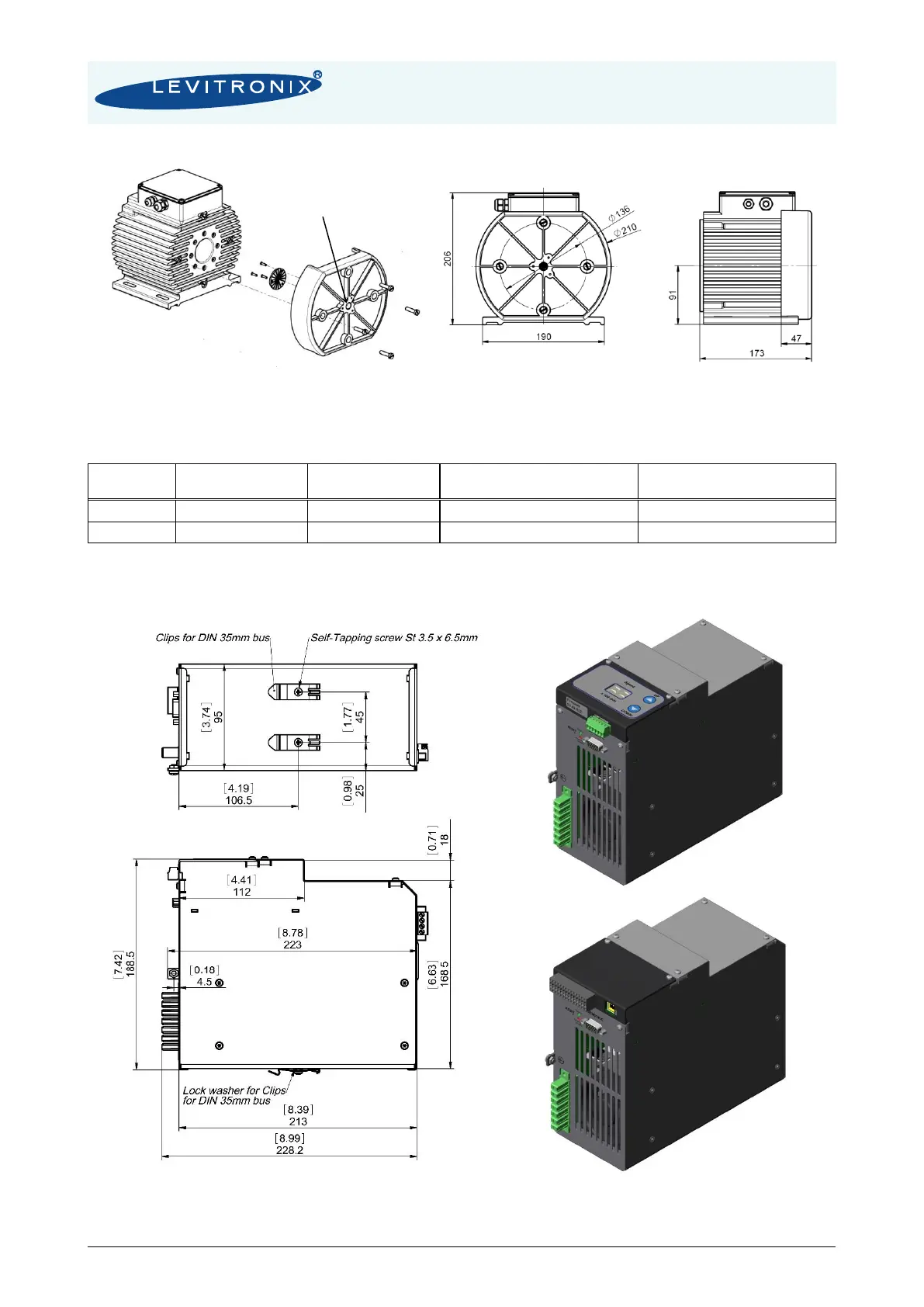

Figure 10: Basic dimensions (in mm and [inch]) Motor LPM-2000
with Air Cooling Module ACM-4.2
(Same basic dimenions for ACM-4.3)
Cable
Jacket
Cable OD
Motor Sensor
Cable OD
Motor Power
Minimum Bending Radius
Permanent Installation
Minimum Bending Radius
Sometimes Moved
FEP
6.60 mm
8.40 mm
7x Cable OD
15 x Cable OD
PVC
7.20 mm
11.1 mm
5x Cable OD
11 x Cable OD
Table 6: Specifications for min. bending radius of motor and adaptor cables for LPM-2000
Note: If not mentioned explicitly all the cables are not suited for constant dynamic bending and movement!
Figure 11: Basic dimensions (in mm and [inch]) of LPC-2000.1/2-01 controllers
Controller
LPC-2000.2-xx
Controller
LPC-2000.1-xx
Air Connection Port:

