4.4 Mechanical Installation of Adaptor/Extension Cables
For connecting the motor to the controller the adaptor cables MCAP-2000.x (for power cable) and MCAS-
600.x (for sensor cable) shall be used (see Table 3 for adaptor cables). For the cables which use an M23
threaded metallic Hummel connector type, check the connection according to the following pictures:

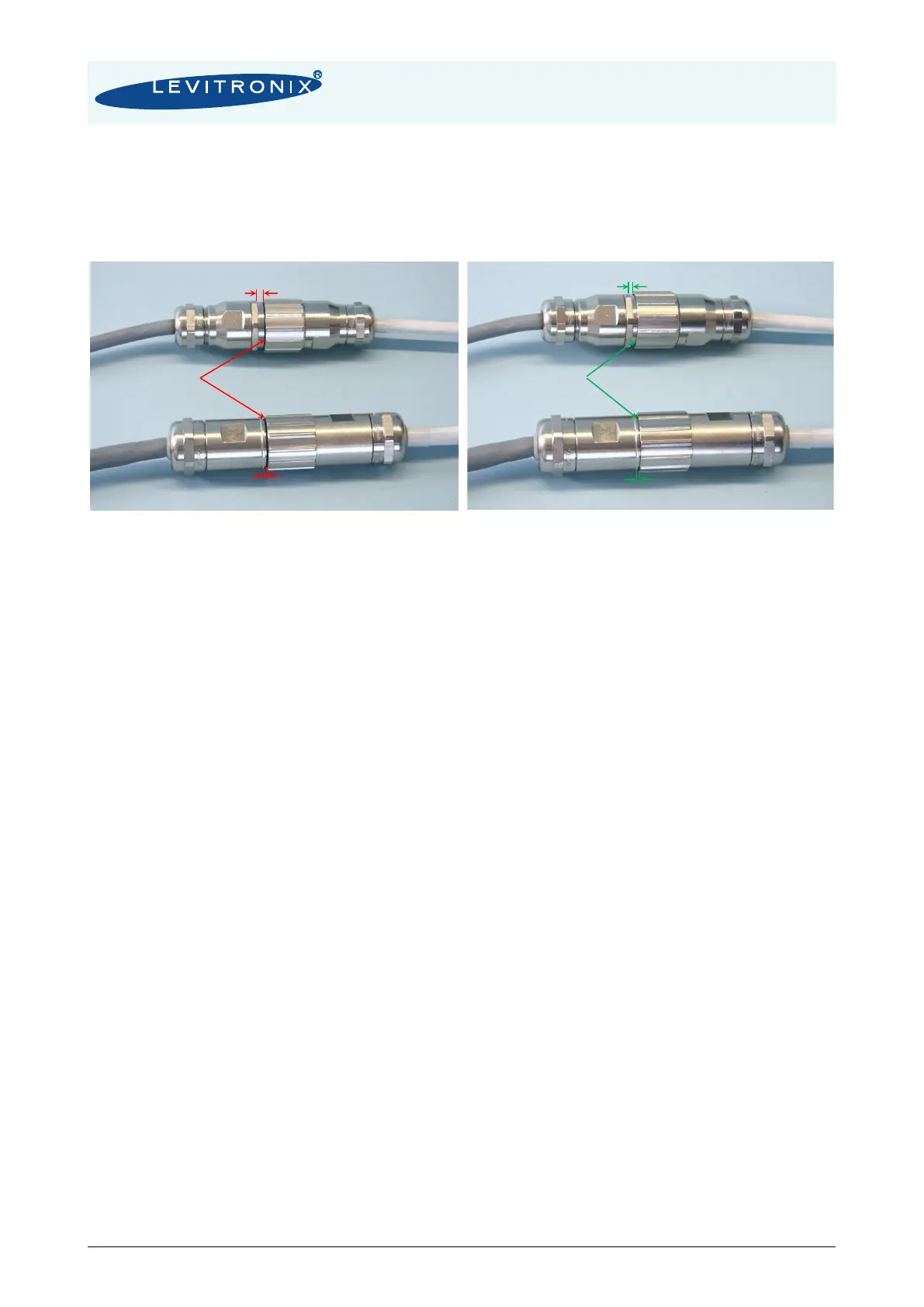

Figure 33: Wrong and correct Hummel connector type assembly Operation
O-Ring visible
Wrong Connection!
O-Ring not visible
Correct Connection!
Gap > 2 mm
Sensor Cable
of Motor
Power Cable
of Motor
Gap > 1 mm
Gap  1 mm
Gap  2 mm
Sensor
Adaptor Cable
Power
Adaptor Cable
