2.7 Basic Dimensions of Main Components

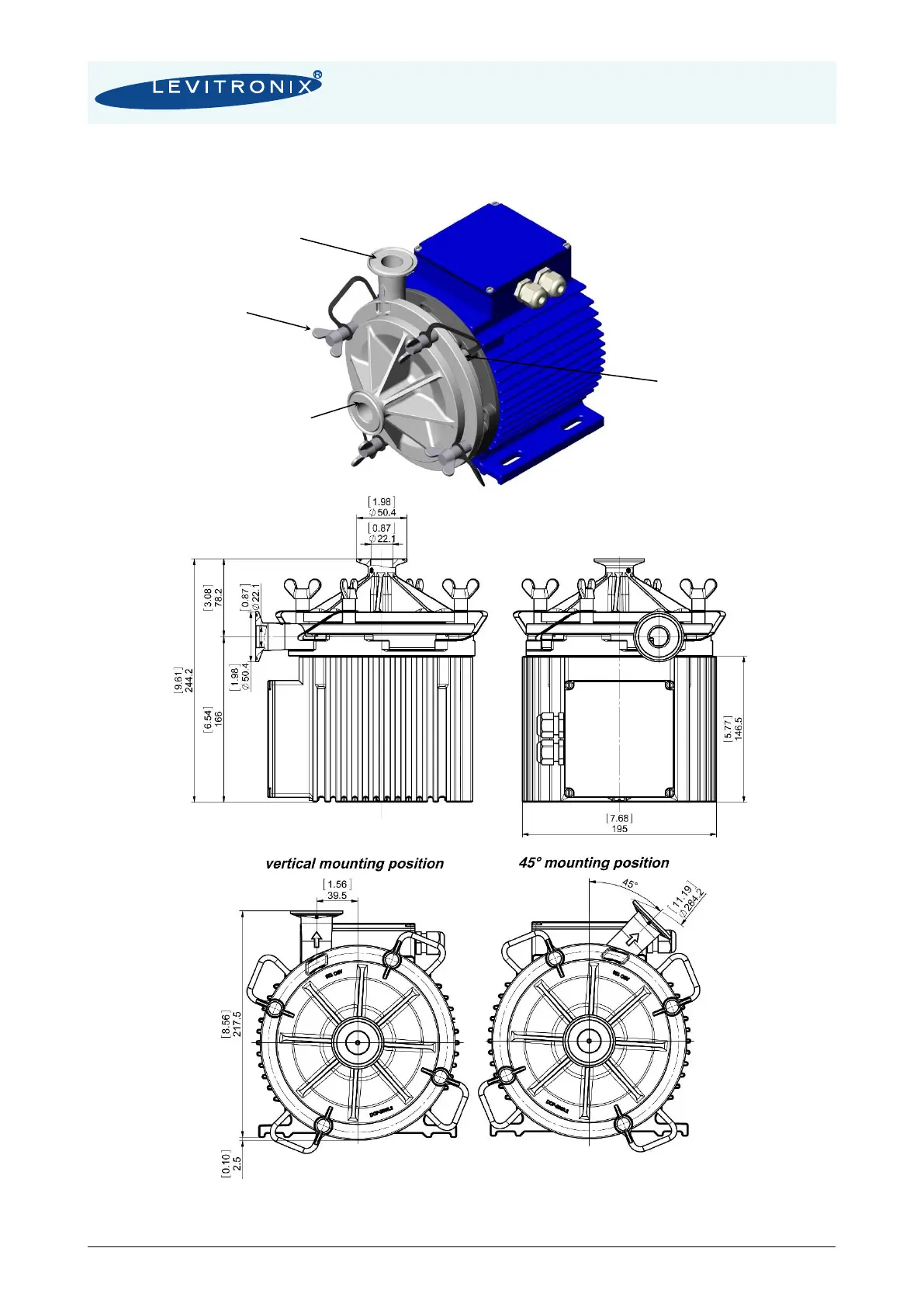

Figure 9: Basic dimensions (in mm and [inch]) of motor LPM-2000.x with pump head DCP-2000.2
(for other configurations refer to according drawings)
Manual Screws (M8)
Inlet

ASME BPE-2009
ID = 22.1mm
Outlet

ASME BPE-2009
ID = 22.1mm
4pcs M8x25mm Inox A4
(for socket fixation)
