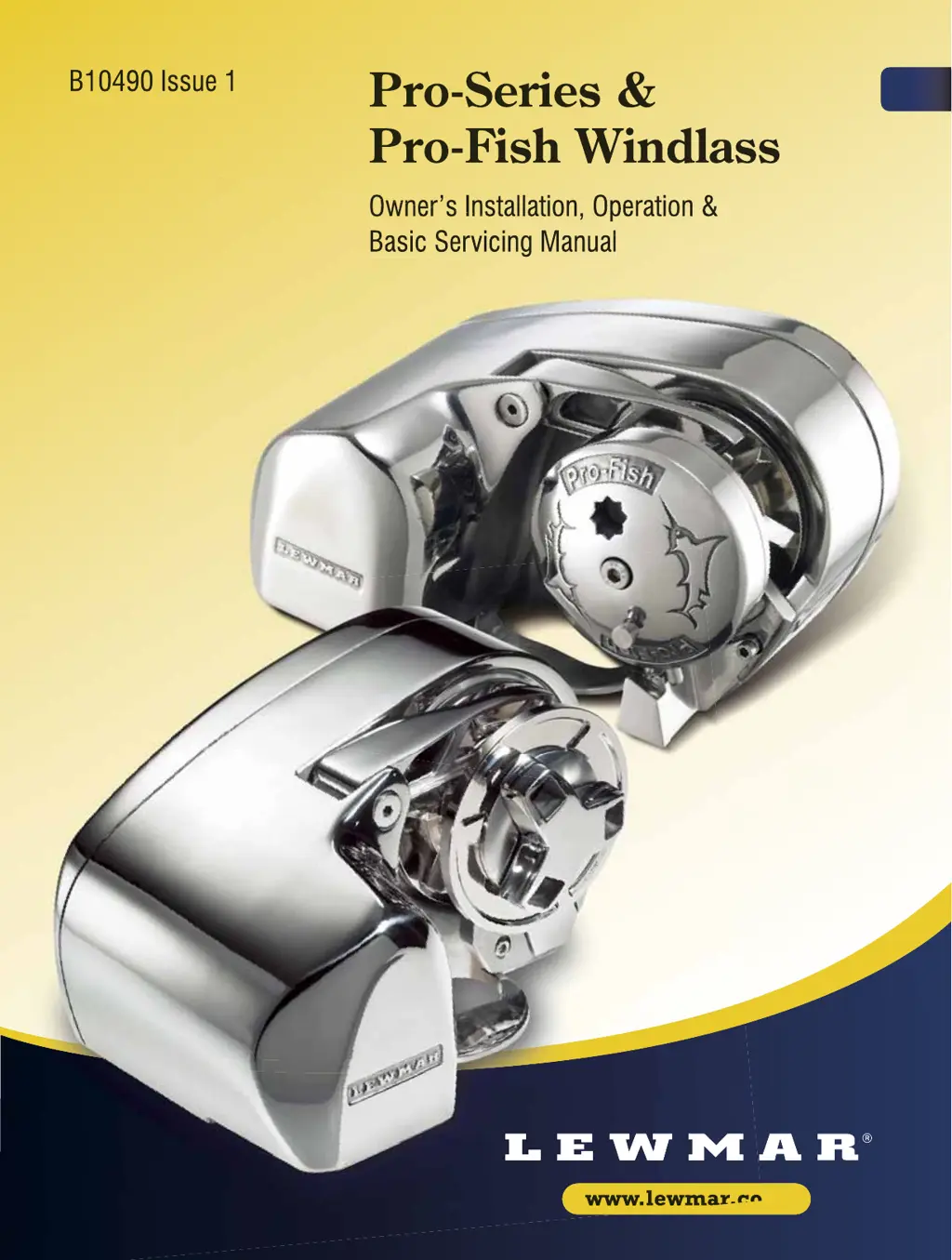

Lewmar Pro-Fish 1000 - User Manual

Questions and Answers

C
costaheidiAug 9, 2025
Why is my Lewmar Pro-Fish 1000 operating sluggishly?
- C
  Christine MooreAug 9, 2025
  If your Lewmar Marine Equipment is operating sluggishly, several factors could be at play. First, check if the windlass is overloaded and ease the load. Ensure the battery is well-charged. If the issue persists, measure the voltage across the motor leads while the windlass is on. A significant voltage drop indicates undersized or corroded cables, poor connections, or resistance in the battery isolation switch or solenoid. Finally, verify that the voltage is correct; if it is, the motor may be defective and require replacement.
A
Antonio MyersAug 17, 2025
What to do if my Lewmar Marine Equipment fails to operate?
- J
  joseph54Aug 17, 2025
  If your Lewmar Marine Equipment fails to operate, begin by checking for voltage at the input terminals of the contactor and switch(es). If there's no voltage, inspect the circuit breaker/isolator switch and any fuses. Next, while operating the switch, check for voltage at the positive switch terminal on the solenoid. If there's no voltage, the switch or its wiring is likely defective. If voltage is present, keep the switch activated and check for voltage at the main output terminal on the contactor. If there's no voltage, inspect the contactor coil ground circuit; if it's okay, replace the contactor. Finally, check the voltage at the motor. If voltage is present but the motor doesn't run, the motor is defective.
M
Mark BraunAug 25, 2025
How to stop anchor rode paying out independently on Lewmar Marine Equipment?
- J
  Jason SingletonAug 26, 2025
  If the anchor rode on your Lewmar Marine Equipment pays out independently when the windlass is not in use, tighten the clutch nut using the provided tool. Always secure the anchor rode independently of the windlass when it is not being actively used for deployment or retrieval.
A
Ashley BlackSep 1, 2025
What to do if Lewmar Pro-Fish 1000 Marine Equipment (Pro-Fish) anchor rode pays out independently?
- R
  ryancarpenterSep 1, 2025
  If the anchor rode on your Lewmar Marine Equipment (Pro-Fish model) pays out independently while the windlass is not in use, briefly operate the UP button to fully re-engage the internal clutch mechanism.

Summary

Safety Notices

General Safety

Essential safety precautions before installing and operating the windlass.

Fitting Safety

Guidelines for safe installation, including consulting manufacturers and ensuring proper mounting.

Electrical Safety

Precautions for safe electrical installation, including switching off power and seeking expert advice.

Installation

Specifications

Fitting the Windlass to the Deck

Instructions and considerations for securely mounting the windlass onto the boat's deck.

Electrical Wiring Installation

Electric Cable Selection

Recommendations for selecting appropriate cable size for windlass current draw and voltage drop.

Wiring

Guidelines for electrical wiring installation, including cable types and polarity.

Control Switch Installation

Model 700 - 12 V Wiring Diagram

Model 1000 - 12 V Wiring Diagram

Operating Your Windlass

Safety First

Critical safety advice to prevent personal injury during windlass operation.

Use of Clutch

Letting Go Under Gravity

Letting Go Under Power

Hauling In

Manual Recovery

Operating Tips

Dismantling Procedures

Gypsy Replacement (Pro-Series)

Gypsy Replacement (Pro-Fish)

Control Arm Replacement

Gypsy Drive Shaft Replacement & Lubrication

Electric Motor Replacement

Troubleshooting

Anchor Rode Payout Issues

Troubleshooting steps for anchor rode paying out independently when the windlass is not in use.

Electrical Troubleshooting

Diagnostic charts for resolving electrical problems with the windlass.

Lewmar Pro-Fish 1000 Specifications

General

Motor Type	Permanent Magnet
Voltage	12V
Max. Pull	1000kg (2205lb)
Rope Size	1/2 inch (12-14mm)
Chain Size	1/4 inch (6-8mm)
Weight	8.2 kg
Line Capacity	Rope: 100m
Max. Pull (Power)	1000kg (2205lb)
