Lewmar Pro-Series/Fish windlass ref B10490 iss.2 | 7

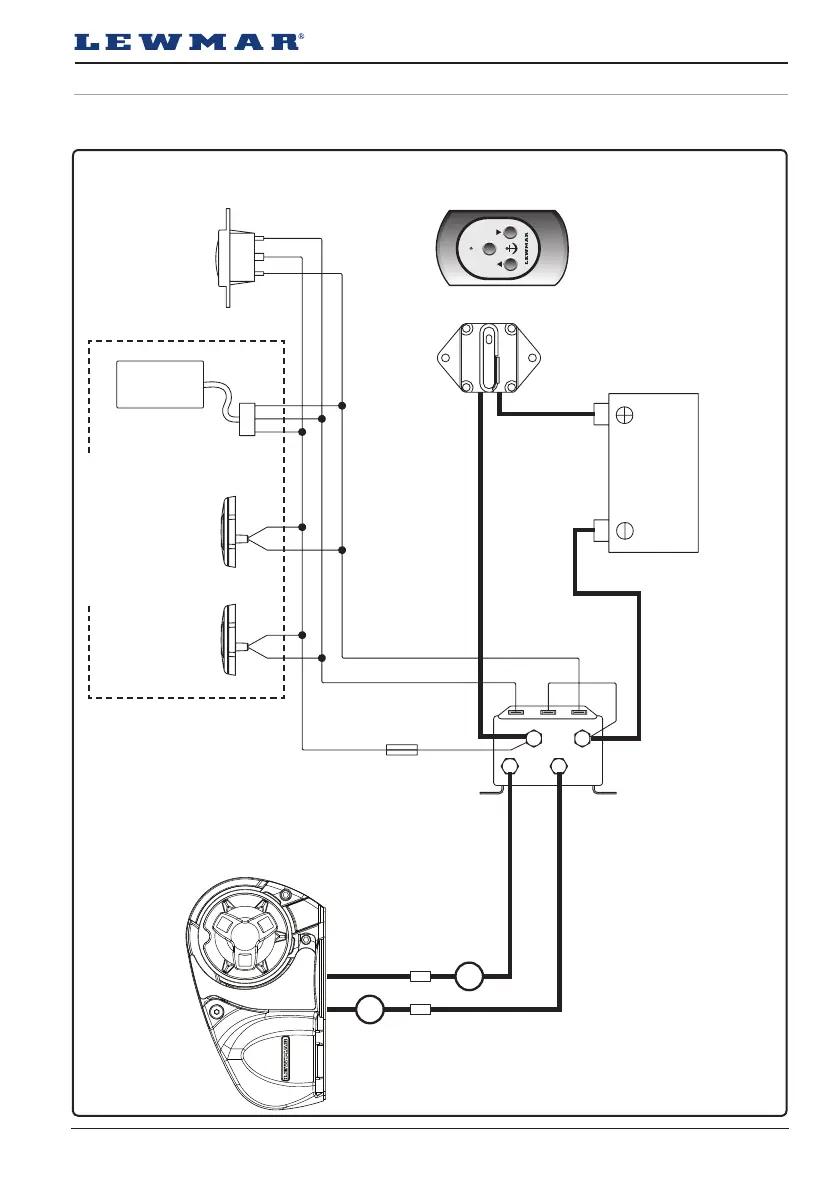

5.4 Wiring diagram using contactor provided (Part No 68000939)
Installation instructions are supplied separately with any accessories.
ON
A
B
Electric Switches
(See www.lewmar.com)
UP DOWN
Remote Handheld Control
(See www.lewmar.com)
Rocker Switch
(68000593)
UP DOWN
Circuit Breaker (See § 4.2)
Battery 12 VDC
Contactor (68000939)
Fuse 3 A
Cable Colours A = Black B = Red Switch wire thickness: 1.5 mm2 (16 AWG)
Optional accessories
Optional Wireless
Control Available
(See § 5.3)
