Lewmar Pro-Series/Fish windlass ref B10490 iss.2 | 9

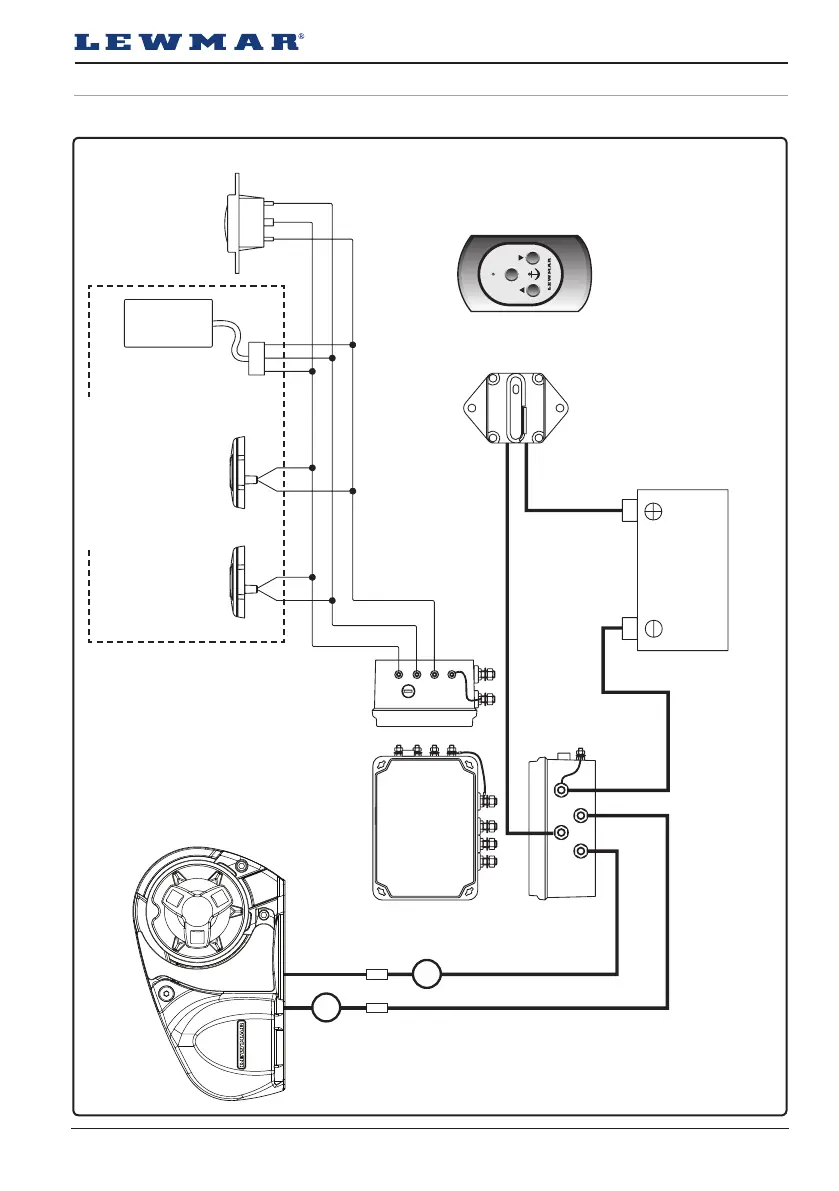

5.6 Wiring diagram if a pre-wired control box (Part No 68000963) is used
Installation instructions are supplied separately with any accessories.
ON
A
B
Pre-Wired
Control Box
(68000963)
Rocker Switch
(68000593)
UP DOWN
Remote Handheld Control
(See www.lewmar.com)
Electric Switches
(See www.lewmar.com)
UP DOWN
Circuit Breaker
(See § 4.2)
Battery
12 VDC
Cable Colours A = Black B = Red Switch wire thickness: 1.5 mm
2
(16 AWG)
Optional accessories
Optional Wireless
Control Available
(See § 5.3)
