10
MODEL
CURRENT DRAW AT
WORKING LOAD
BREAKER SUPPLIED AMPs
CSA TO MEET ISO 10133
ANNEX A FOR 20 M
AWG TO MEET
ABYC E11 FOR L= 66 FEET
VX1 300 66 50 25 4
VX1 500 112 90 35 2
VX2 12V 120 90 35 1
VX2 24V 60 50 10 7
VX2+ 12V 131 110 50 1
VX2+24V 74 90 16 6
VX3 12V 132 110 50 1
VX3 24V 70 90 10 7
WARNING!
Isolate the windlass using
circuit breaker/isolator.
For safety and performance Lewmar recommends the use of matched Lewmar anchor rodes.

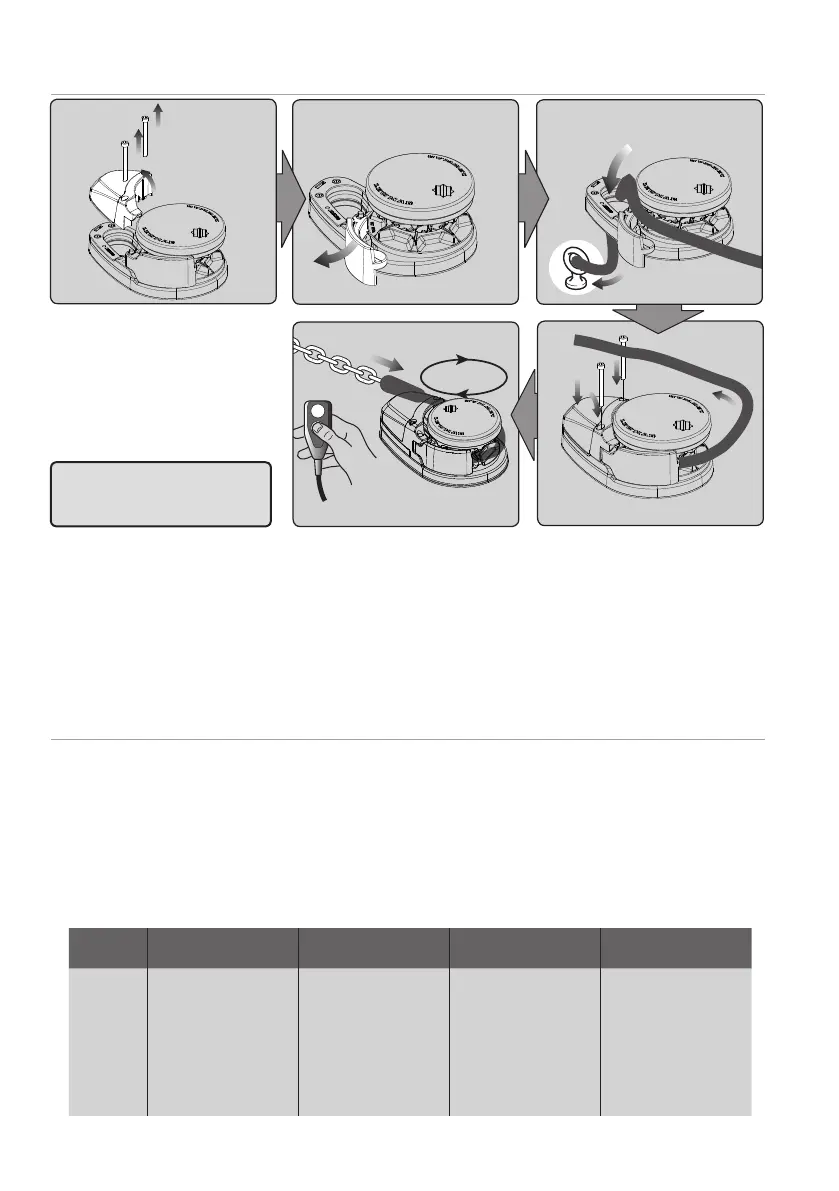

1. Remove cover.
2. Pull out control arm.
3. Feed anchor rope/chain into entry hole. Tie off to suitable strong point.
4. Replace cover. Release control arm and wrap rope/chain around gypsy.
5. Power load rest of anchor rope/chain.
3.10 Loading rope/chain VX2/3
4. Electrical wiring
4.1 Electric cable selection
Installation of this product should meet the regulations and standards or codes of practice relevant to the cra
to which it is being fitted. As a minimum the installer should conform ISO 10133.
Lewmar recommends the installer use cable with insulation rated at 90°C or higher.
Length = Length of cable from battery ‘+’ terminal and back to battery ‘-’ terminal including breaker and
switch gear if fitted
Cable size guide given is for guidance only.
It is the responsibility of the installer to confirm the capacity and voltage drop for the installation. If in any doubt,
contact your local marine electrician.
