Lewmar VX Series User Manual

Ø 67
Ø 100
3 HOLES Ø 10
5 HOLES Ø 15
ANCHOR RODE CENTRELINE
BASE MATT OUTLINE
BOW OF BOAT
MODEL
CURRENT
DRAW
AT WORK LOAD
TOTAL WEIGHT
GYPSY ONLY
TOTAL WEIGHT
GYPSY/DRUM
CIRCUIT BREAKER
A KG LB KG LB A
VX1
66 12.5 28 13.5 30 50
VX1
126 12.5 28 13.5 30 70
VX1L
40 6.0 13.5 7.0 15.4 50
VX1L
58 6.0 13.5 7.0 15.4 70
VX2
120 13.9 31 14.9 33 90
VX2
60 13.9 31 14.9 33 50
VX2+
131 16.1 35 17.1 38 110
VX2+
74 16.1 35 17.1 38 90
VX3
132 16.1 35 17.1 38 110
VX3
70 16.1 35 17.1 38 90
MODEL
POWER
OPTION
MOTOR TYPICAL MAX. PULL MAXIMUM LINE SPEED TYPICAL WORKING LOAD
V W KG LB M/MIN FT/MIN KG LB
VX1
12 300 400 882 25 82 100 220
VX1
12 500 675 1488 25 82 169 373
VX1L
12 500 650 1433 20 60 160 352
VX1L
12 800 920 2028 21 63 230 507
VX2
12 700 850 1874 29 95 213 470
VX2
24 900 850 1874 29 95 213 470
VX2+
12 1000 1025 2260 39 128 257 567
VX2+
24 1000 1025 2260 39 128 257 567
VX3
12 1500 1175 2590 40 131 294 648
VX3
24 1500 1175 2590 40 131 294 648
*Values tested at +/- 10% on 12/24V system typical of electric systems installed on boats

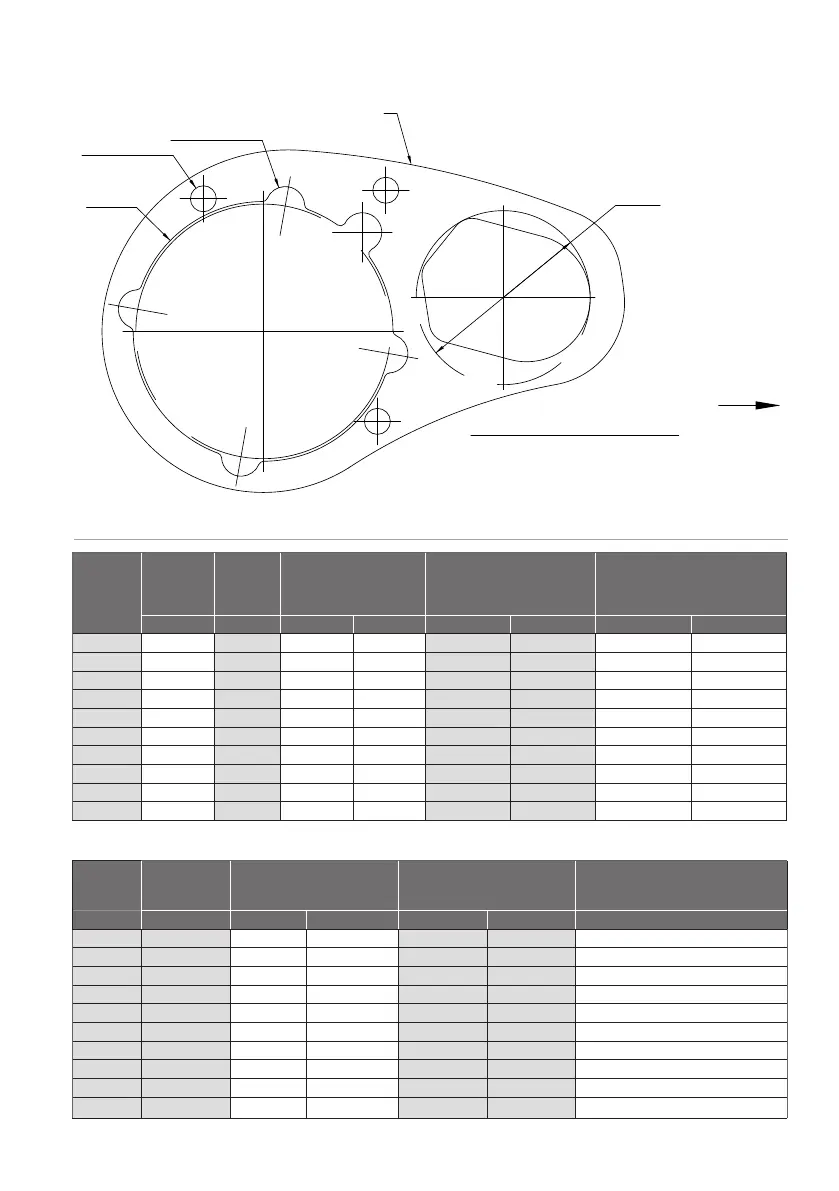

VX1L Deck Mounting Detail
8.4 Electric specifications
