Lewmar VX Series - Deck Mounting Templates

32
Ø 67
4 HOLES Ø 10
Ø 14
Ø 40
Ø 18
ANCHOR RODE CENTRELINE
BASE MATTT OUTLINE
BOW OF BOAT
Ø 62
Ø 18
Ø 14
4 HOLES Ø 10
Ø 46
ANCHOR RODE CENTRELINE
BASE MAT OUTLINE
BOW OF BOAT

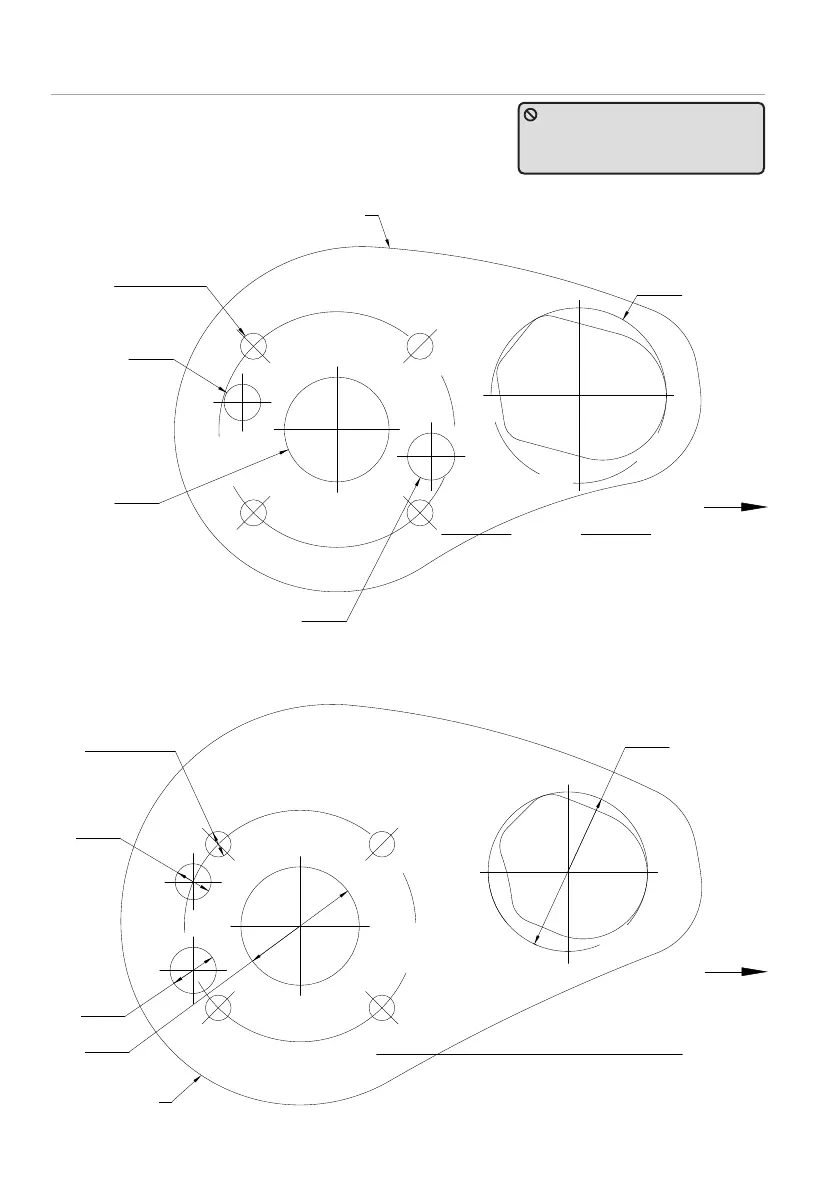

VX1 Deck Mounting Detail
VX2/3 Deck Mounting Detail
8.3 Deck template guide
DO NOT use this template as a
cutter. It is supplied as a guide
only. Check before drilling holes.
