Lewmar VX Series User Manual

4
3.4-1
3. Installation
Gypsies fitted to the VX range of windlasses are ideally suited to handling our factory made Rope/Chain
combination rodes, which consist of rope spliced to a chain tail. See Specifications section for details.
Ropes used must be windlass grade, medium lay nylon. Ropes from different manufacturers have wide variations
in stretch and consistency in diameter. Therefore, rope and chain from other manufacturers may require some
experimentation to determine the optimum size.
Should you have difficulty in matching a gypsy to your chain please consult your local agent or our international
network of distributors.
3.4 Above deck preparation
IMPORTANT - Plan location carefully and allow for the following:
3.2 Accessories
Use only genuine Lewmar parts and accessories to ensure top performance and eliminate the risk of voiding
your warranty.
3.3 Gypsy Suitability
3.1 Basic requirements
Each installation requires the following tools:
Wiring Installation
• Crimping Pliers / Wire Stripper
• Suitable electrical cable and crimp terminals
Windlass Installation
An appropriate marine sealant and the following:

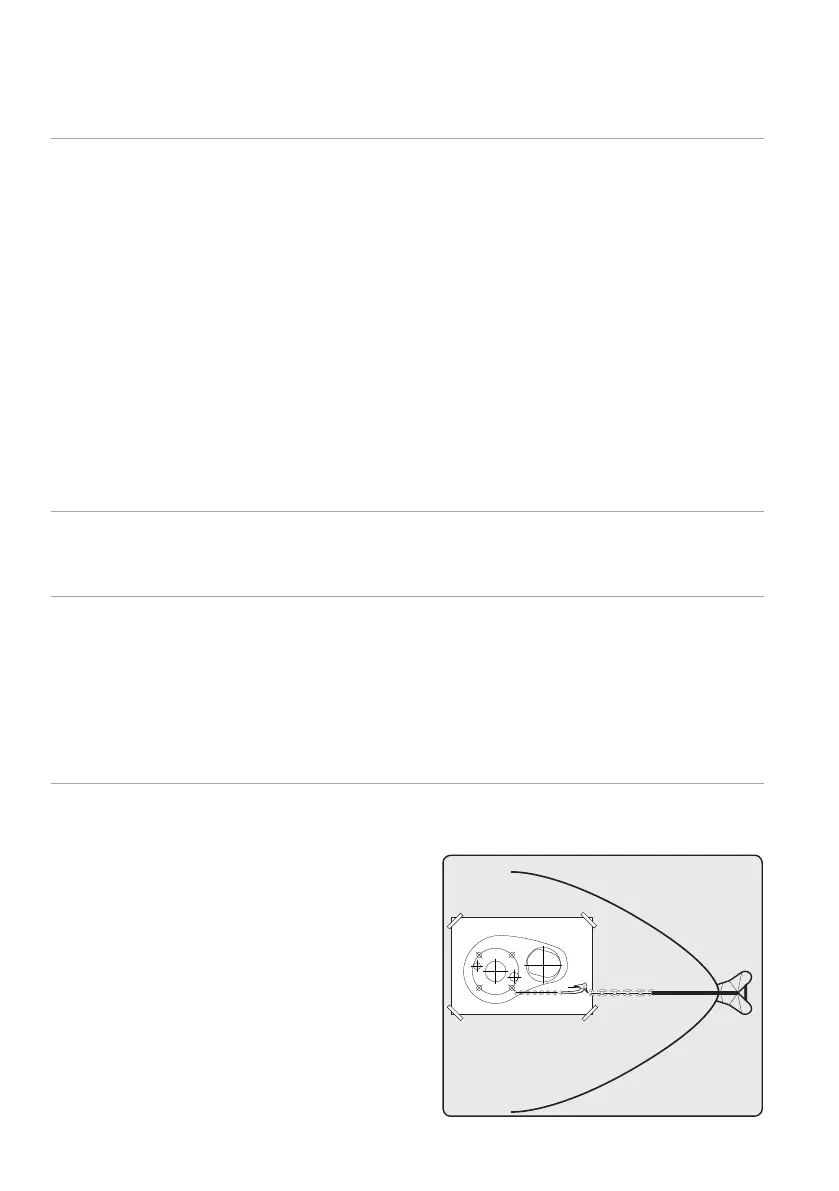

1. Make an accurate drilling template using the
product dimensions from the dimension template
and decide upon a position for it with reference to
the vessel’s bow roller and the chain locker below
and the rotation of manual operating handle.
If possible, select a flat area of deck.
VX 1
• 10 mm (⅜”) Drill
• 14 mm (⁹/₁₆”) Drill
• 18 mm (⁴⁵⁄ ⁶⁴”) Drill
• 40 mm (1 ³⁷⁄ ⁶⁴”) Hole Saw
• 67 mm (2 ¼”)Hole Saw
VX 2/
• 10 mm (⅜”) Drill
• 14 mm (⁹/₁₆”) Drill
• 18 mm (⁴⁵⁄ ⁶⁴”) Drill
• 46 mm (1 ¹³⁄ ¹⁶”) Hole Saw
• 62 mm (2 ⁷⁄ ¹⁶”)Hole Saw
VX 1L
• 10 mm (⅜”) Drill
• 15 mm (¹⁹/₃₂”) Drill
• 67 mm (2 ¼”) Hole Saw
• 100 mm (3 ¹⁵/₁₆”)Hole Saw
