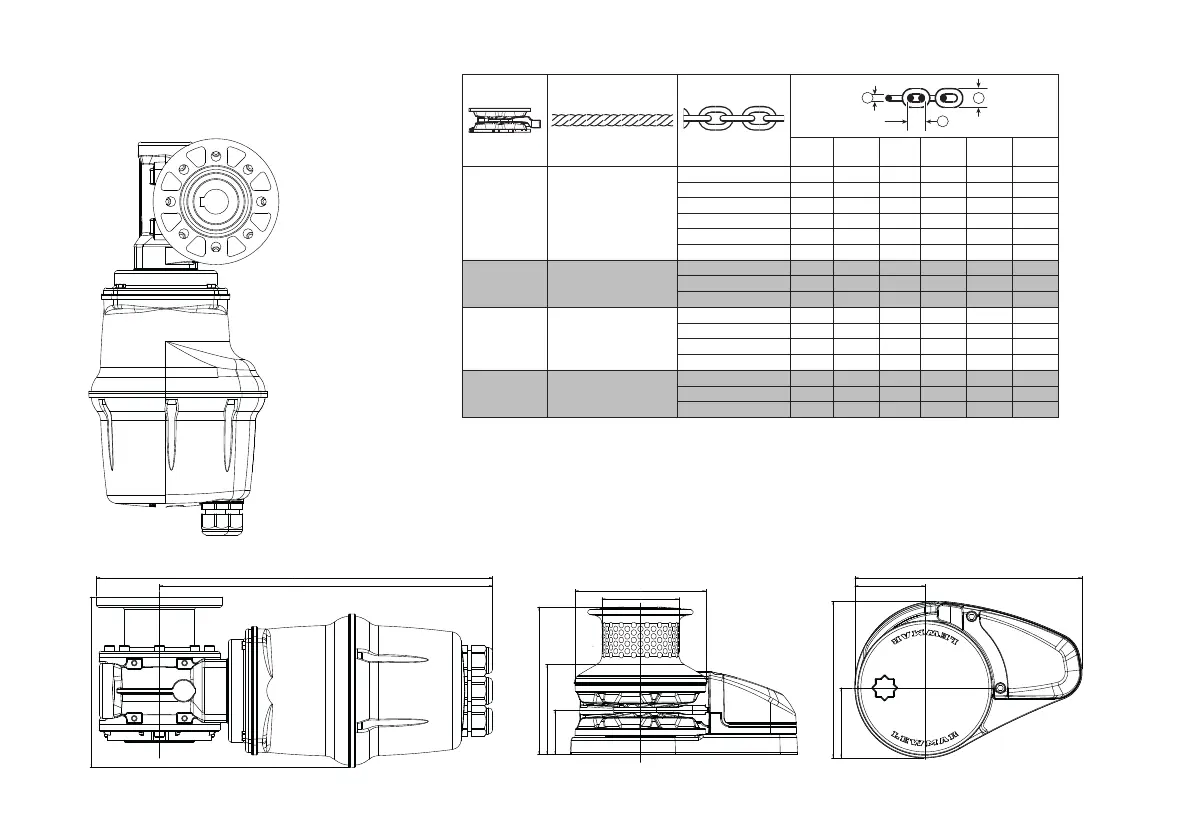

Lewmar VX Series - VX2;3 Dimensions

70
156
70
226
147
44.5
89
Ø 76.5
Ø 130
394
331
169
P
W
D
D
(mm)
D
(inch)
P
(mm)
P
(inch)
W
(mm)
W
(inch)
68120040
12-16 mm (½ - ⅝”)
3 Strand and 8 Plait
6 mm ISO 4565 6 0.236 18 0.709 21.6 0.85
6mm Din766 6 0.236 18.5 0.728 20.4 0.803
7mm ISO 4565 7 0.276 21 0.826 23 0.905
7mm Din766 7 0.276 22 0.866 23.8 0.937
¼” G40 7 0.276 21.3 0.840 24.4 0.962
¼” BBB 7.14 0.281 22.1 0.870 25.2 0.992
68120041
12-16 mm (½ - ⅝”)
3 Strand and 8 Plait
8 mm ISO 4565 8 0.315 24 0.945 28.8 1.134
5/16” G40 8.4 0.329 26.2 1.030 29.7 1.168
8 mm DIN 766 8 0.315 24 0.945 27.2 1.070
68120042
12-16 mm (½ - ⅝”)
3 Strand and 8 Plait
Lewmar 9.5mm G40 9.5 0.374 28 1.102 32 1.260
5/16” Campbell S3 8 0.315 32 1.260 28 1.102
⅜” Campbell S4 10 0.394 29 1.142 35 1.378
10 mm DIN 766 10 0.394 28 1.102 36 1.417
68120043
12-16 mm (½ - ⅝”)
3 Strand and 8 Plait
10 mm ISO 4565 10 0.394 30 1.181 36 1.417
Lewmar 9.5mm G40 9.5 0.374 28 1.102 32 1.260
⅜” Campbell S3 10 0.394 34.5 1.358 34.5 1.358
8.2 VX2/3 Dimensions
