Lexicon MPX 100 User Manual

37

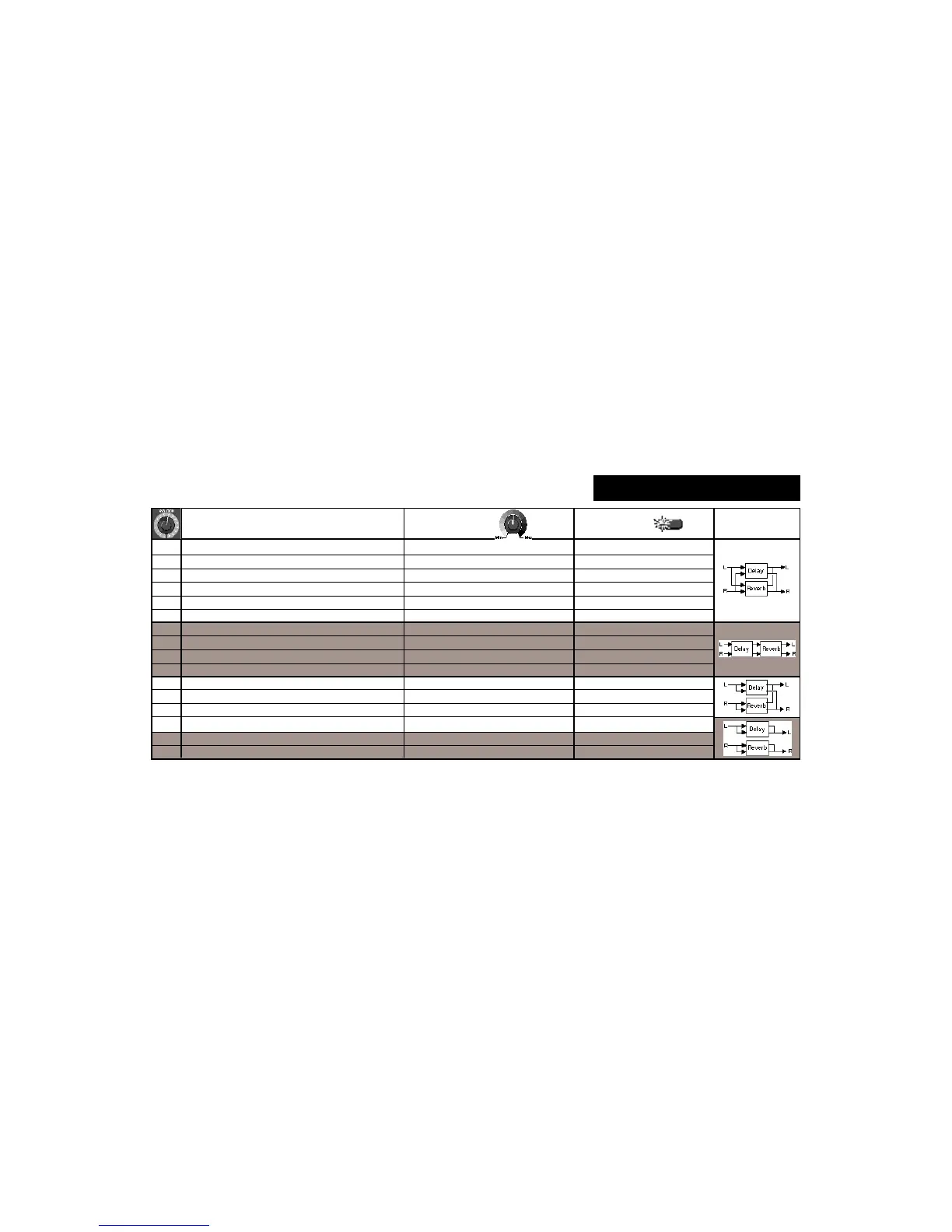

Delay – Reverb
Delay-Reverb VARIATIONs Adjust Tap Routing
1 Stereo 1/4 Note - Small Space Decay Time Delay Time
2 Triplet Shuffle - Medium Space Decay Time Delay Time
3 1/8 Note and Triplet - Large Space Decay Time Delay Time
4 Ping Pong 1/4 Note - Small Space Decay Time Delay Time
5 Triplet Rhythm 1 - Medium Space Decay Time Delay Time
6 Triplet Rhythm 2 - Large Space Decay Time Delay Time
7 Stereo 1/4 Note > Room Decay Time Delay Time
8 1/8 Note and Triplet > Large Space Decay Time Delay Time
9 Triplet Rhythm 1 > Room Decay Time Delay Time
10 Triplet Rhythm 2 > Large Space Decay Time Delay Time
11 Stereo 1/4 Note + Medium Space Decay Time Delay Time
12 Ping Pong 1/4 Note + Large Space Decay Time Delay Time
13 Triplet Rhythm 1 + Medium Space Decay Time Delay Time
14 Triplet Rhythm 2 + Small Space Decay Time Delay Time
15 Mono 1/4 Note / Room Decay Time Delay Time
16 Triplet Rhythm 2 / Large Space Decay Time Delay Time

Lexicon MPX 100 Specifications

Audio Inputs and Outputs

audio input level	-30dBu to +4dBu
audio input impedance	500K unbalanced
audio output level	+8dBu typical
audio output impedance	75Ω for Headphone output

Digital Audio

digital audio output	20-bit Digital S/PDIF
sample rate	44.1kHz
conversion	20 bits A/D, 20 bits D/A

Frequency and Distortion

frequency response	20Hz-20kHz, ±1dB
thd+n	<0.05%, 20Hz-20kHz
dynamic range A/A	>95dB typical, 20Hz-20kHz, unweighted
dynamic range A/D	>100dB typical, 20Hz-20kHz, unweighted
crosstalk	45dB

Power and Environment

power requirements	9VAC wall transformer
operating temperature	32° to 104°F (0° to 40°C)
relative humidity	95% non-condensing

Weight and Dimensions

dimensions	19"W x 1.75"H x 4"D (483 x 45 x 102mm)
weight	2 lbs, 2 oz (0.959kg)
internal audio data path	DSP: 24-bit
