MIDI Operation
MPX 100 MIDI Behavior
The MPX 100 “learns” MIDI Channel, Pro-
gram Change and Continuous Controllers in
its Learn Mode.

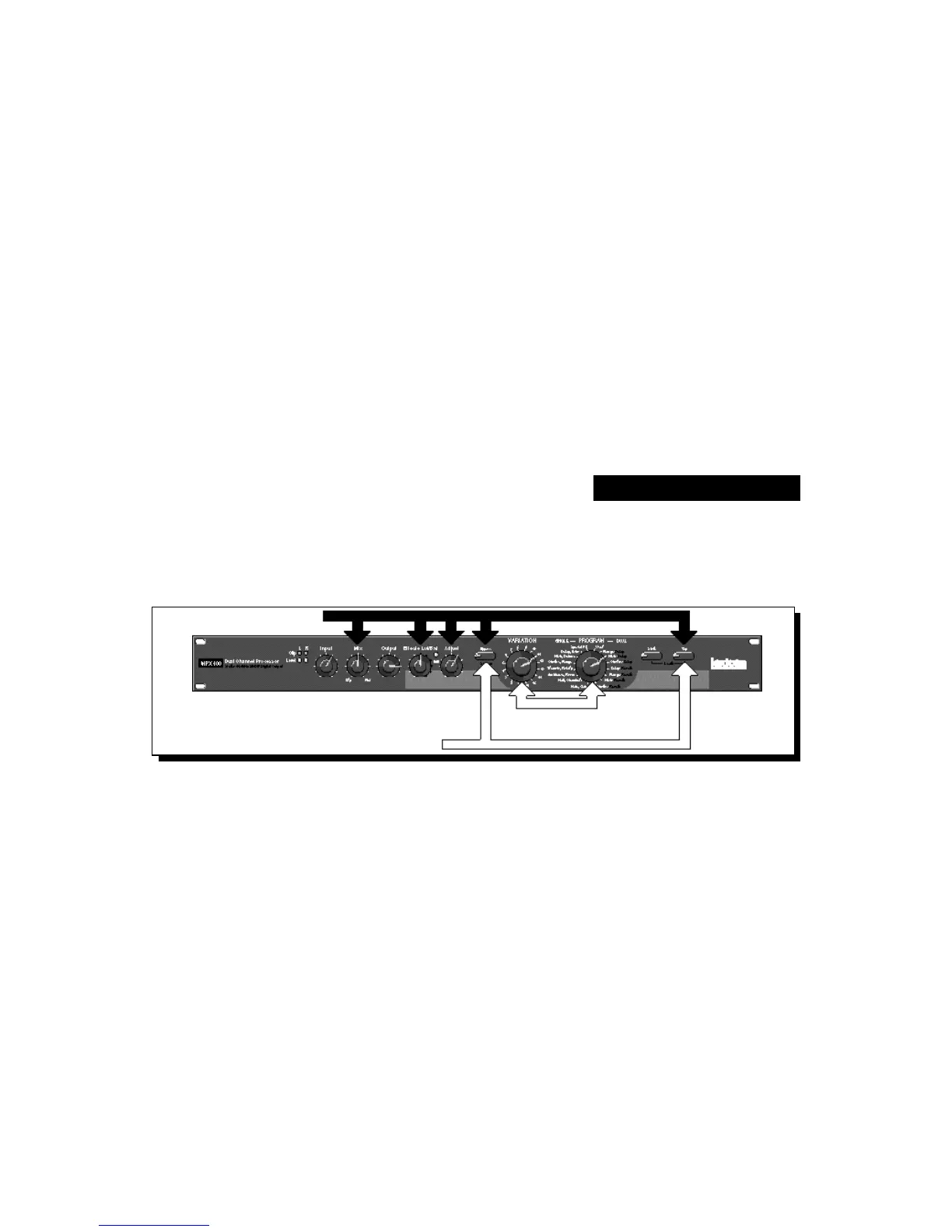

Any of these controls can be patched
to Continuous Controllers.
These buttons can also be
patched to Program Change.
As many as five Learn patches (for the
front panel Mix, Effects Lvl/Bal, Adjust,
Bypass and Tap controls) on as many as
five MIDI Channels are supported.
Program Change messages 0-15 are re-
served for executing program loads on any
learned MIDI Channel — or a separate MIDI
Channel can be selected for program load.
Program Change messages can
also be used to load programs.

Lexicon MPX 100 Specifications

Audio Inputs and Outputs

audio input level	-30dBu to +4dBu
audio input impedance	500K unbalanced
audio output level	+8dBu typical
audio output impedance	75Ω for Headphone output

Digital Audio

digital audio output	20-bit Digital S/PDIF
sample rate	44.1kHz
conversion	20 bits A/D, 20 bits D/A

Frequency and Distortion

frequency response	20Hz-20kHz, ±1dB
thd+n	<0.05%, 20Hz-20kHz
dynamic range A/A	>95dB typical, 20Hz-20kHz, unweighted
dynamic range A/D	>100dB typical, 20Hz-20kHz, unweighted
crosstalk	45dB

Power and Environment

power requirements	9VAC wall transformer
operating temperature	32° to 104°F (0° to 40°C)
relative humidity	95% non-condensing

Weight and Dimensions

dimensions	19"W x 1.75"H x 4"D (483 x 45 x 102mm)
weight	2 lbs, 2 oz (0.959kg)
internal audio data path	DSP: 24-bit
