Lexmark 4513-630 - Duplex Removal

Repair information 4-11
4513-630, -63W, -6EW
Duplex removal
1. Remove the right side cover. See “Right side cover assembly removal” on page 3-62.
2. Remove the LVPS/HVPS. See “LVPS/HVPS removal” on page 3-29.

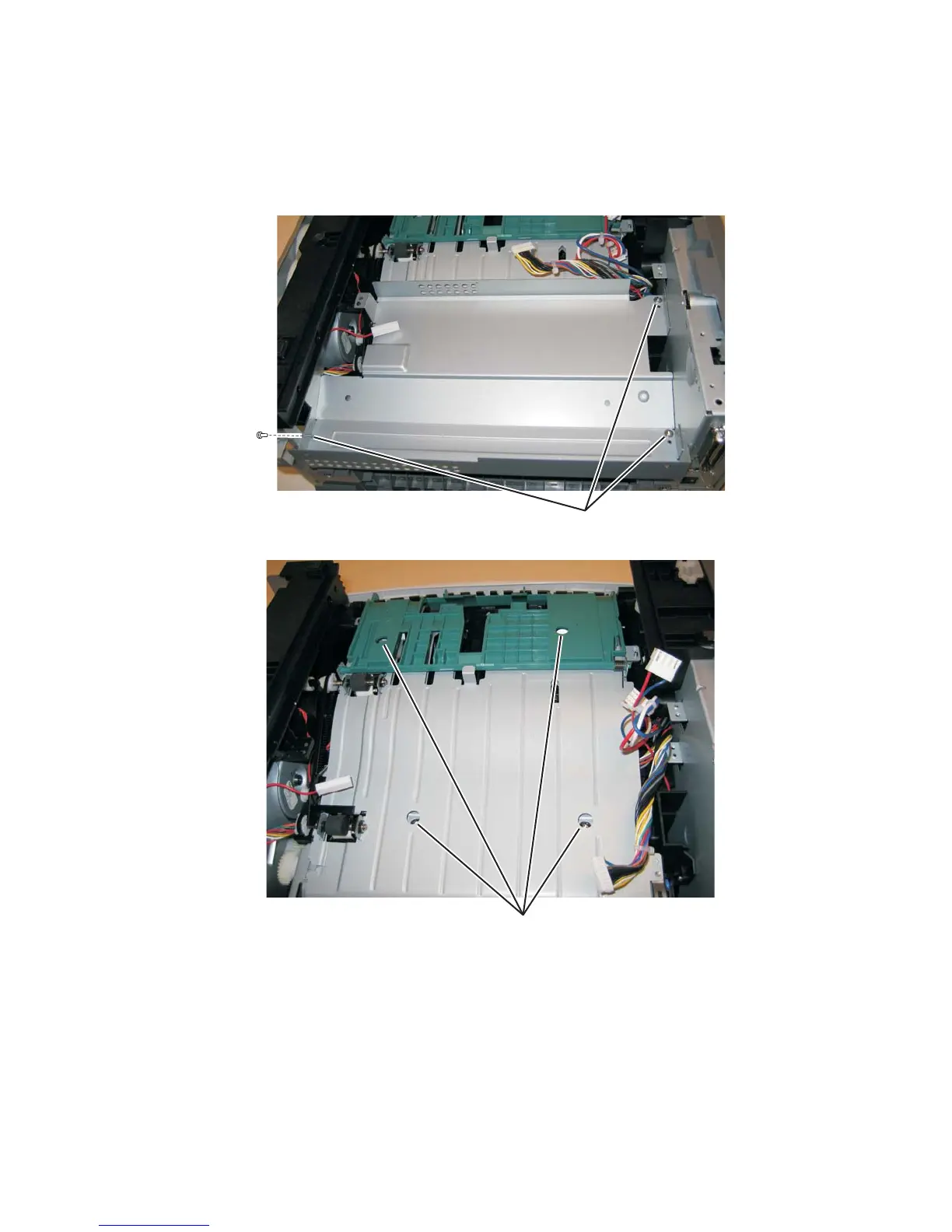

3. Remove the three screws (A) from the shield.
4. Remove the four screws (B) from the duplex.
A
B
