Repair information 4-15
4513-630, -63W, -6EW

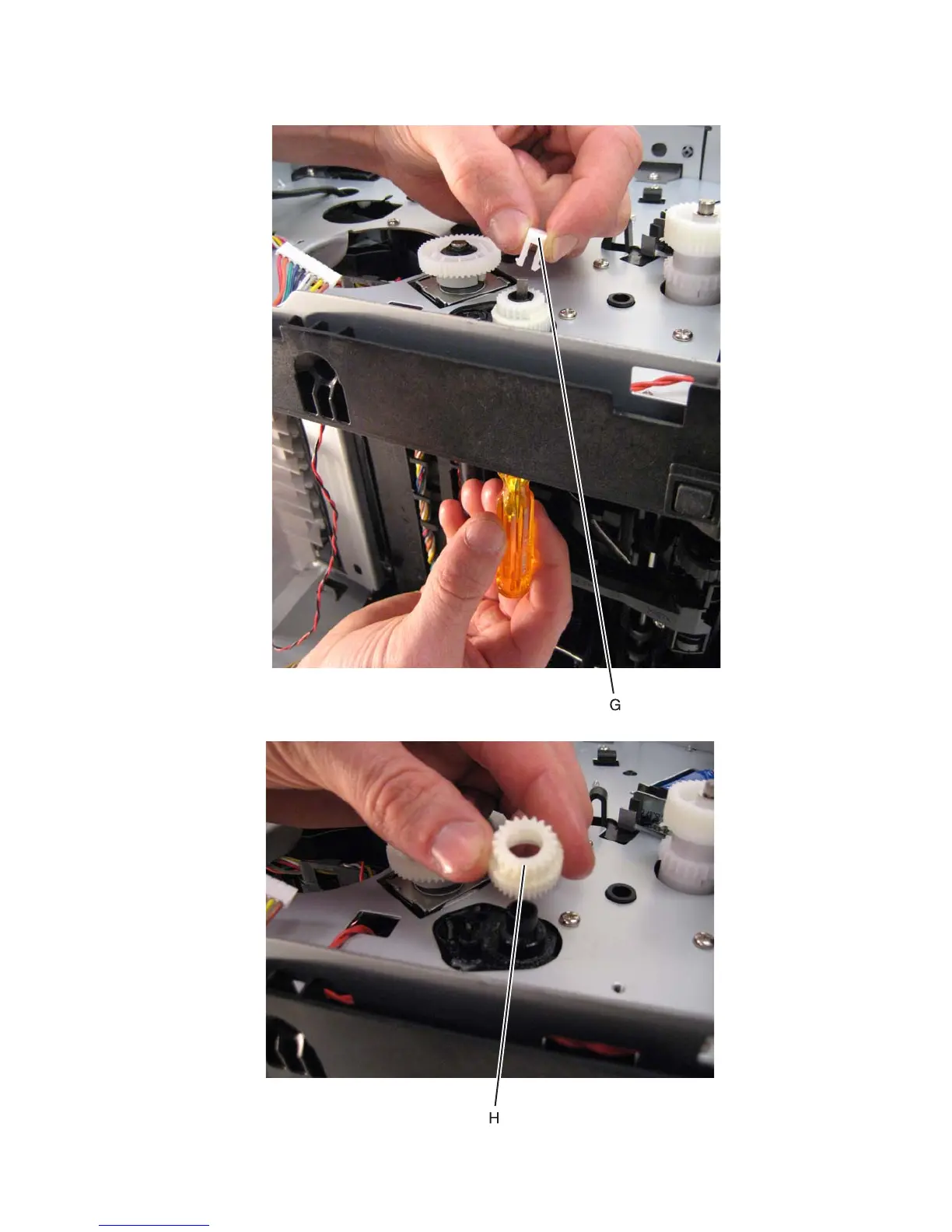

8. Use a screwdriver to pop the retainer clip (G) loose from the gear.
9. Remove the gear (H).
