Repair information 4-33
4513-630, -63W, -6EW

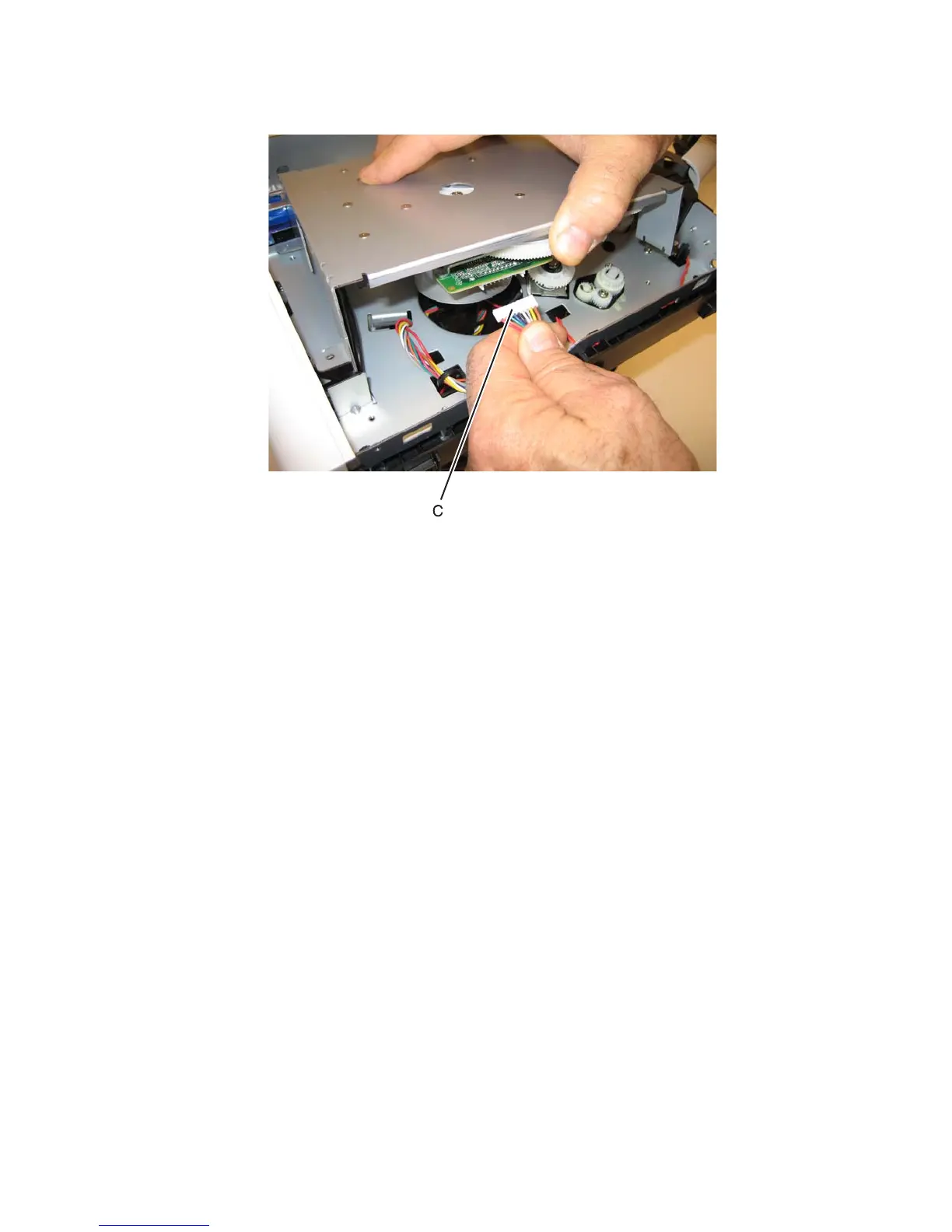

5. Lift the gear drive, and disconnect the main motor gear drive cable (C).
6. Remove the main motor gear drive.
