4511-xxx
4-22 Service Manual
Exit sensor removal (on the fuser)
1. Remove the paper exit guide assembly. See “Paper exit guide
assembly removal” on page 4-46 for more information.
2. Unplug the exit sensor at J17 on the controller card.

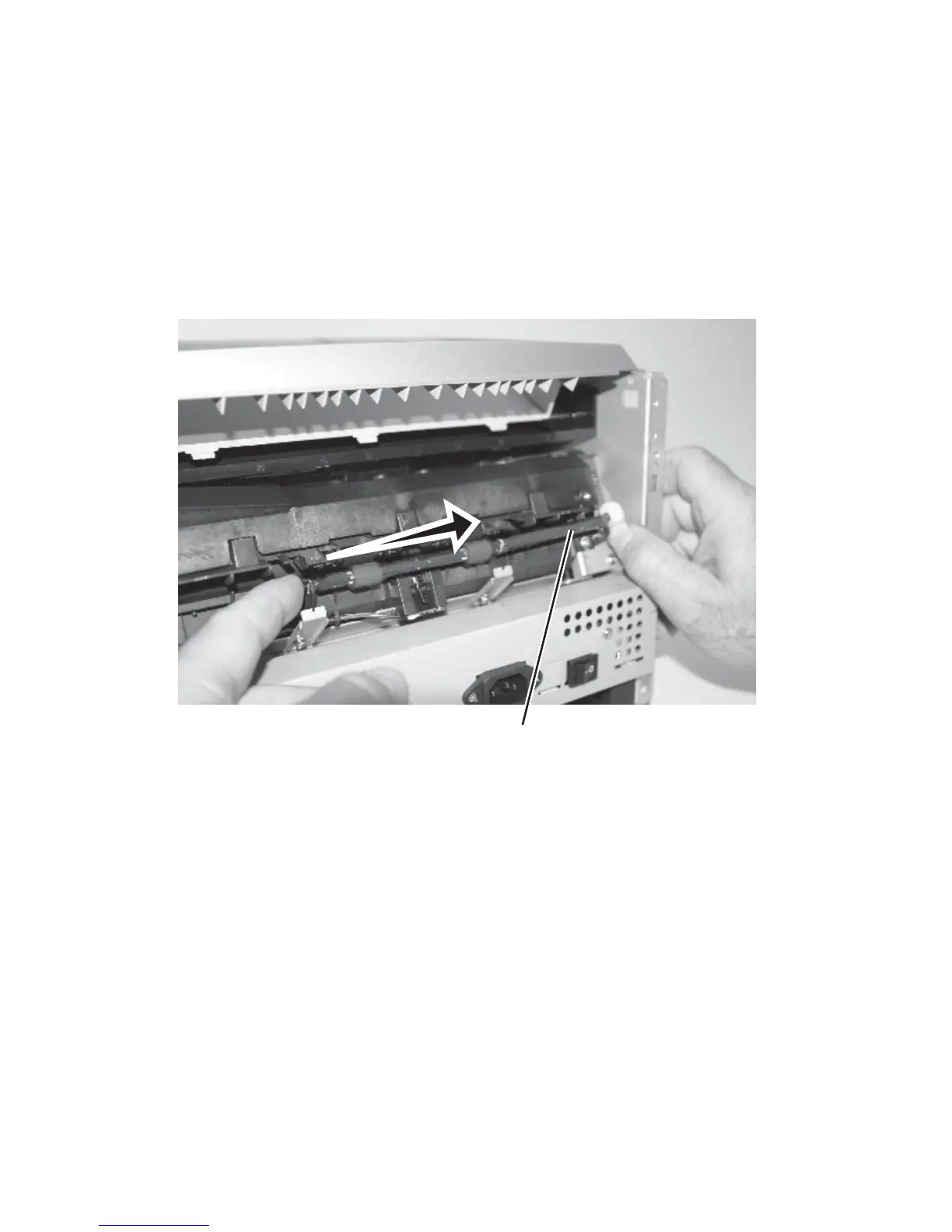

3. Push the shaft (A) to the right using your right thumb against the inside
gear surface and your left index finger against the opposite end of the
shaft.
Warning: There will be some lubricant on the gear and shaft. Be sure
to wipe hands clean with each contact to prevent spreading lubricant to
other areas.
A
