Lexmark E342n - Transport Motor Cable Removal

4511-xxx
Repair information
4-51
Transport motor cable removal
1. Remove the right cover. See “Right side cover
removal” on page 4-12 for more information.
2. Remove the controller card cover. See “Controller
card removal” on page 4-15 for more information.
3. Unplug the transport motor cable at J8 on the controller card.
4. Remove the LVPS/HVPS card assembly. See “LVPS/HVPS card
assembly removal” on page 4-41 for more information.

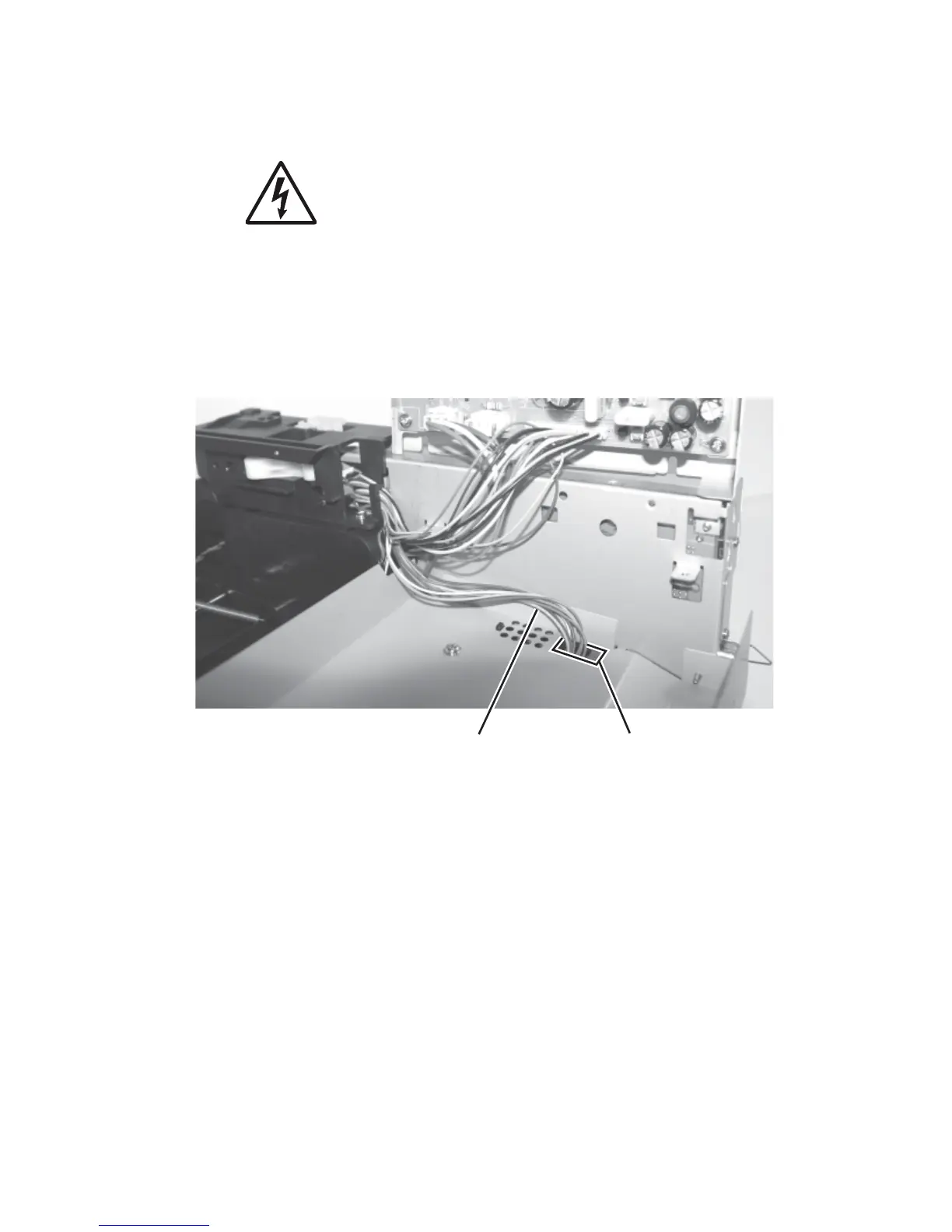

5. Extract the cable (A) through the side frame, leaving it free at the
opening above the LVPS/HVPS (B).
6. Turn the printer over.
7. Remove the fuser. See “Fuser removal” on page 4-28.
8. Extract the cable through the hole and from its retainers behind the
fuser.
9. Unplug the cable at the motor. 30
A B
