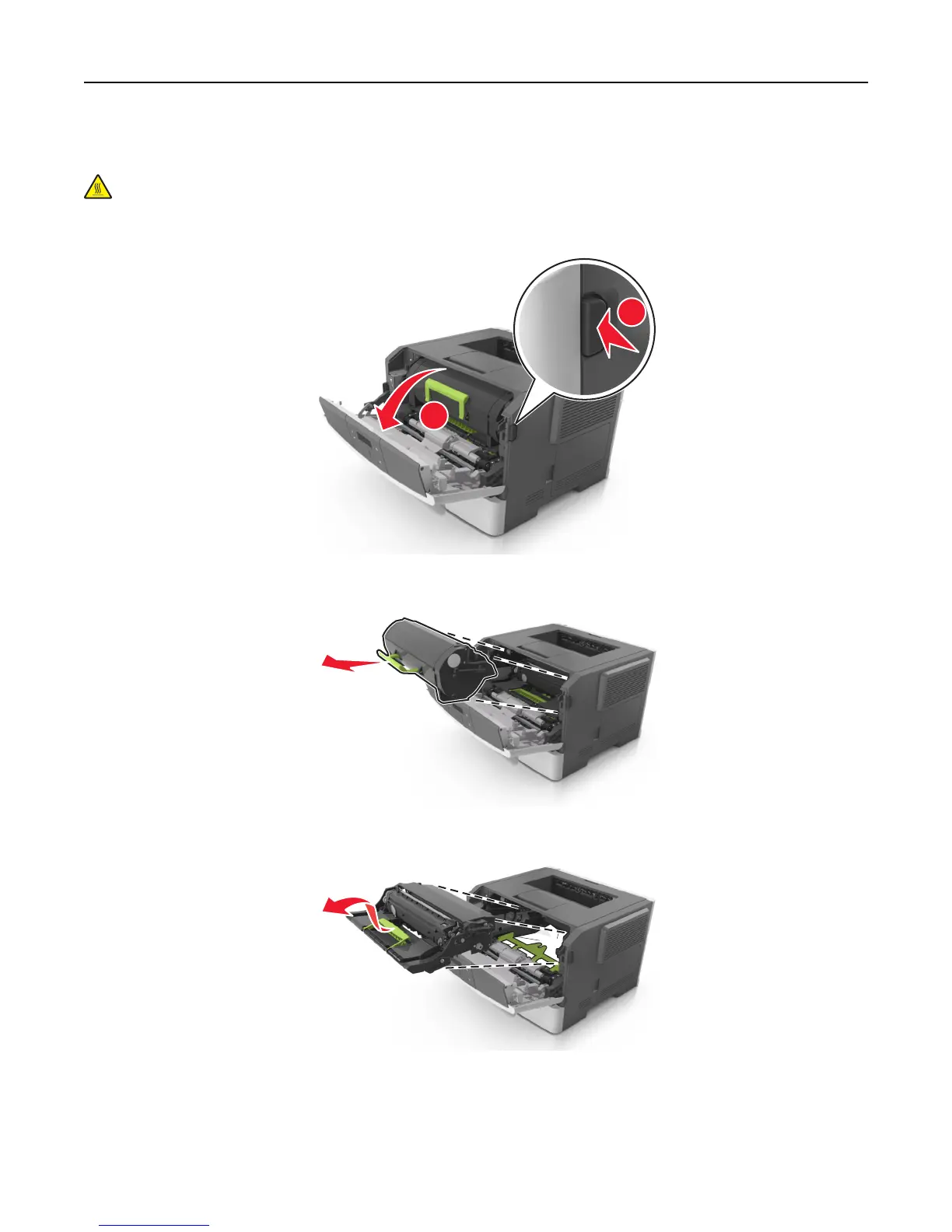

Jam, front door [20y.xx]
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching it.
1 Press the button on the right side of the printer, and then open the front door.
2
1
2 Pull the toner cartridge out using the handle.
3 Lift the green handle, and then pull the imaging unit out of the printer.
Warning—Potential Damage: Do not touch the photoconductor drum. Doing so may affect the print quality of
future print jobs.
Clearing jams 104
