Lexmark MS521 Service Manual

Low Insertion Force (LIF) connector
This FRU contains a Low Insertion Force (LIF) connector. Read the instructions before proceeding.
Warning—Potential Damage: When installing a cable into an LIF connector, care must be taken to avoid
bending the edges of the cables and damaging the contacts on the cables.
Inserting a cable into the LIF connector

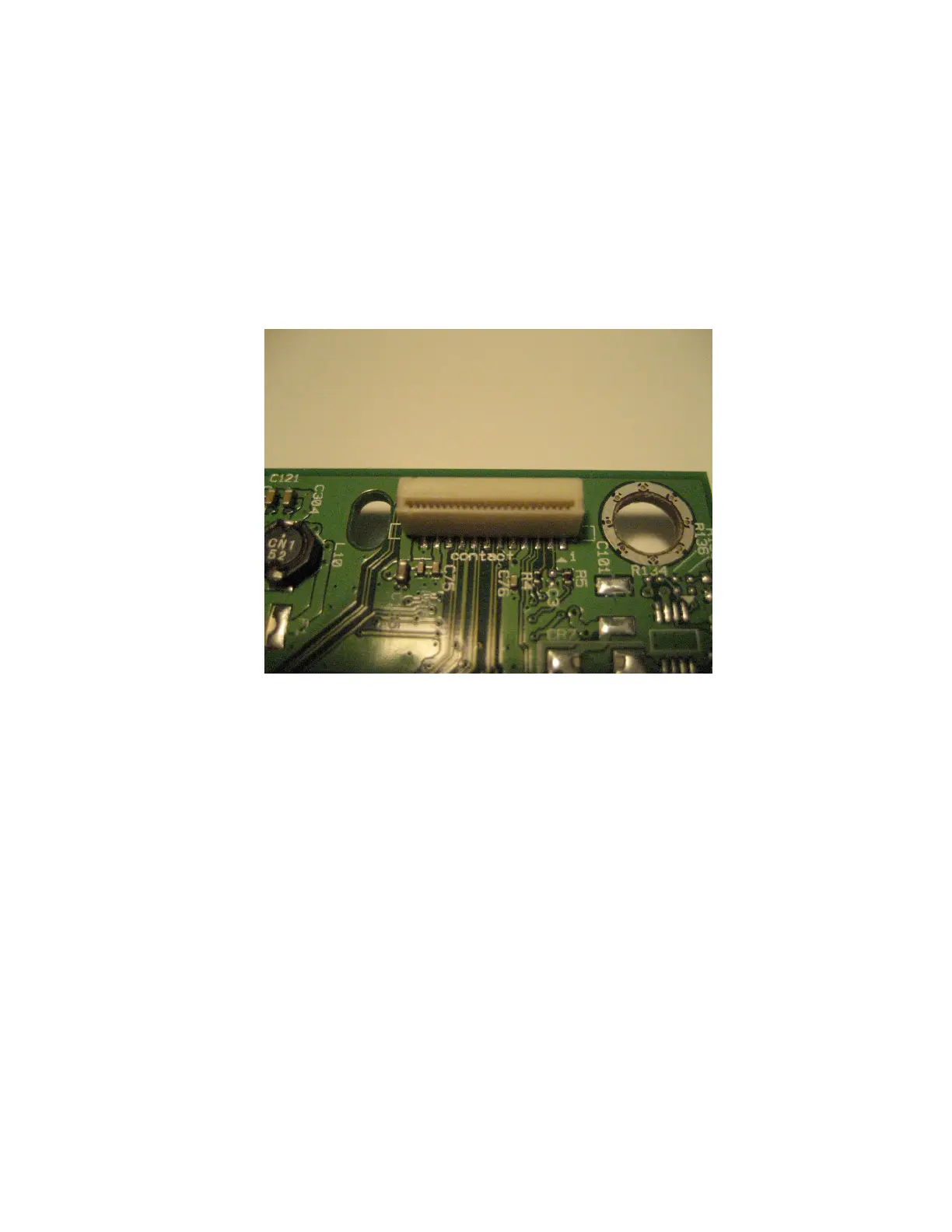

1 Looking at the connector, take note on which side the contacts are located. Many boards will have the word
“contacts” stamped on them to indicate which side of the LIF has the contacts. When looking at the board,
take note that the contacts from the board to the connector are located on the side of the connector with
the contacts.
2 Insert the cable squarely into the connector.
Note: Verify that the cable is installed straight into the connector. If the cable is not installed properly,
then intermittent failures could occur.
4600-830, -835, -895
Parts removal
174

Lexmark MS521 Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 46 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 120, 000 pages
Processor Speed	1 GHz
Standard Output Capacity	250 sheets
Operating System Compatibility	Windows, Mac OS, Linux
Hard Drive	Optional
Recommended Monthly Page Volume	2000 - 15000 pages
Duplex Printing	Standard
Connectivity	USB, Ethernet
Media Types Supported	Paper Labels, Card Stock, Envelopes, Plain Paper, Transparencies
