Lexmark MS911 - X]-Page Jam, Open Doors G, H, and J and Clear Jammed Paper. Leave Paper in Bin. [4 Yy.XX]

• Fuser area
• Below the fuser area
• Duplex area
• Above the duplex area
7 Close door C, and then slide the 3000‑sheet tray back into place.
[x]‑page jam, open doors G, H, and J and
clear jammed paper. Leave paper in
bin. [4yy.xx]

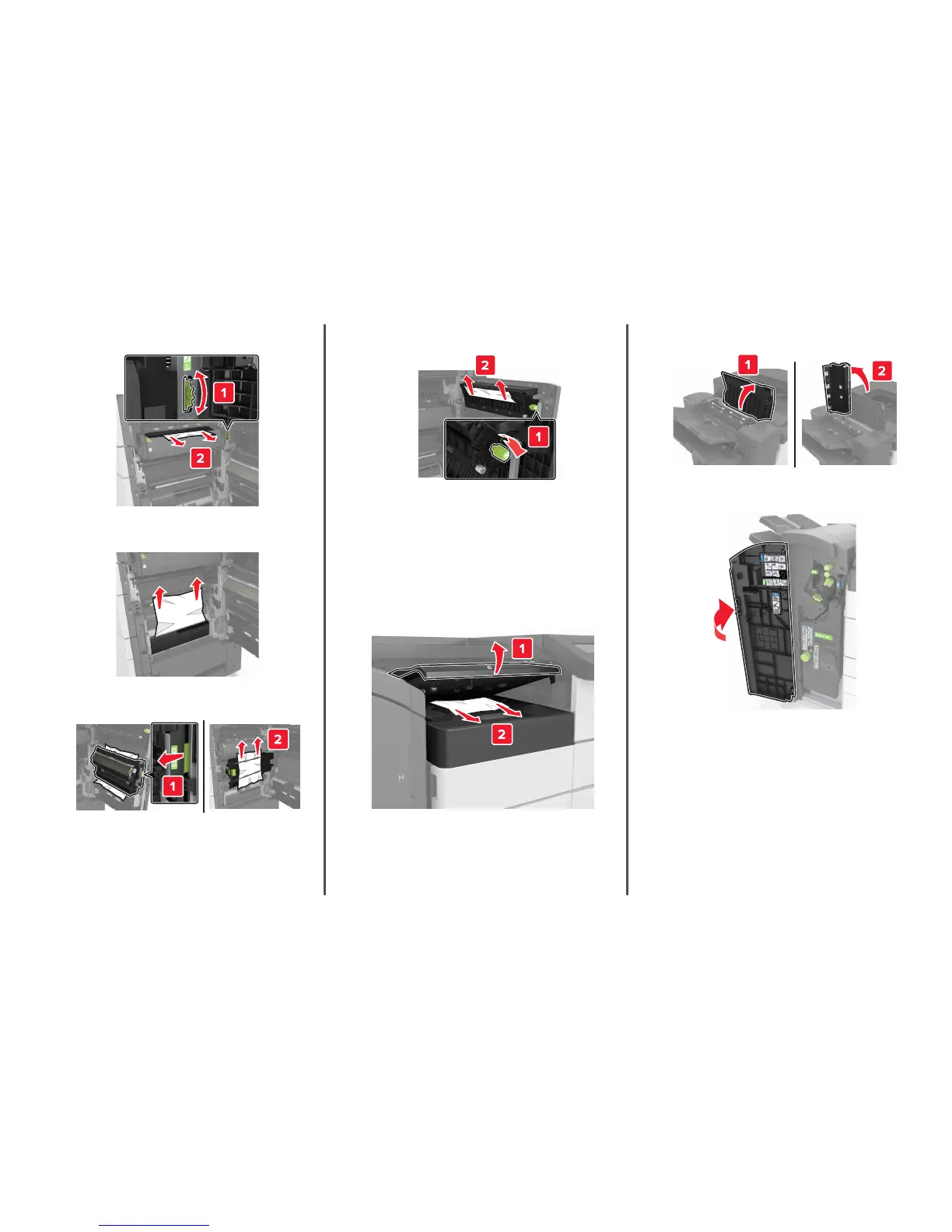

1 Open door G, and then remove the jammed paper.
Note: Make sure that all paper fragments are removed.
2 Open door J, and then lift handle J1 to its upright position.
3 Open door H.
4 Remove the jammed paper from any of the following locations:
Note: Make sure that all paper fragments are removed.
11
