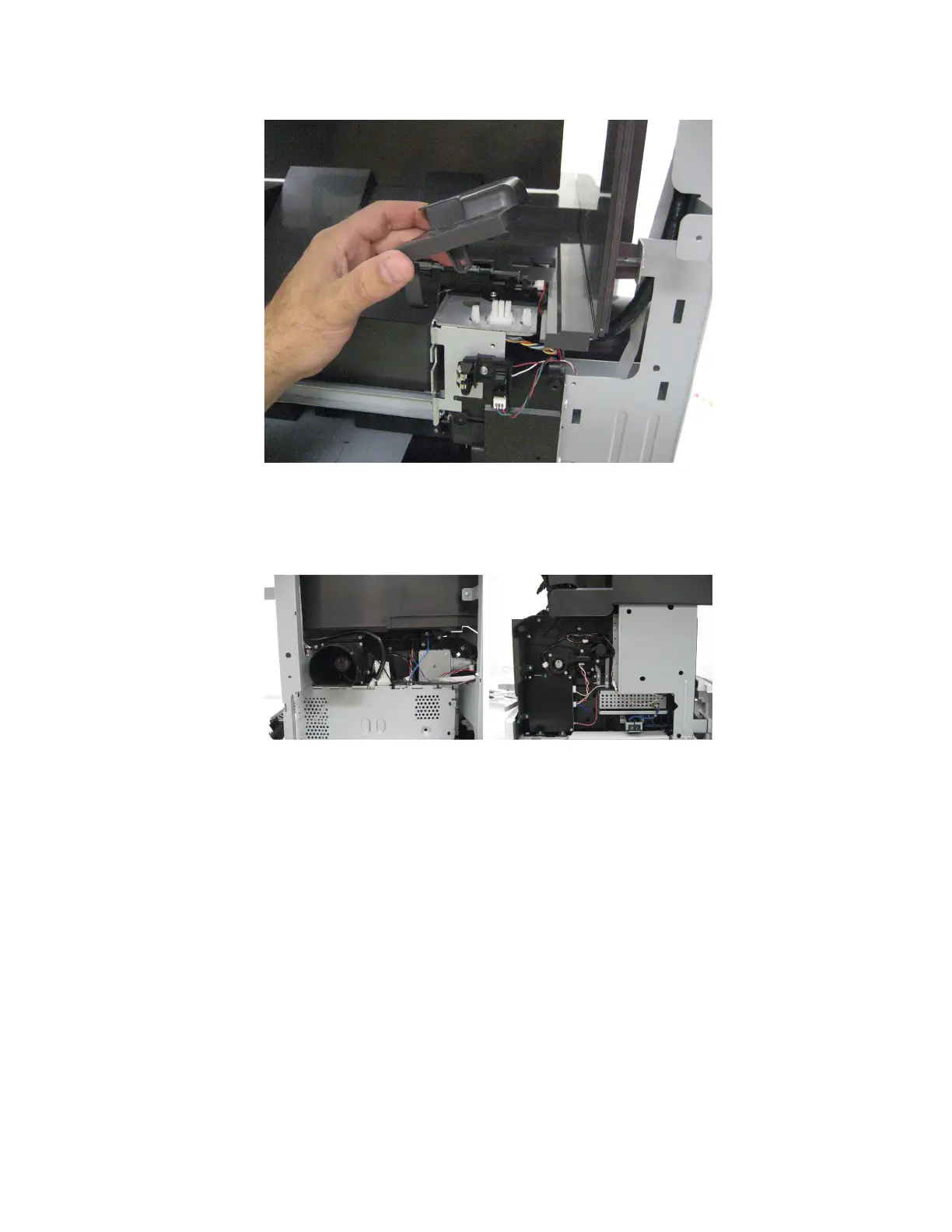

6 Remove the sensor cover.
7 Remove the upper redrive. See “Upper redrive removal” on page 363.
8 Remove the sensor (standard bin full) with actuator. See “Sensor (standard bin full) removal” on page 356.
9 Remove the five screws (B).
7463
Repair information
360
