Lexmark MX812de - Multifeed Sensor Parts Kit Removal

Multifeed sensor parts kit removal
1 Remove the ADF front cover. See “ADF front cover removal” on page 459.
2 Remove the ADF rear cover. See “ADF rear cover removal” on page 470.
3 Remove the ADF left lower cover. See “ADF left lower cover removal” on page 464.
4 Remove the ADF pick roller cover. See “ADF pick roller cover removal” on page 467.
5 Remove the ADF pick roller. See“ADF pick roller removal” on page 468.
6 Open the ADF door.

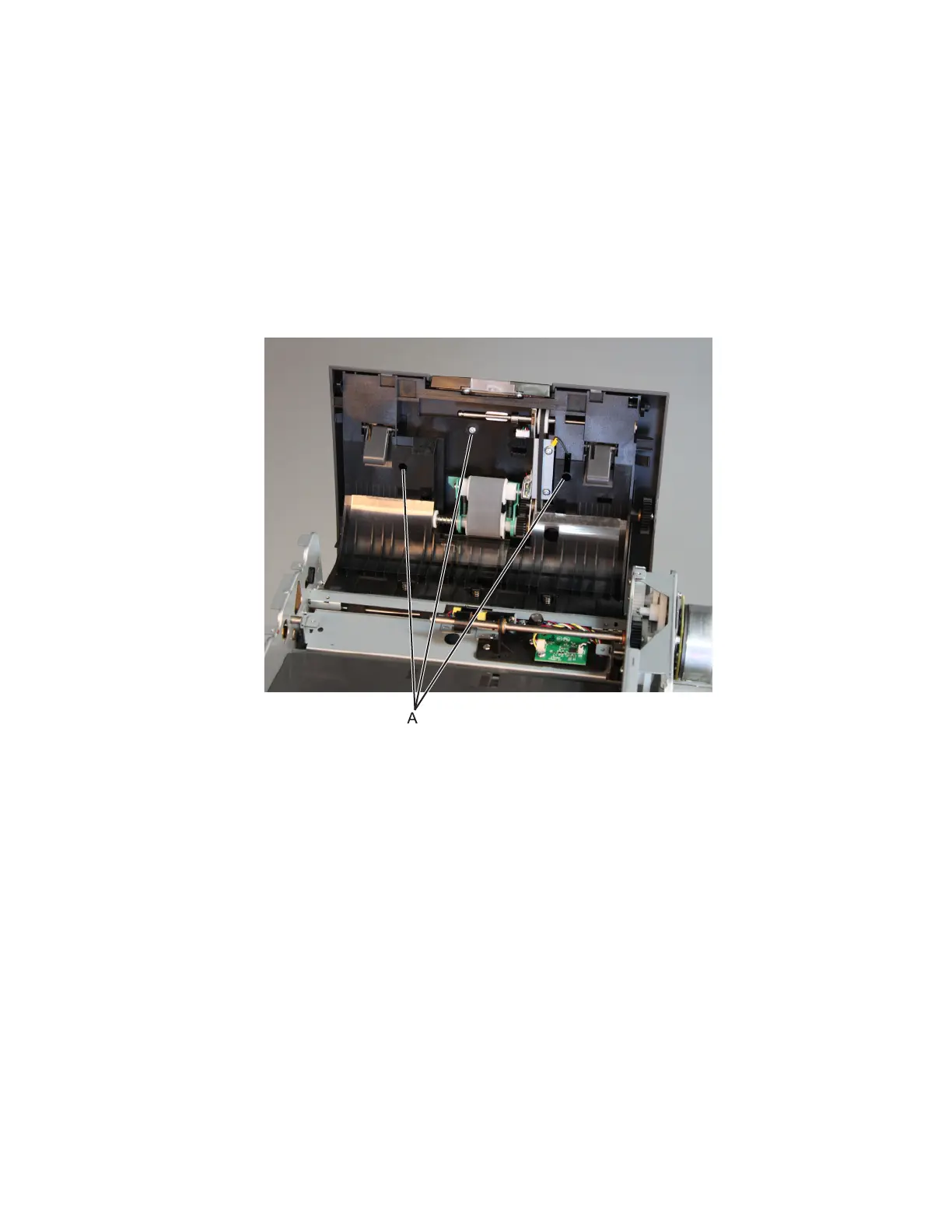

7 Remove the three screws (A).
7463
Repair information
490
