Lexmark MX812de - HCIT Lift Drive Motor Removal

HCIT lift drive motor removal
1 Remove the HCIT drawer assembly rear cover. See “HCIT drawer assembly rear cover removal” on page 542.
2 Remove the HCIT drawer assembly right cover. See “HCIT drawer assembly right cover removal” on page 545.

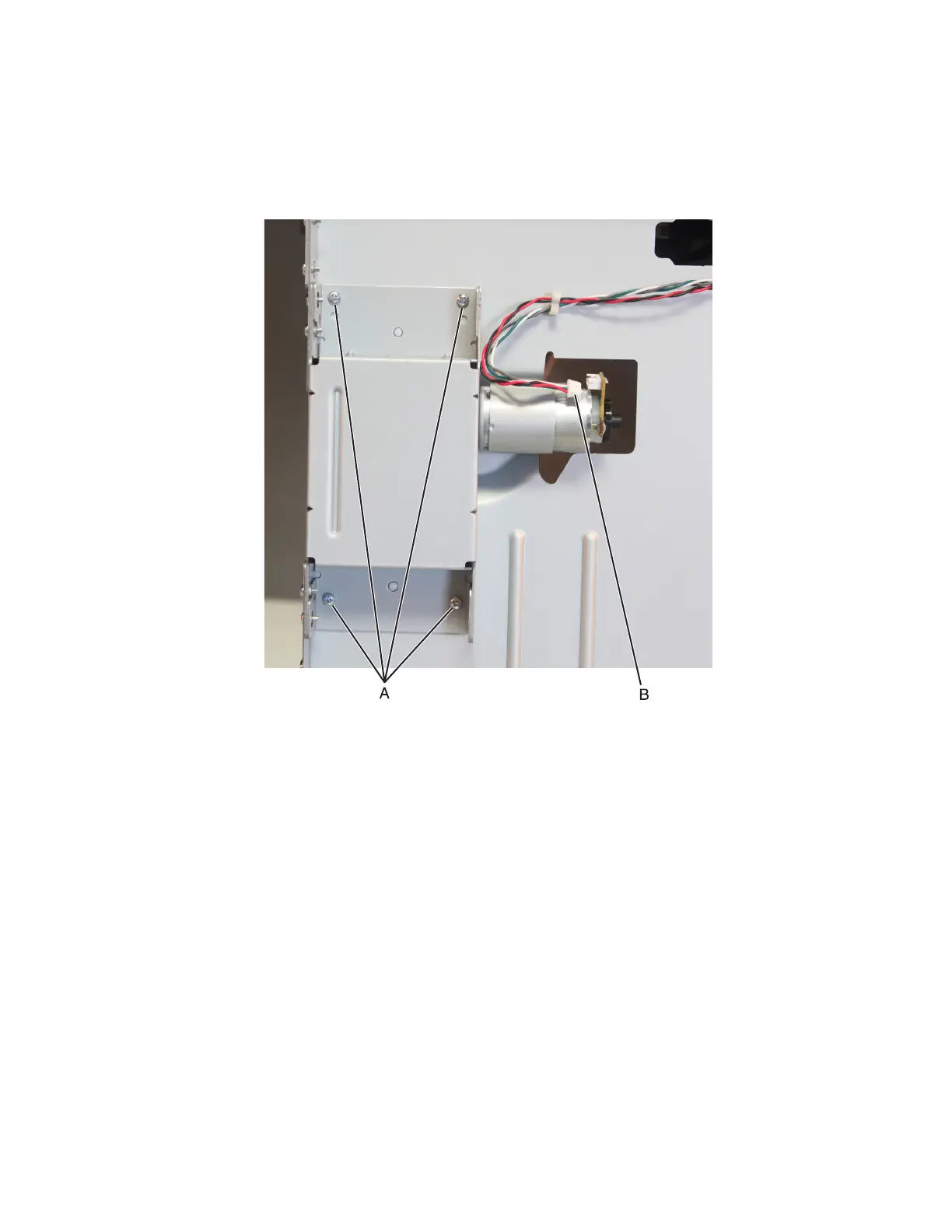

3 Disconnect the drive motor cable (B), then remove the four screws (A) from the drive motor frame.
7463
Repair information
550
