HCIT drawer assembly left cover removal
1 Remove the drawer assembly rear cover. See “HCIT drawer assembly rear cover removal” on page 542.

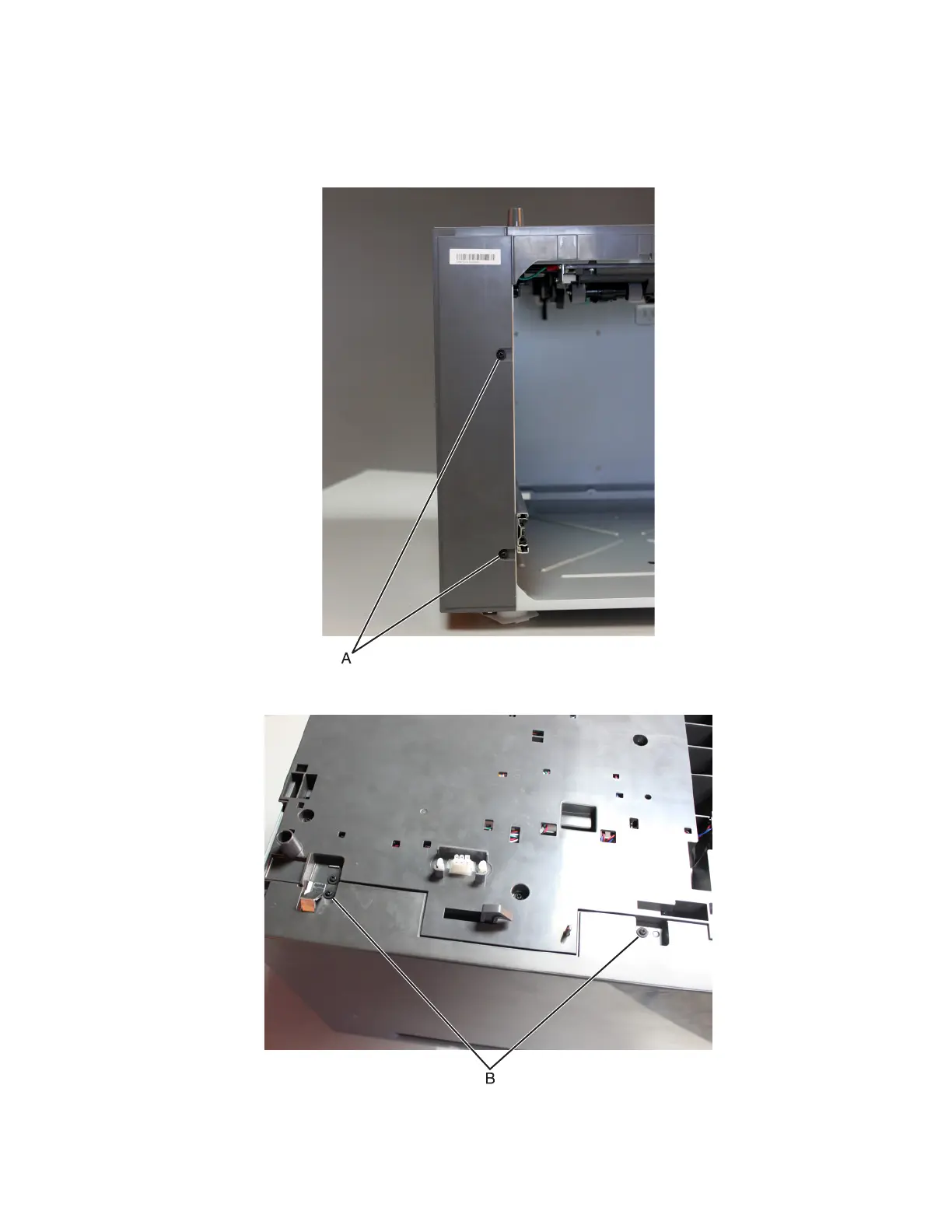

2 Remove the two screws (A) from the front side of the cover.
3 Remove the two screws (B) from the top side of the cover.
7463
Repair information
543
