Control panel right bezel removal (MX71x)
1 Remove the control panel front cover. See “Control panel front cover removal” on page 426.

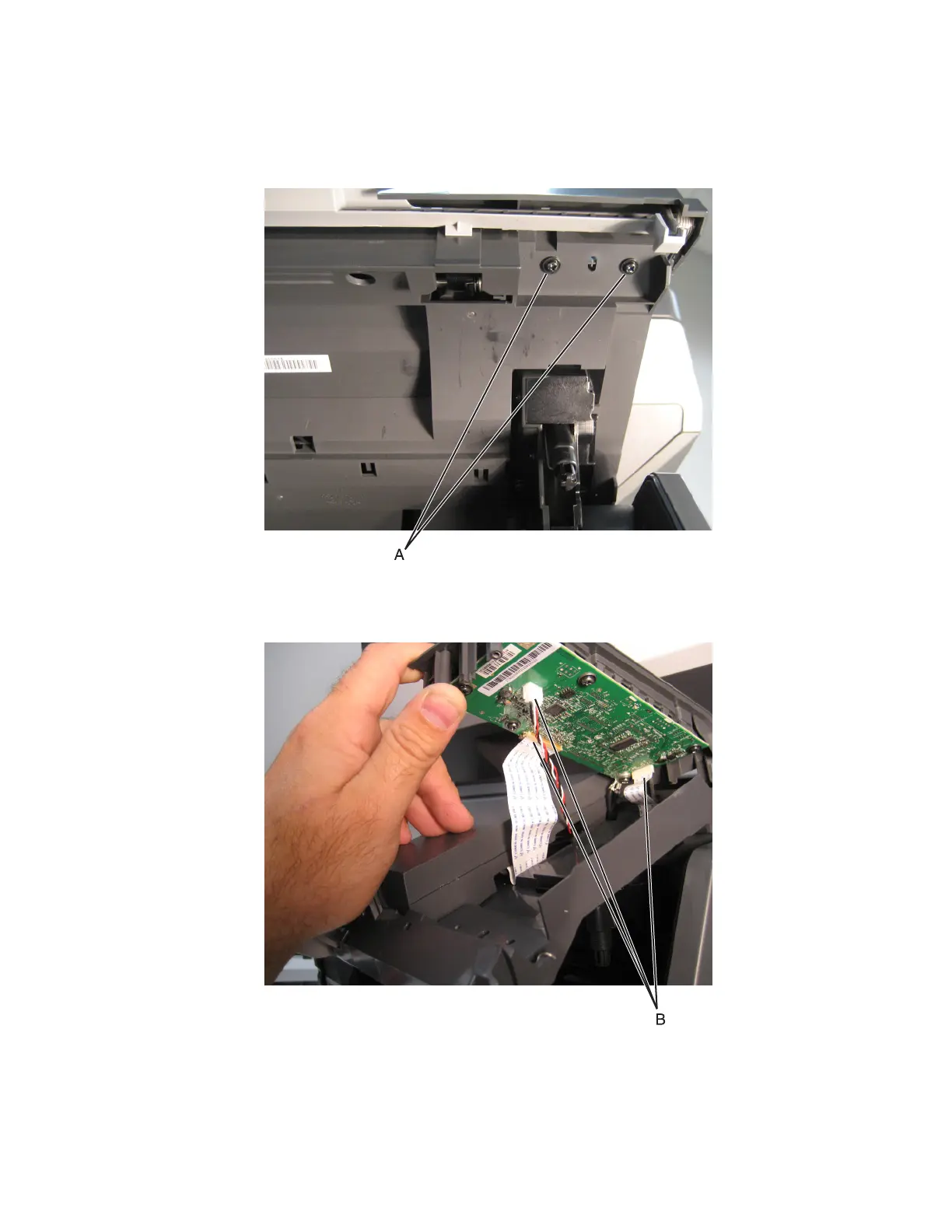

2 Remove the two screws (A) securing the control panel right bezel to the machine.
3 Gently remove the control panel right bezel to gain access to the cables.
4 Disconnect the three cables (B) from the board.
7463
Repair information
431
