Sensor (cartridge door interlock) removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 617.

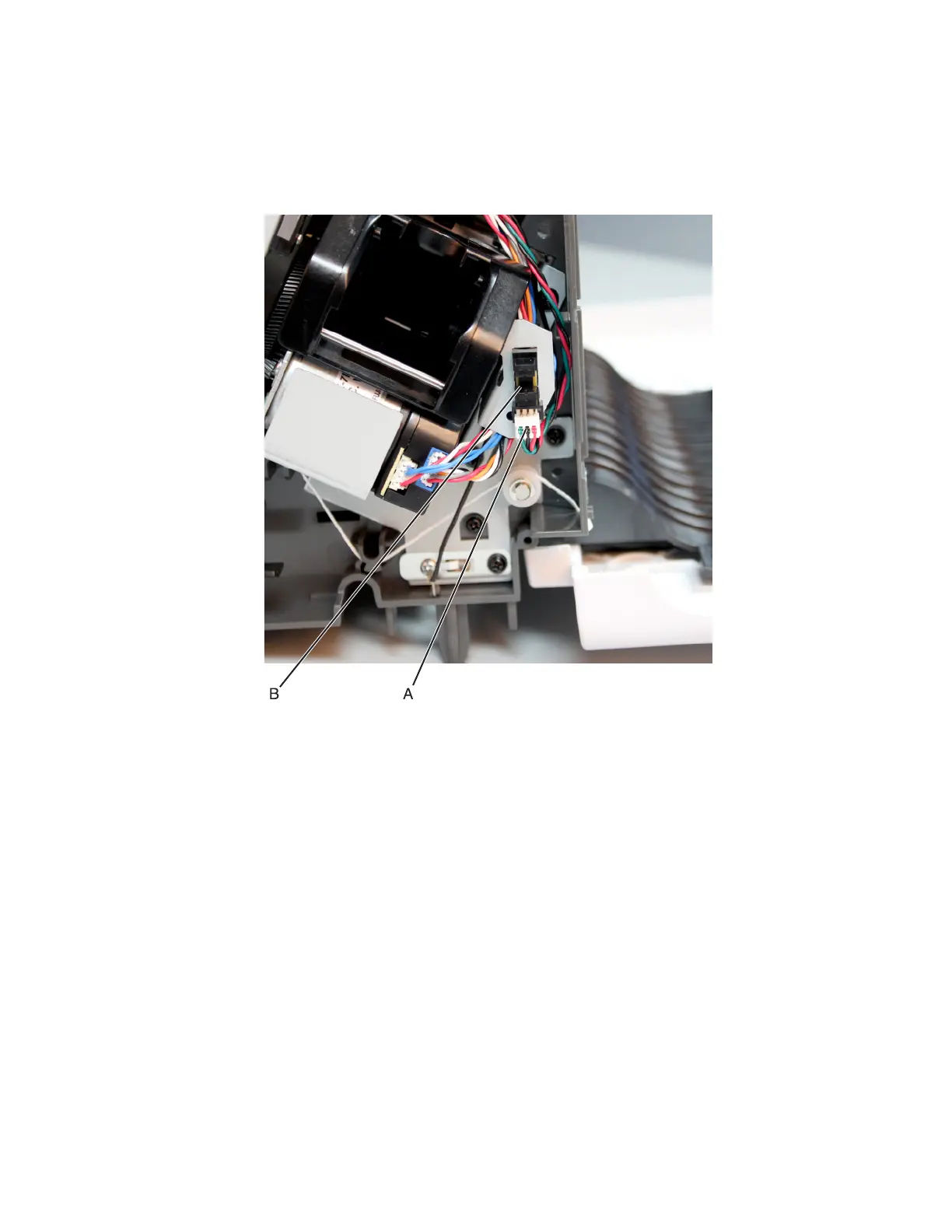

2 Disconnect the cable (A) from the sensor.
3 Release the latches from the stapler assembly frame, then remove the sensor (B).
Stapler door close limit switch removal
1 Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 597.
2 Remove the stapler right cover. See “Stapler right cover removal” on page 617.
3 Remove the stapler top cover. See “Stapler/offset stacker top cover removal” on page 599.
7463
Repair information
621
