Lexmark MX812de - Page 423

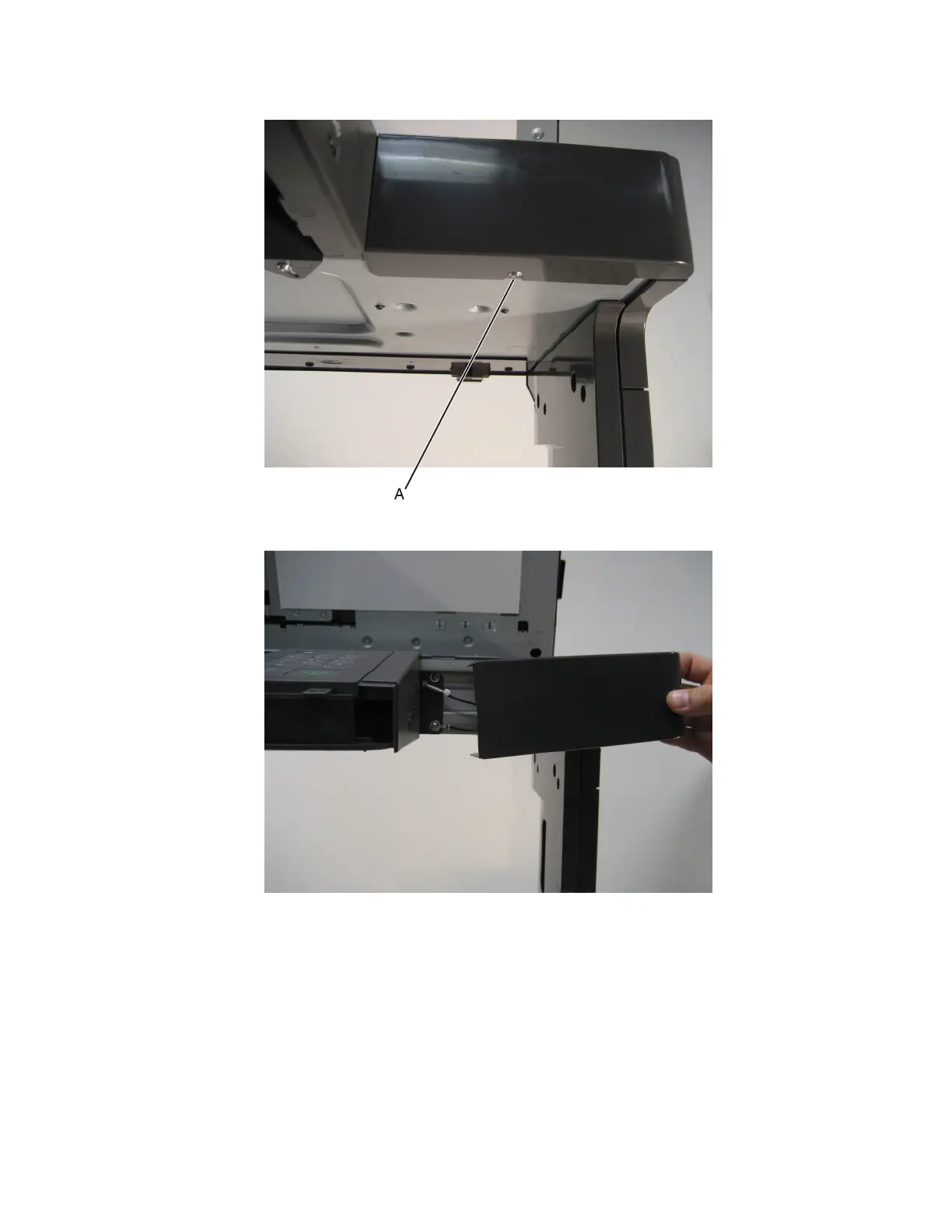

8 Remove the screw (A) securing the front scanner cover to the machine.
9 Remove the front scanner cover.
10 Remove the control panel. See “Control panel removal (MX81x)” on page 417.
11 Place the control panel upside down on a flat surface.
7463
Repair information
423
