Repair information 4-177

7462

Go Back

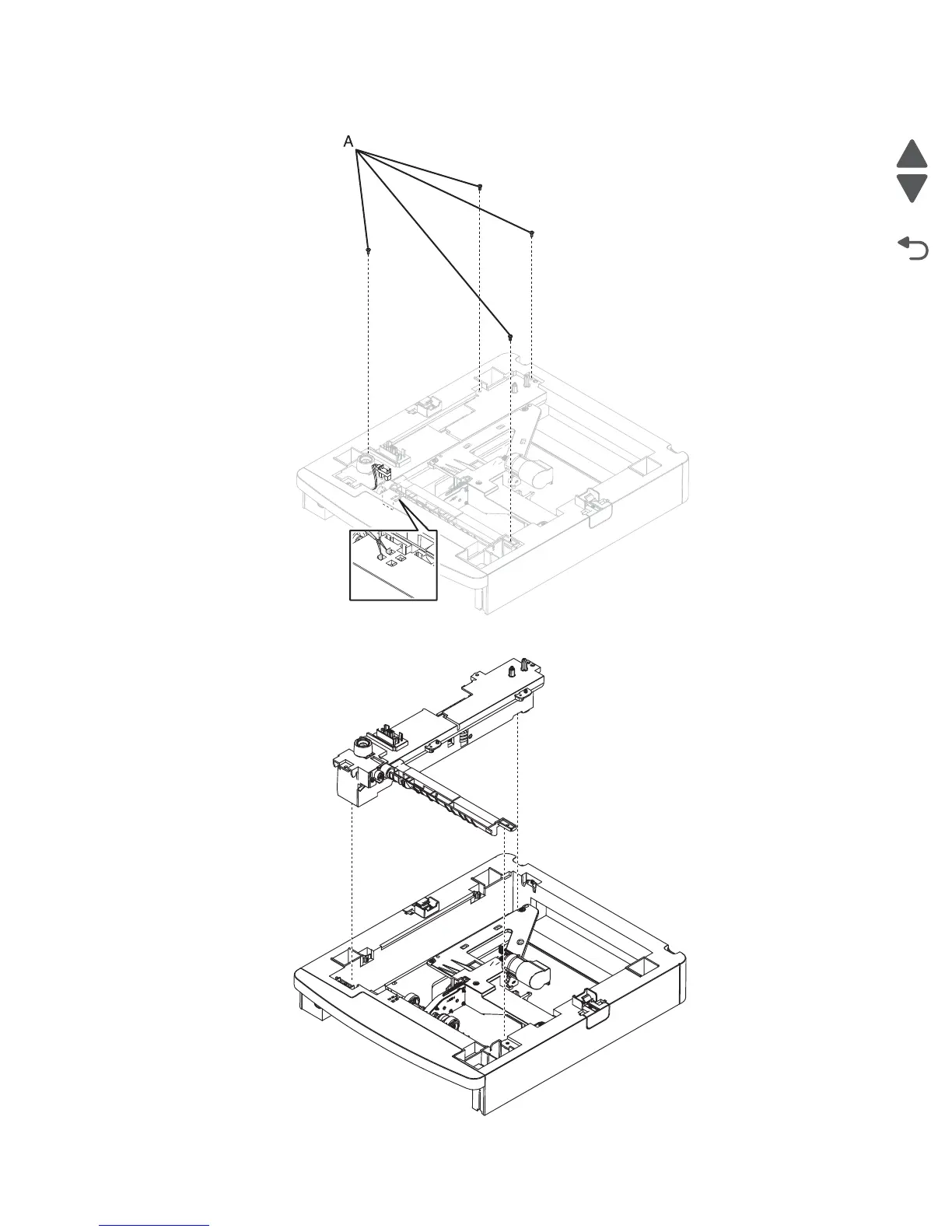

4. Remove the four screws (A) securing the 250-sheet frame assembly to the drawer.

5. Remove the 250-sheet frame assembly.
