Lexmark X651DE - Offset Stacker Sensor (bin Full Receive) Removal

To Next Page

To Previous Page

4-252 Service Manual

7462

Go Back

Offset stacker sensor (bin full receive) removal

1. Remove the offset stacker right cover. See “Offset stacker right cover removal” on page 4-237.

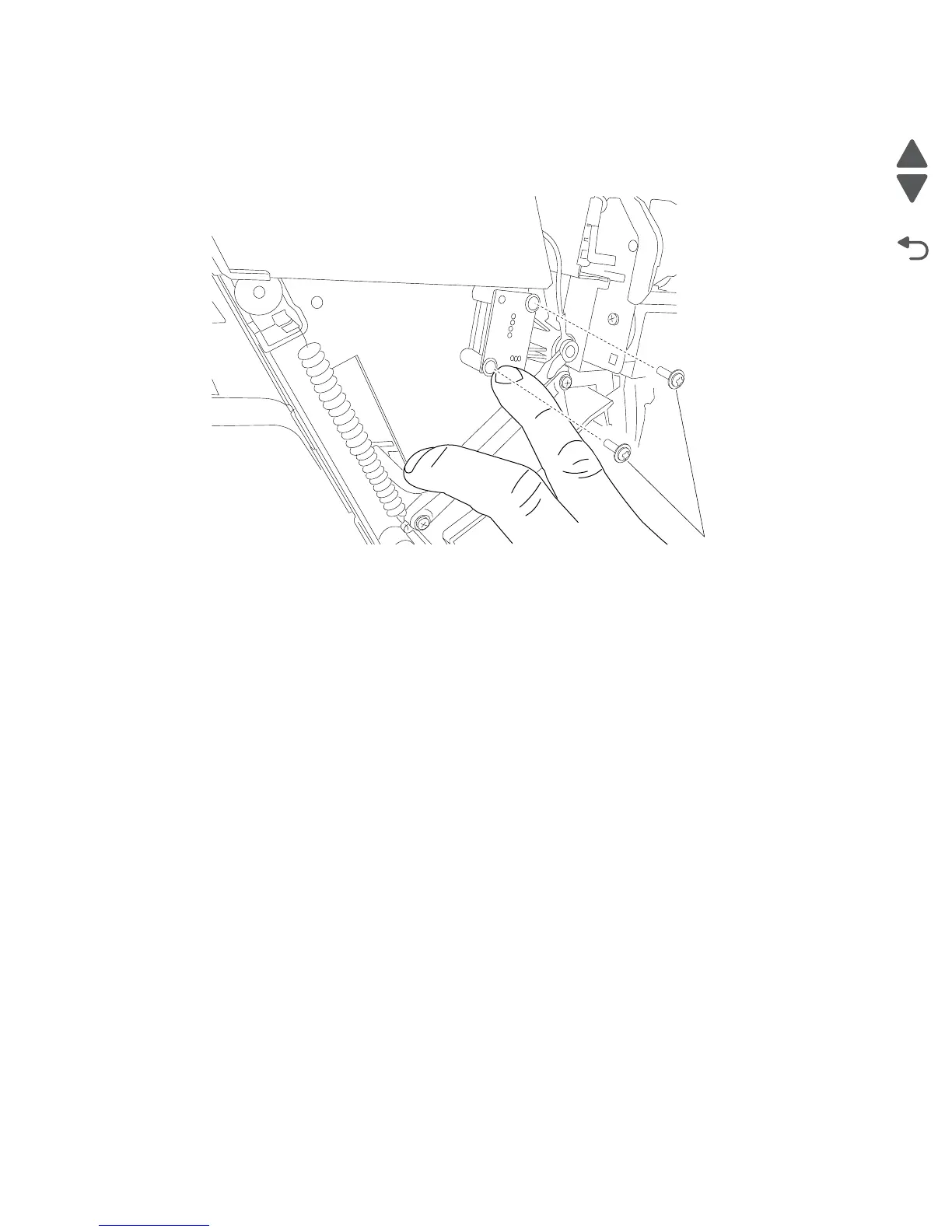

2. Remove the two screws (A) securing the sensor (bin full receive).

3. Disconnect the harness and remove.
