Lexmark X7500 Parts Breakdown

7-1 Parts Catalog
4025-XXX
7. Parts Catalog
How to Use This Parts Catalogg
• The callout numbers shown in each parts illustration correspond to the parts list
numbers for that illustration.
• The capital letters “C,” “E,” "KL," and “S” shown in an illustration stand for C-ring,
E-ring, Clamp, and Screw, respectively.
• NS: (Not Shown) in the Asm-Index column indicates that the part is procurable but is
not pictured in the illustration.

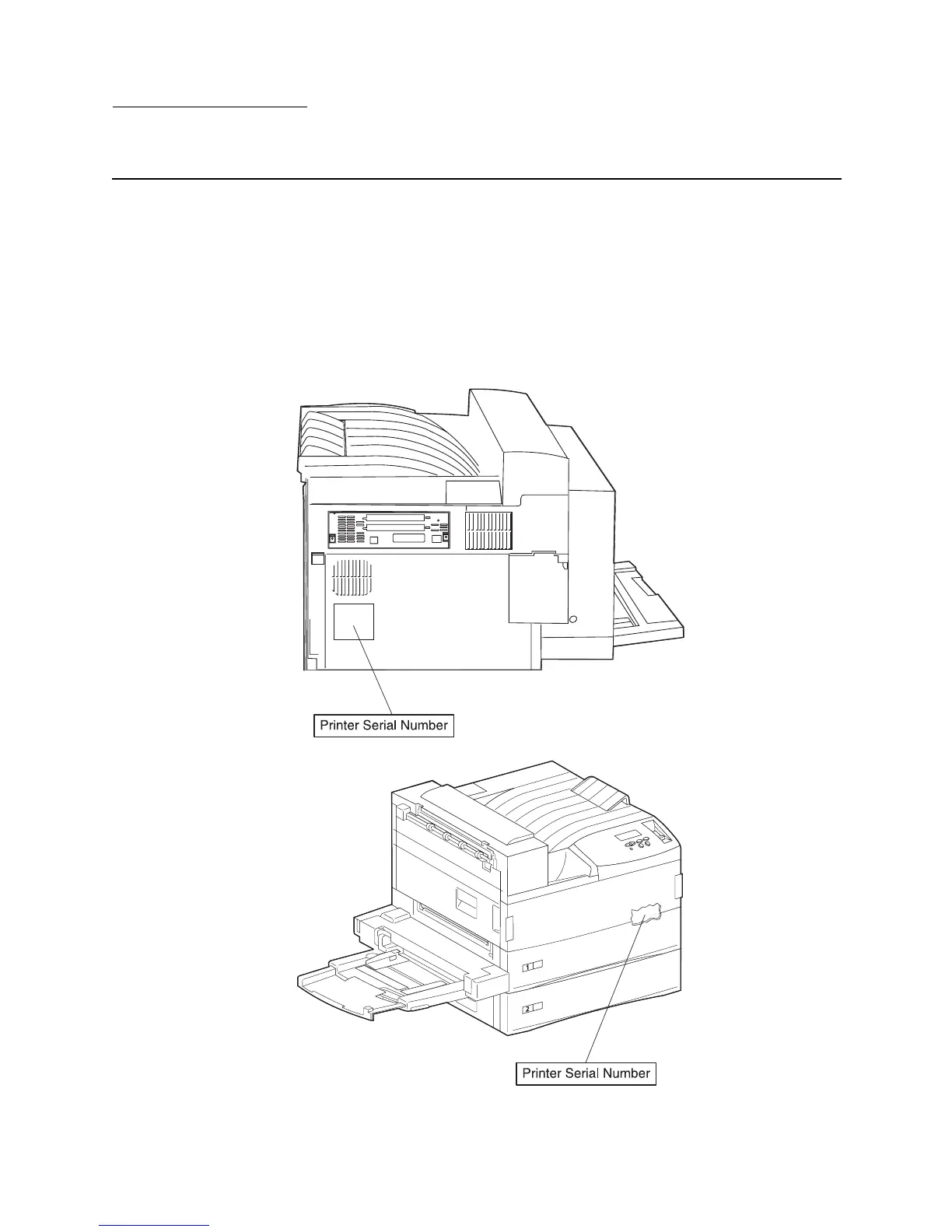

Printer serial number labels are on the rear of the printer and inside the front cover.

Lexmark X7500 Specifications

General

Brand	Lexmark
Model	X7500
Category	Printer
Language	English
