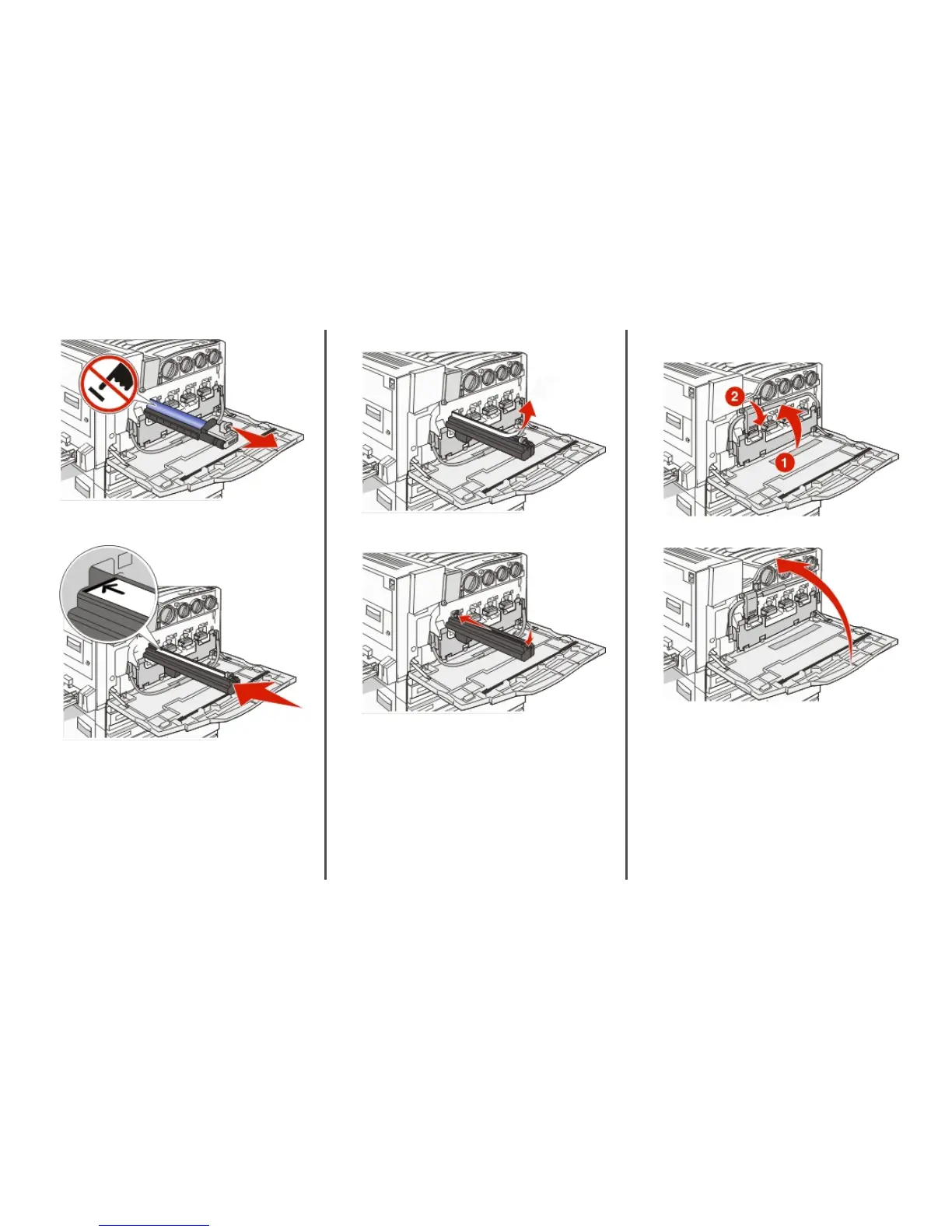

4 Unpack the replacement photoconductor.
5 Align and insert the end of the photoconductor.
6 Remove the tape from the top of the photoconductor.
7 Press the button forward to insert the photoconductor while
removing the casing.
8 Lift the bar up, and then press latch E5 down so that it holds
the bar in position.
9 Close Door E.
Replacing a toner cartridge
Replace the specified toner cartridge (cyan, magenta, yellow, or
black) when 88 Replace <color> toner appears. The
printer will not continue printing until the specified cartridge is
replaced.
1 Make sure the printer is on and Ready or 88 Replace
<color> toner appears.
2 Unpack the new cartridge, and set it near the printer.
10
