Lexmark XM1246 - Control Panel (MX321) Cover and Board Removal

3 Disconnect the cable (B), and then remove the six screws (C).
C
B
C C
C
C
4 Remove the control panel assembly.
Control panel (MX321) cover and board removal
1 Open the ADF.
2 Remove the bezel.
3 Remove the numeric keypad cover. See “Numeric keypad cover (MX321) removal” on page 241.
4 Remove the control panel assembly. See “Control panel assembly (MX321) removal” on page 245.

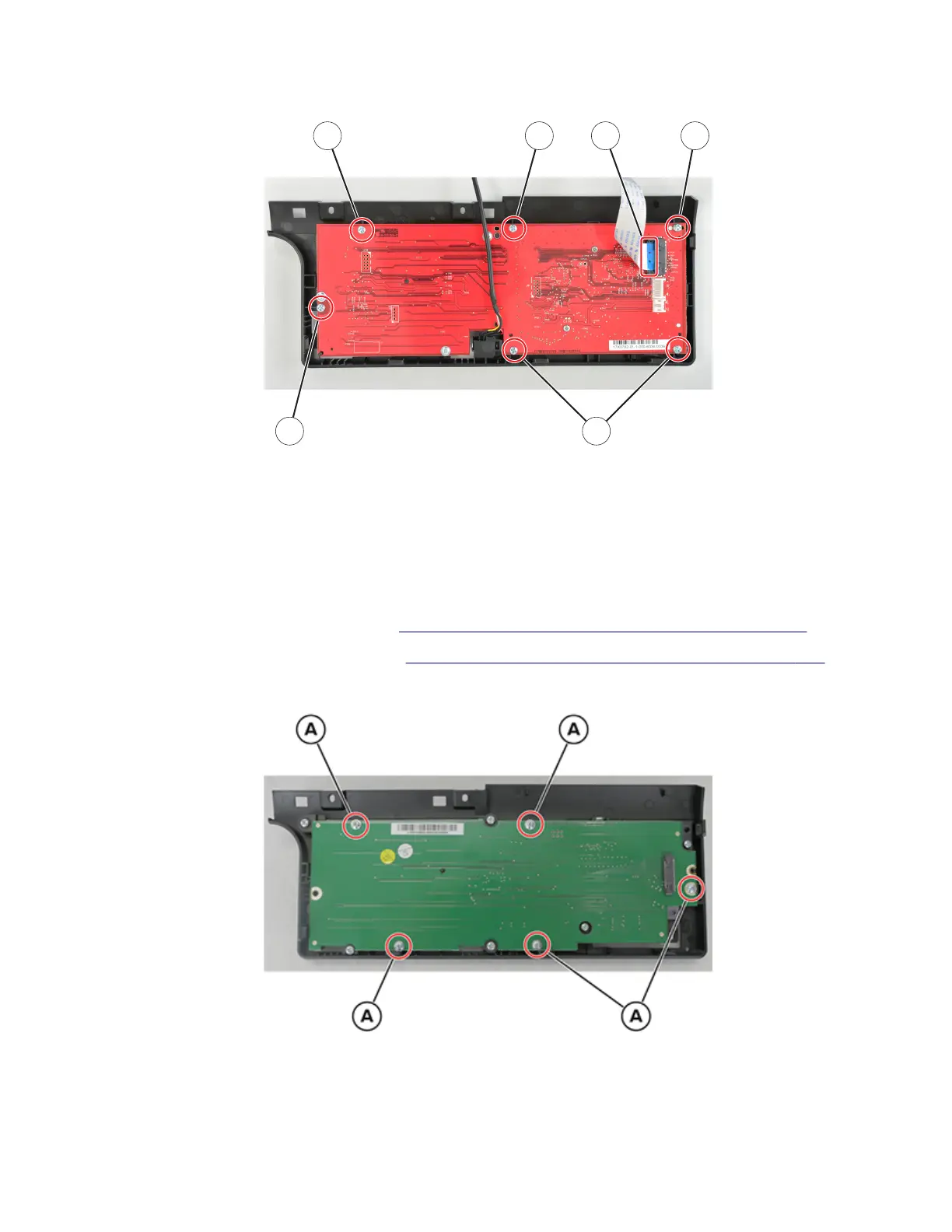

5 Remove the five screws (A).
6 Remove the board from the cover.
