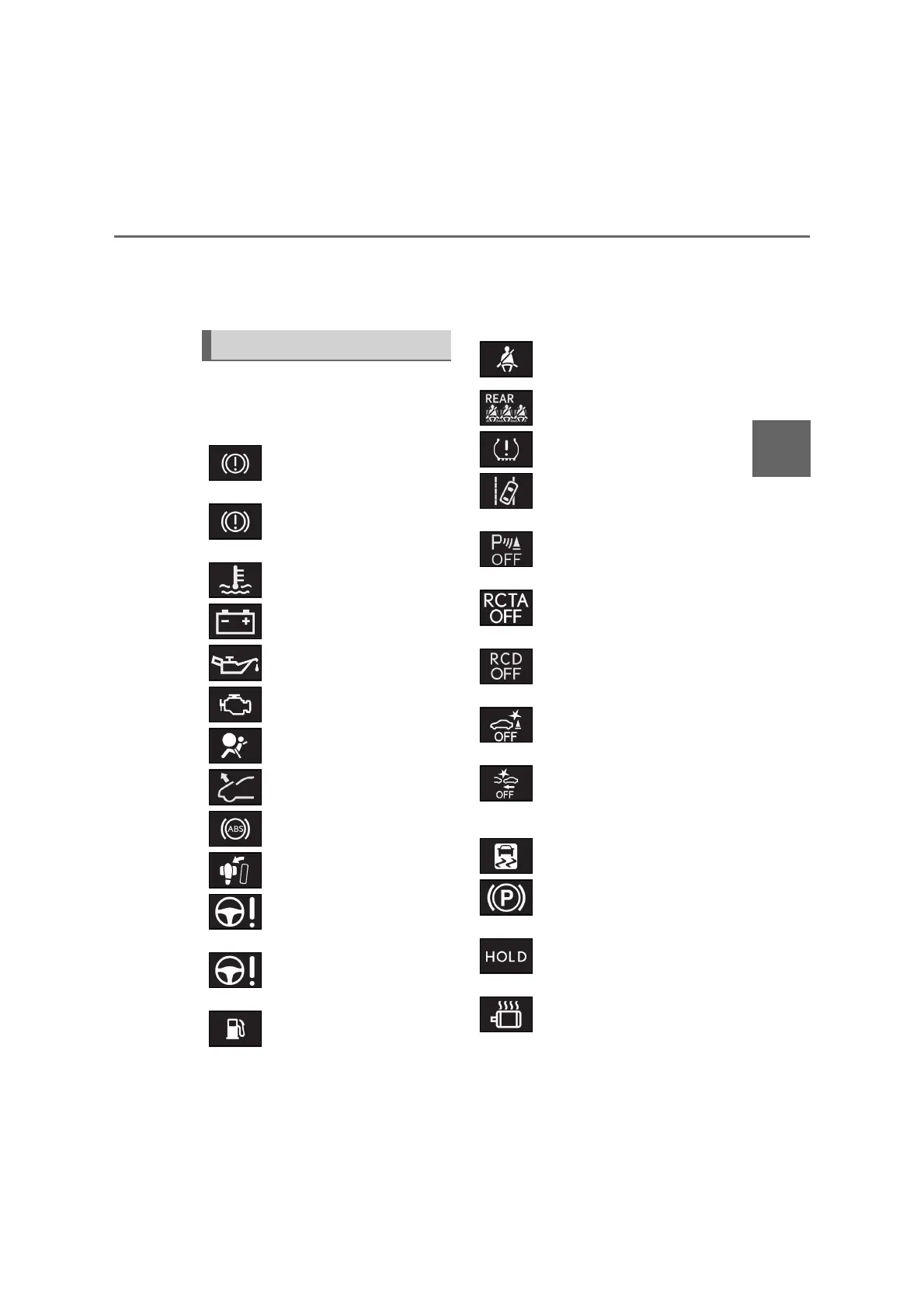

2-1. Instrument cluster
Vehicle status information and indicators
The location of warning lights and indicators may differ depending on the intended destina-
tion of the vehicle and the selected main meter location.
The image may differ from the actual condition.
Warning lights inform the driver of
malfunctions in the indicated vehicle’s
systems.
Warning lights
(red)
Brake system warning light
*1
(P.406)
(yellow)
Brake system warning light
*1
(P.406)
High coolant temperature
warning light
*2
(P.406)
Charging system warning
light
*2
(P.407)
Low engine oil pressure warn-
ing light
*2
(P.407)
Malfunction indicator lamp
*1
(P.407)
SRS warning light
*1
(P.407)
Pop Up Hood warning light
*1
(P.408)
ABS warning light
*1
(P.408)
Inappropriate pedal operation
warning light
*2
(P.408)
(red)
Electric power steering system
warning light
*1
(P.409)
(yellow)
Electric power steering system
warning light
*1
(P.409)
Low fuel level warning light
(P.409)
Driver’s and front passenger’s
seat belt reminder light
(P.409)
Rear passengers’ seat belt
reminder lights
*2
(P.409)
Tire pressure warning light
*1
(P.410)
(orange)
LTA indicator
*2
(if equipped)
(P.410)
(flashes)
Lexus parking assist-sensor
OFF indicator
*1
(P.410)
(flashes)
RCTA OFF indicator
*1
(P.411)
(flashes)
RCD OFF indicator (if
equipped) (P.411)
(flashes)
PKSB OFF indicator
*1
(P.411)
(flashes or
illuminates)
PCS warning light
*1
(if
equipped) (P.412)
Slip indicator
*1
(P.412)
(flashes)
Parking brake indicator
(P.412)
(flashes)
Brake hold operated indica-
tor
*1
(P.412)
Hybrid system overheat warn-
ing light
*2
(P.413)
