2-1. Instrument cluster

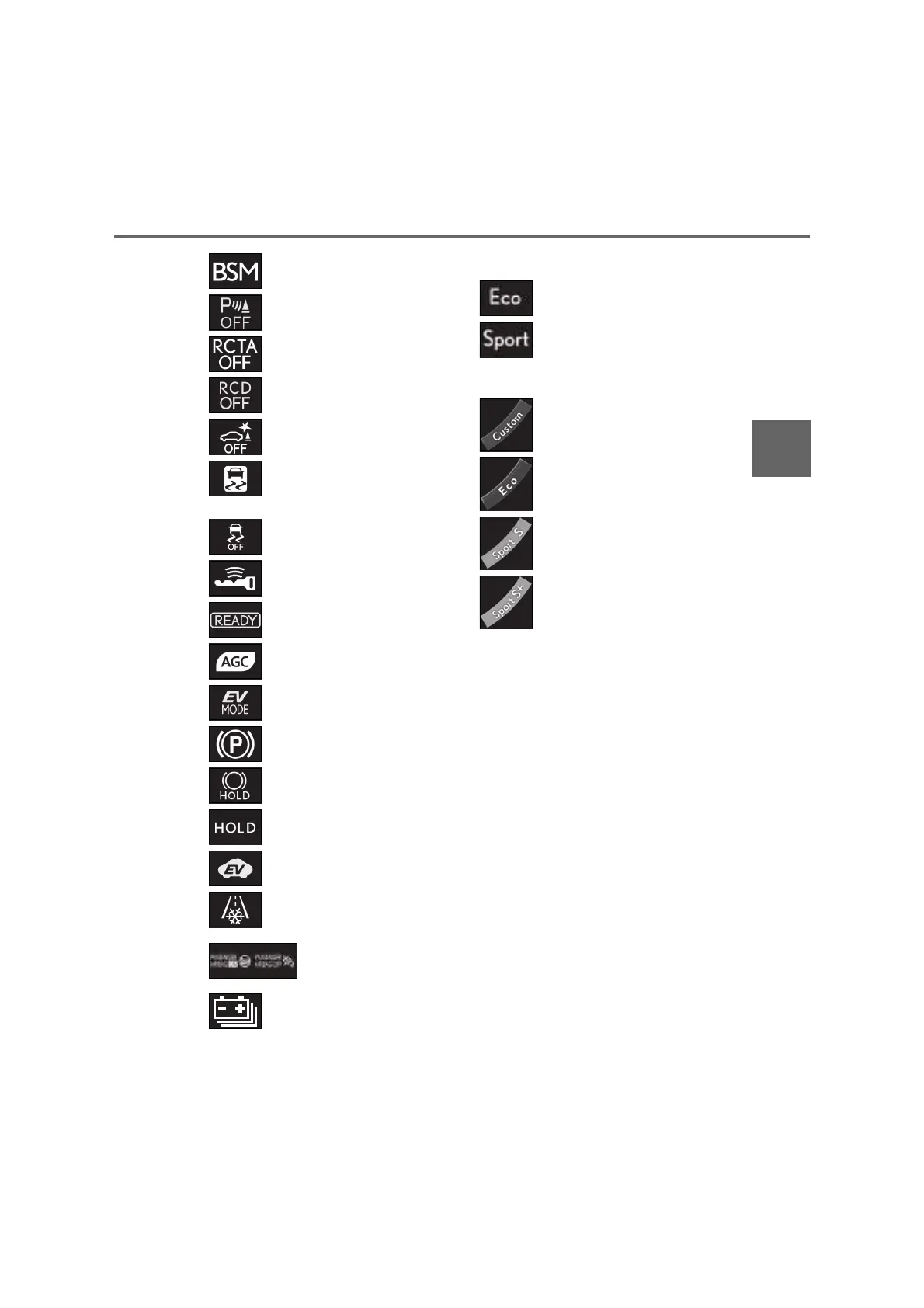

Vehicle status information and indicators
 Drive mode indicators
 Except F SPORT models
 F SPORT models
*1
: These lights come on when the power
switch is turned to ON mode to indi-
cate that a system check is being per-
formed. They will turn off after the
hybrid system is on, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.
*2
: This light comes on when the system is
turned off.
*3
: This light illuminates on the multi-infor-
mation display.
*4
: This light illuminates on the outside rear
view mirrors.
*5
: This light illuminates on the Digital Side-
view Monitor display.
*6
: Except F SPORT models: This light illu-
minates on the multi-information dis-
BSM indicator (P.263)
Lexus parking assist-sensor
OFF indicator
*1, 2
(P.272)
RCTA OFF indicator
*1, 2
(P.280)
RCD OFF indicator
*2
(if
equipped) (P.286)
PKSB OFF indicator
*1, 2
(P.290)
(flashes)
Slip indicator
*1
(P.304)
VSC OFF indicator
*1, 2
(P.304)
Smart entry & start system indi-
cator
*3
(P.185)
“READY” indicator (P.185)
AGC indicator
*3
(P.269)
EV drive mode indicator
(P.189)
Parking brake indicator
(P.196)
Brake hold standby indicator
*1
(P.198)
Brake hold operated indica-
tor
*1
(P.198)
EV indicator
*6
(P.79)
Low outside temperature indi-
cator
*3, 7
(P.97, 101)
“PASSENGER AIR
BAG” indicator
*1, 8
(P.51)
Traction battery status indica-
tor (if equipped)
*3
(P.118)
Eco drive mode indicator
(P.267)
Sport mode indicator
(P.267)
Custom mode indicator
(P.267)
Eco drive mode indicator
(P.267)
Sport S mode indicator
(P.267)
Sport S+ mode indicator
(P.267)
