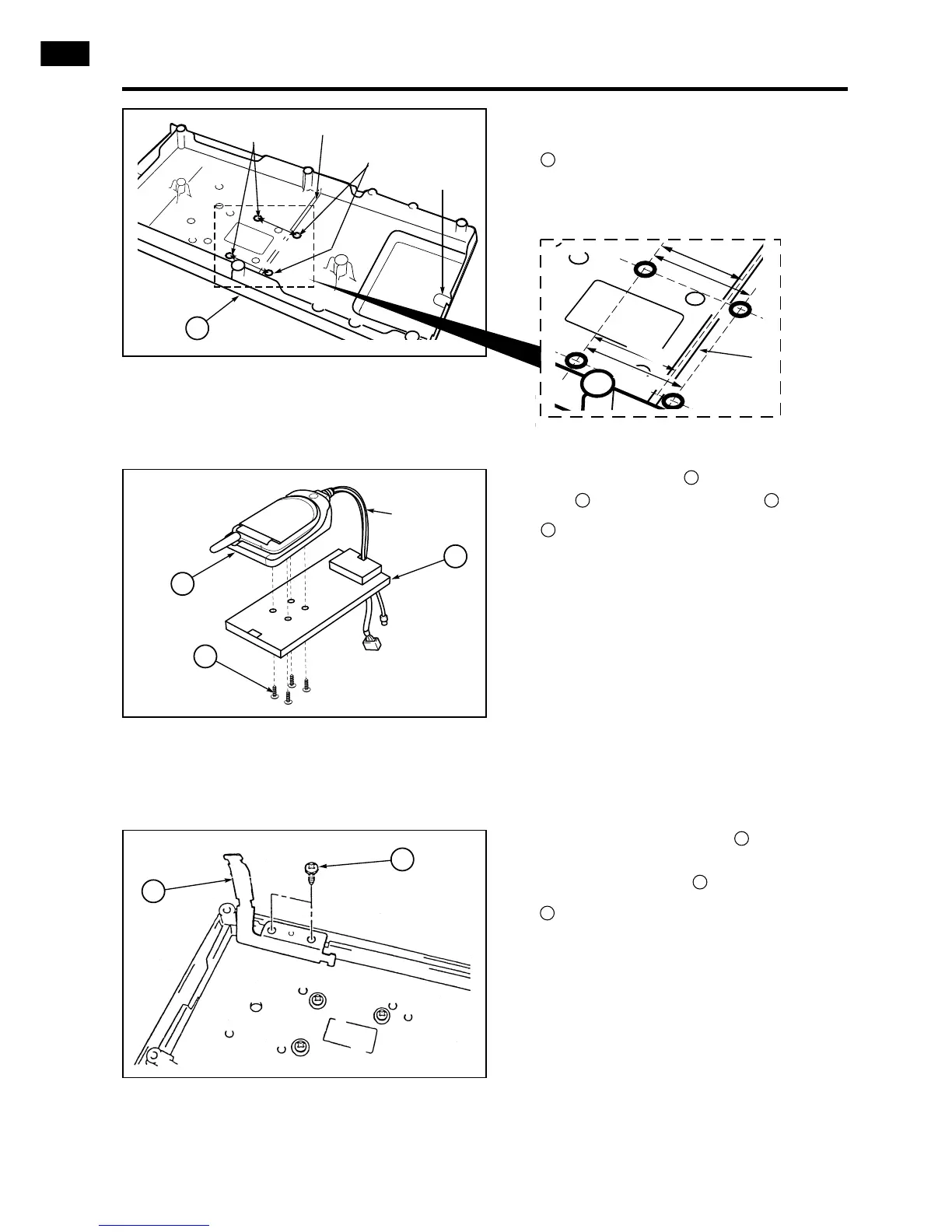

Lexus LS 430 - Page 16

LS 430 CMT - Dual band portable phone
46
3.5 Install the cradle on the telephone
tray using the M4x5 bolts .
: Bolt (M4x5) (4x)
4
4
16
I
3.6 Install the cable support for the tele-
phone wire on the back of the tray using
the tapping screws .
: Tapping screw (2x)
19
19
18
16
4
Wire harness
I
19
18
3.4
a) Punch the 2 holes in the telephone tray
and drill another 2 holes (Ø4mm) as
indicated in the drawing.
b) Cut away the cable hole.
16
Punch 2 holes
Drill 2 holes
16
30mm
26mm
30mm
26mm
Rib
Rib
Cable hole
