Lexus LS 430 - Cradle Conversion Wire

LS 430 CMT - Dual band portable phone
47

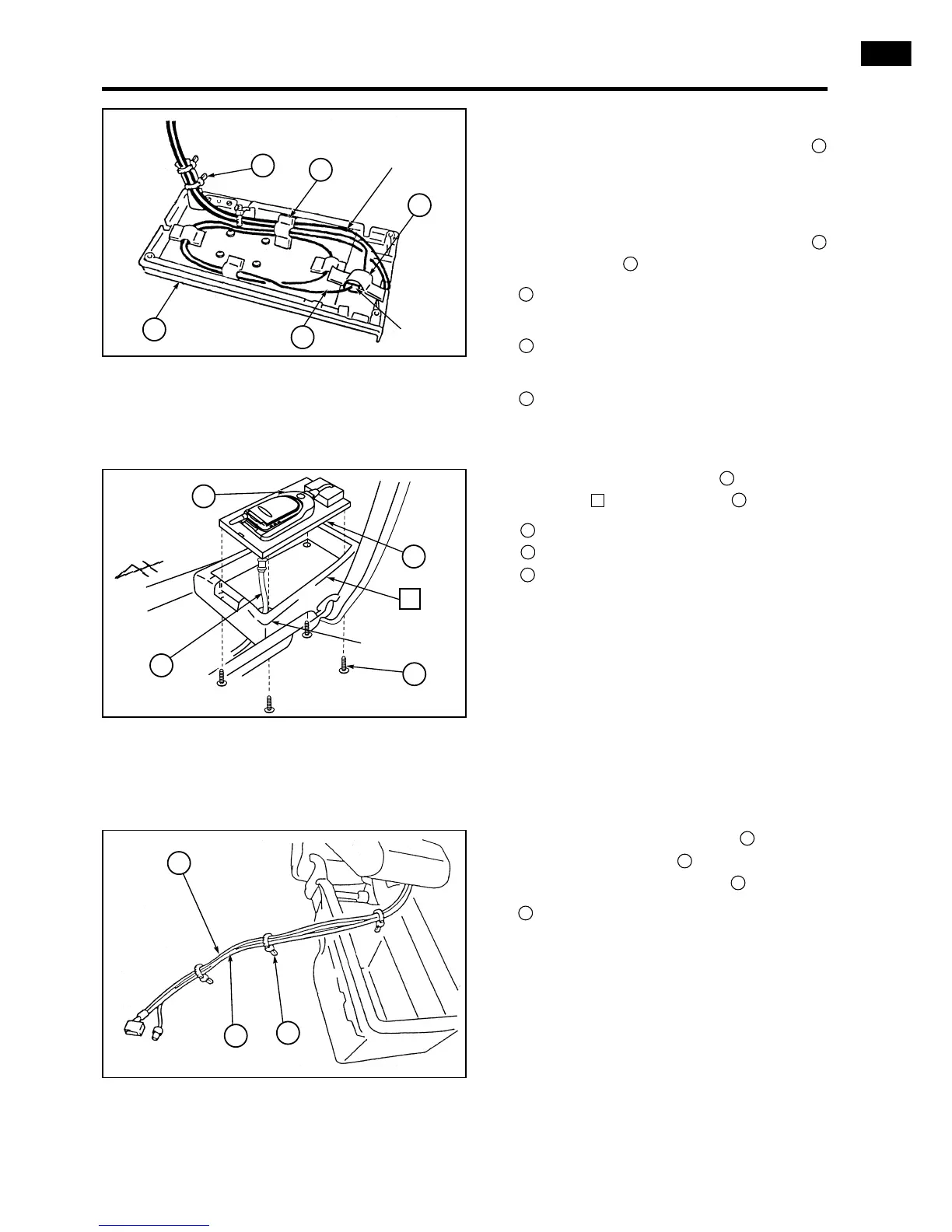

3.9 Bundle up the antenna wire and cra-
dle conversion wire as shown in the
illustration using 3 wire ties .
: Wire tie (small) (3x)
11
11
8
I
3.8 Install the telephone tray in the con-
sole tray using 4 screws .
: Cradle conversion wire
: Flat head screw (4x)
: Cradle
I
20
8
20
14
16
See fig. 3.1
I
16
14
8
8
11
20
I
3.7
a) Connect the cradle conversion wire
and the telephone wire.
b) Route the telephone wire and the
antenna cord as shown in the illustra-
tion, then secure them using foam
and wire ties .
: Foam (small) (4x)
c) Secure the 18P connector using foam
for noise prevention on the area
shown in the illustration.
: Foam (large) (1x)
14
14
13
11
13
8
16
11
13
18P
14
8
Telephone wire
