Lexus LS 430 - Portable Phone Installation

LS 430 CMT - Dual band portable phone
45

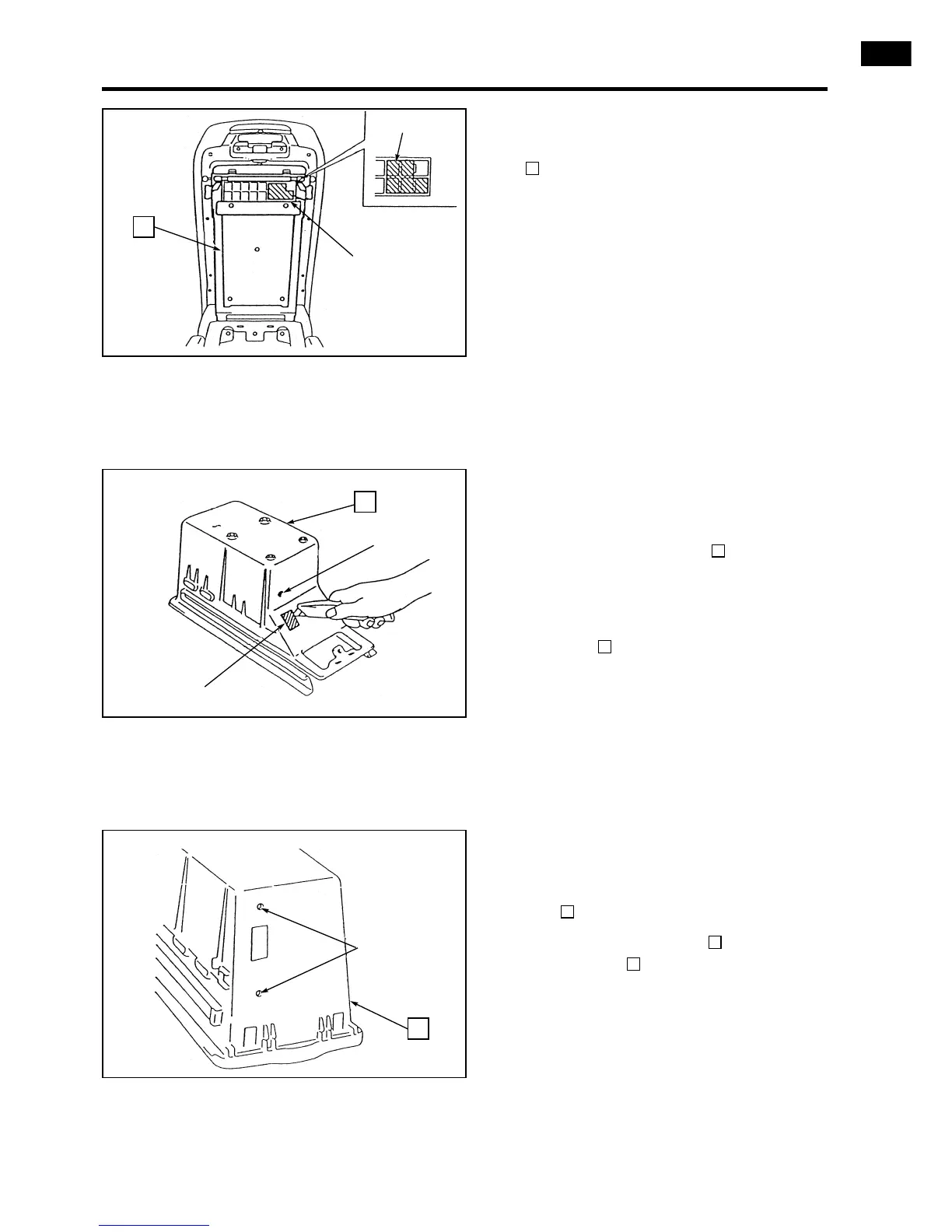

3.1 Cut out the marked area in the illustra-
tion using the cutter.
: Console tray
14
3.2
a) Using the cutter, cut out the marked
area along the line on the rear part of
the lower console box for the tele-
phone wire to pass.
b) Drill a Ø5mm hole on the marked area
on the rear position of the lower con-
sole box .
10
10
3.3
a) Drill two Ø7mm holes on the marked
area on the front of the lower console
box .
b) Install the console tray in the lower
console box .
10
14
10
3. PORTABLE PHONE INSTALLATION
14
Cut out
Cut out
10
Cut here
Ø5mm hole
Ø7mm hole
10
