Lexus LS 430 - Grommet

LS 430 CMT - Dual band portable phone
48
3.12

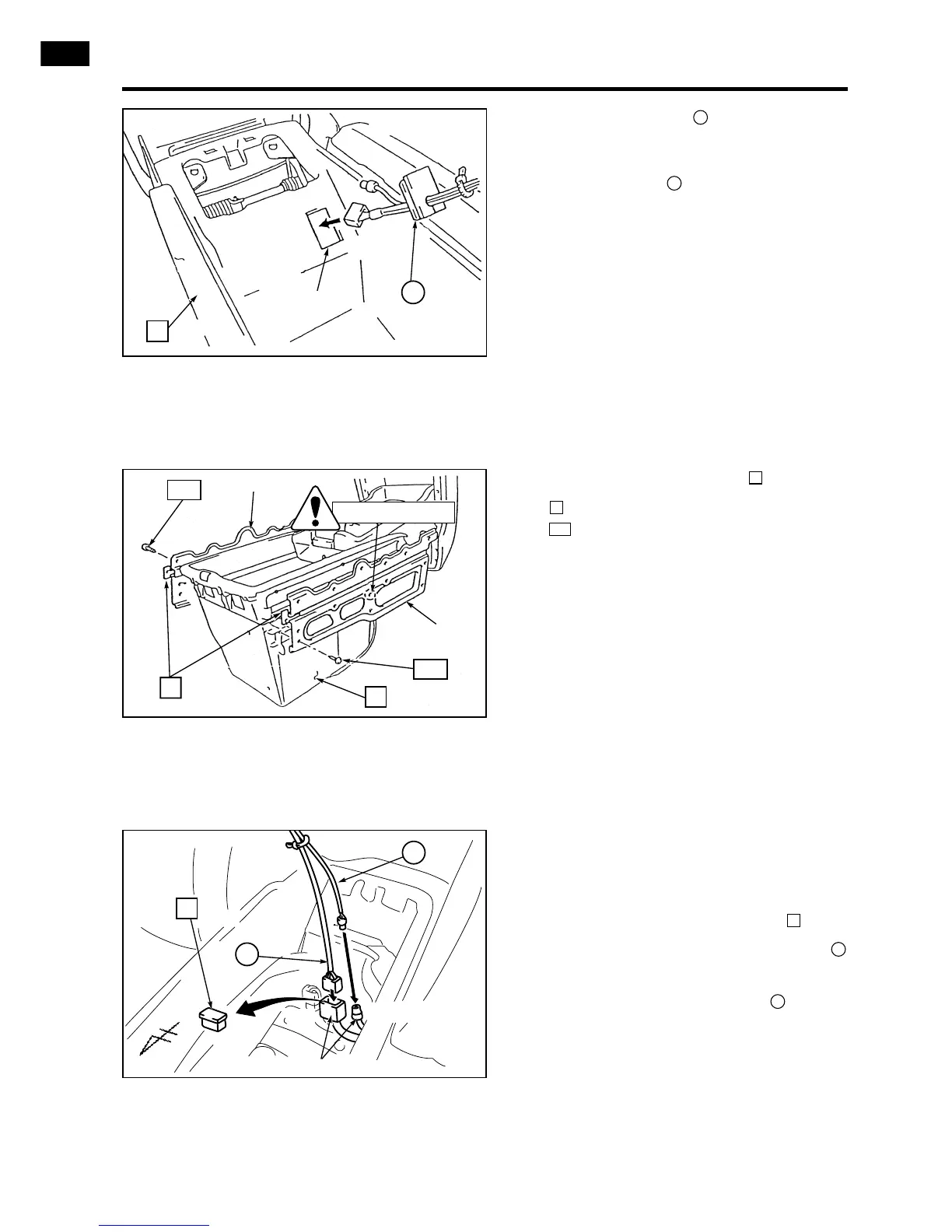

a) Locate the 18P vehicle connector at the
end of the centre console.
b) Remove the dummy connector .
c) Connect the cradle conversion wire
to the 18P vehicle connector.
d) Connect the antenna cord to the
vehicle connector (Mini UHF).
I
8
15
3.11 Reinstall the console box .
: Stopper (2x)
: Screw (26x)
110
12
10
110
Plate
Plate
110
10
12
15
18P
8
Mini UHF
Vehicle connector
I
3.10 Put the grommet around the tele-
phone wire, then pass it through the
hole.
The grommet should be installed
firmly in the hole.
10
10
see fig. 3.2
10
10
Don’t use this hole
