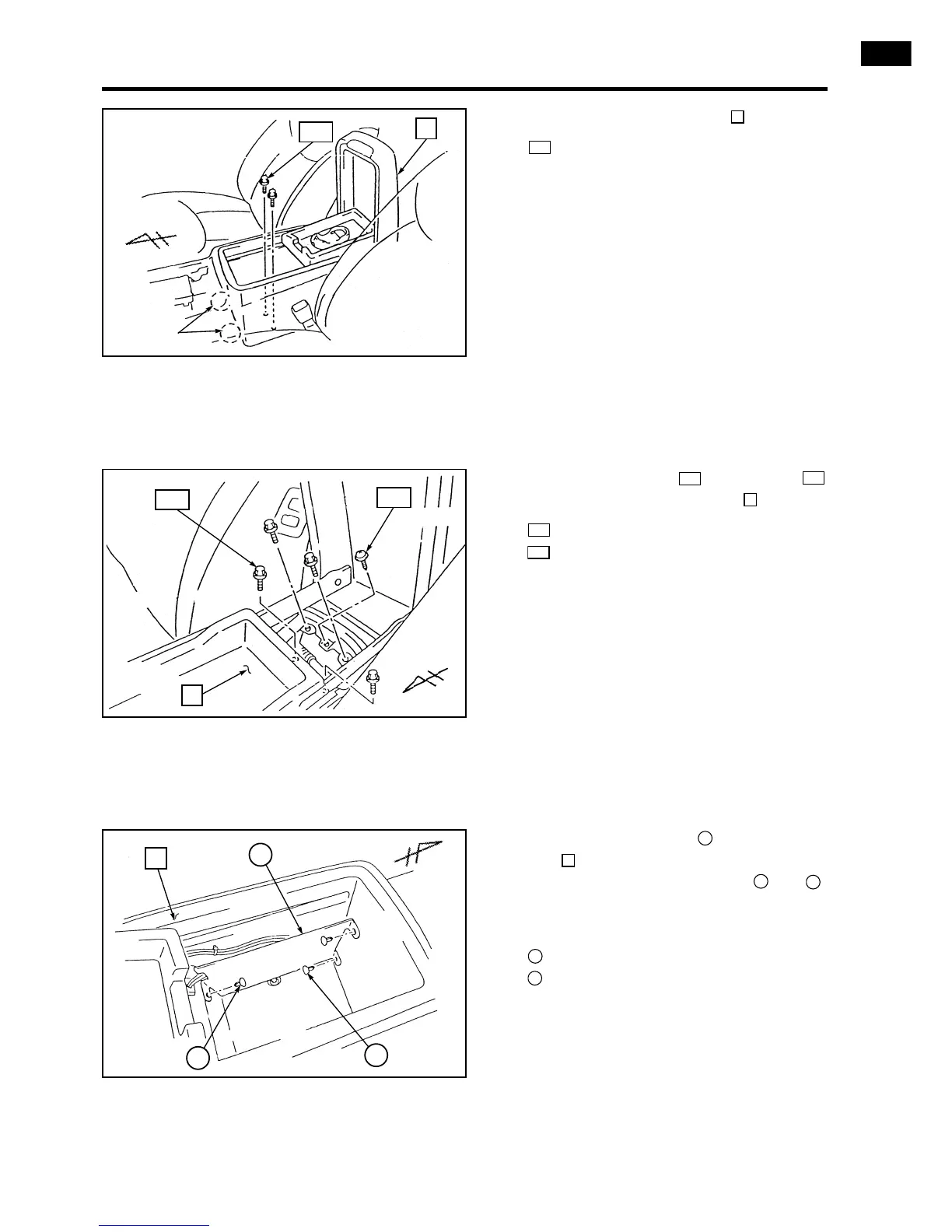

3.13 Reinstall the console box .
: Bolt (2x)
105
10
3.14 Reinstall the bolts and screw
from the lower console box .
: Bolt (4x)
: Screw (1x)
109
105
10
109
105
3.15 Put the partition plate in the console
box as shown in the illustration, then
secure 3 positions using clips and .
When doing this, be careful not to catch
the telephone wire.
: Clip (large) (2x)
: Clip (small) (1x)
