Lexus LS 430 - Page 14

LS 430 CMT - Dual band portable phone
44

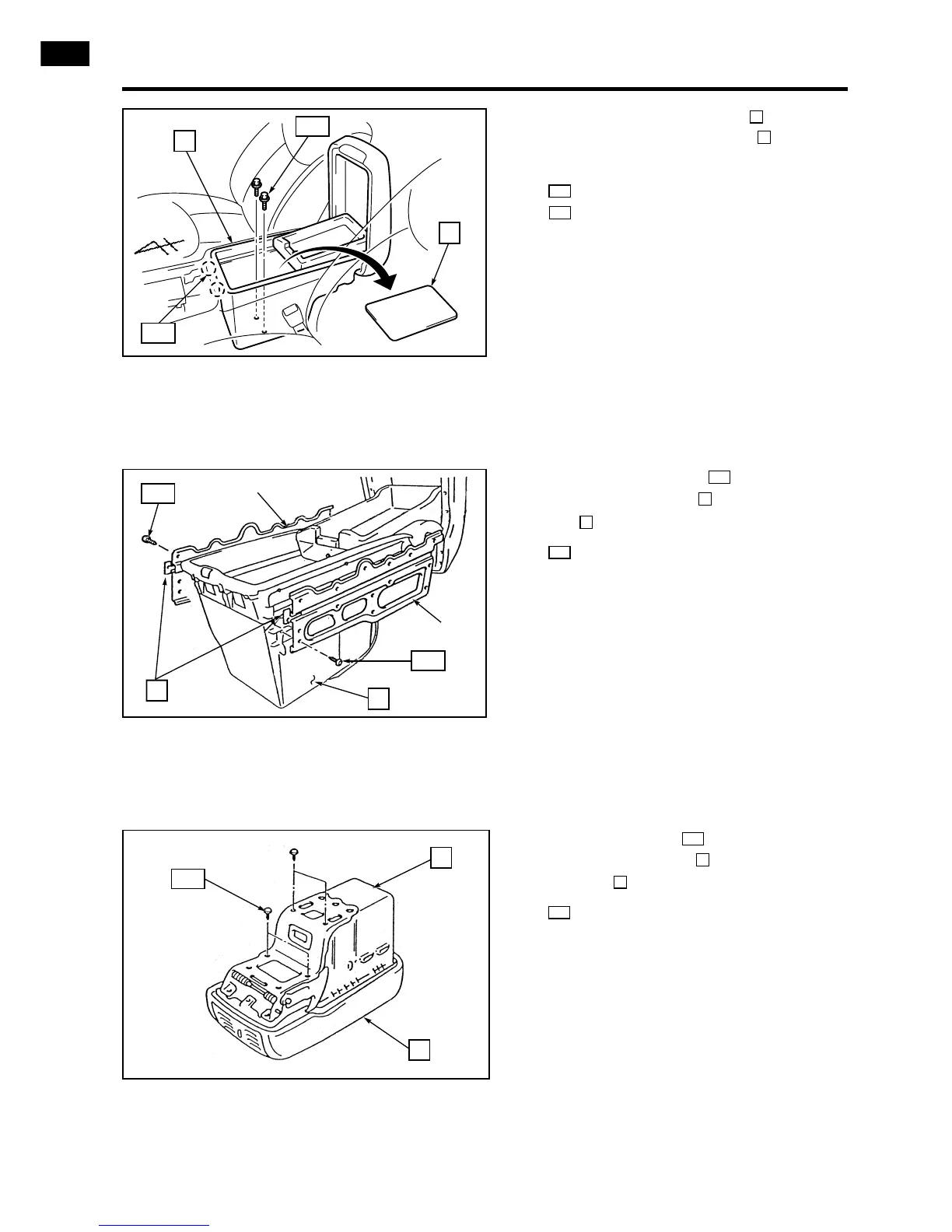

2.12 Remove the console mat .
Remove the console box from the
vehicle as shown.
: Clip (2x)
: Bolt (2x)
105
102
10
11
2.13 Remove 26 screws on both sides
of the console box and on the stop-
per .
: Screw (26x)
110
12
10
110
2.14 Remove 4 bolts on the lower part
of the console box , then remove the
armrest .
: Bolt (4x)
111
13
10
111
105
11
10
102
110
Plate
Plate
110
12
10
111
10
13
