About This Document
This Communication protocol contains instructions for operating the vacuum
transmitter ITR 200 SD (featuring DeviceNet interfaces) as slave together with a
DeviceNet master. It describes the functionality of DeviceNet for programming
purposes.
Safety aspects and Technical Data of the transmitter are described in the Short
Operating Instructions and the Operating Manual (→ [1], [2]).
Validity
This document applies to products with part number:
ITR 200 SD (with DeviceNet interface, 2 switching functions)
230 253 (DN 25 ISO-KF)
230 257 (DN 40 CF-R)

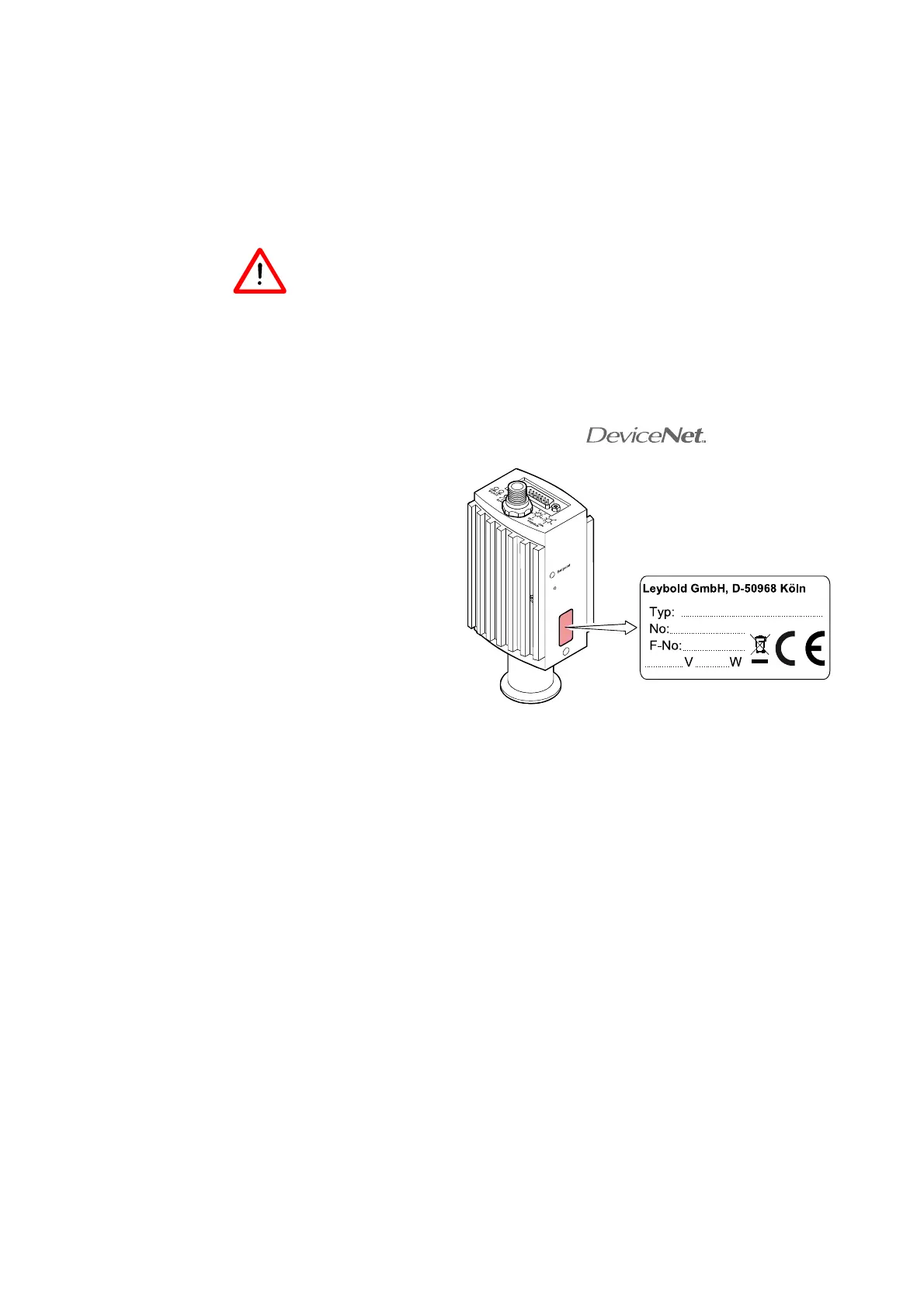

The catalog
number (No.) can
be taken from the
nameplate
We reserve the right to make technical changes without prior notice.
Intended Use
The intended use of the transmitter is described in the instruction sheet and the
operating manual (→ [1], [2]).
Function
The intended use of the transmitter is described in the instruction sheet and the
operating manual (→ [1], [2]).
The following description of the DeviceNet Interface is compliant to the DeviceNet
specification of the Open DeviceNet Vendor Association (→ [3], [4]).
This manual describes the functionality of a DeviceNet Group 2 Only Slave and
supports Explicit Messaging and the I/O Polling.
