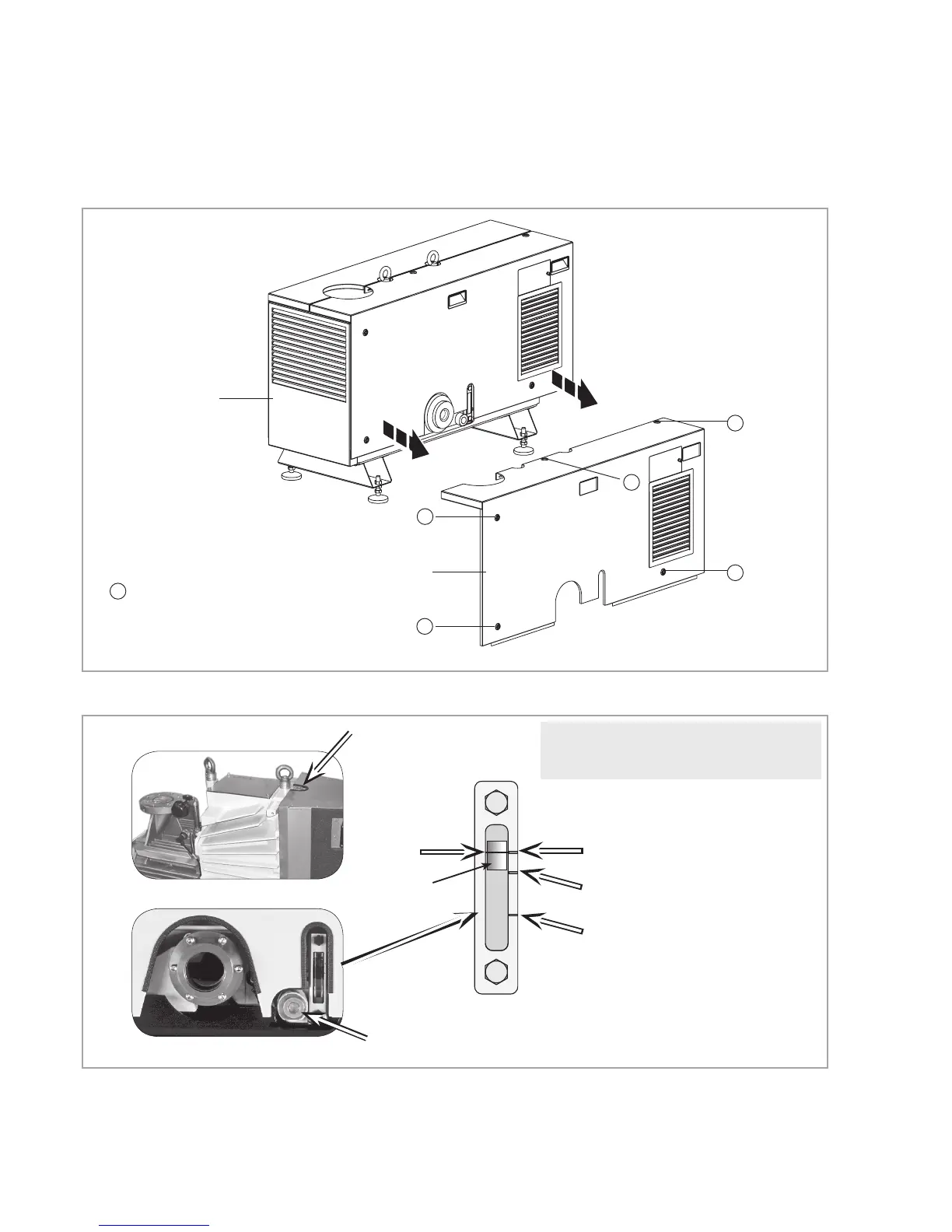

Fig. 4.2 Oil level at the oil sight glass after the SP 250
Maximum mark at the oil sight glass
■ during standstill
Minimum mark at the oil sight glass
■ during standstill
Minimum mark at the oil sight glass
■ during operation
Oil fill plug
Oil drain plug
When determining the correct oil level at the oil
sight glass, the oil level is decisive and not the
upper edge of the float!
Oil sight glass
Oil level
Float
Fig. 4.1 Unlocking the closure screws and removing the cover section
X
X
X
X
1 Cover section/exhaust side
2 Panel for guiding the discharge air
Closure screws (5x)
1
X
2
X
