LEYBOLD TRIVAC E2 User Manual

27
GA 01.600/10.02 - 07/01
Maintenance Kits and Repair Sets

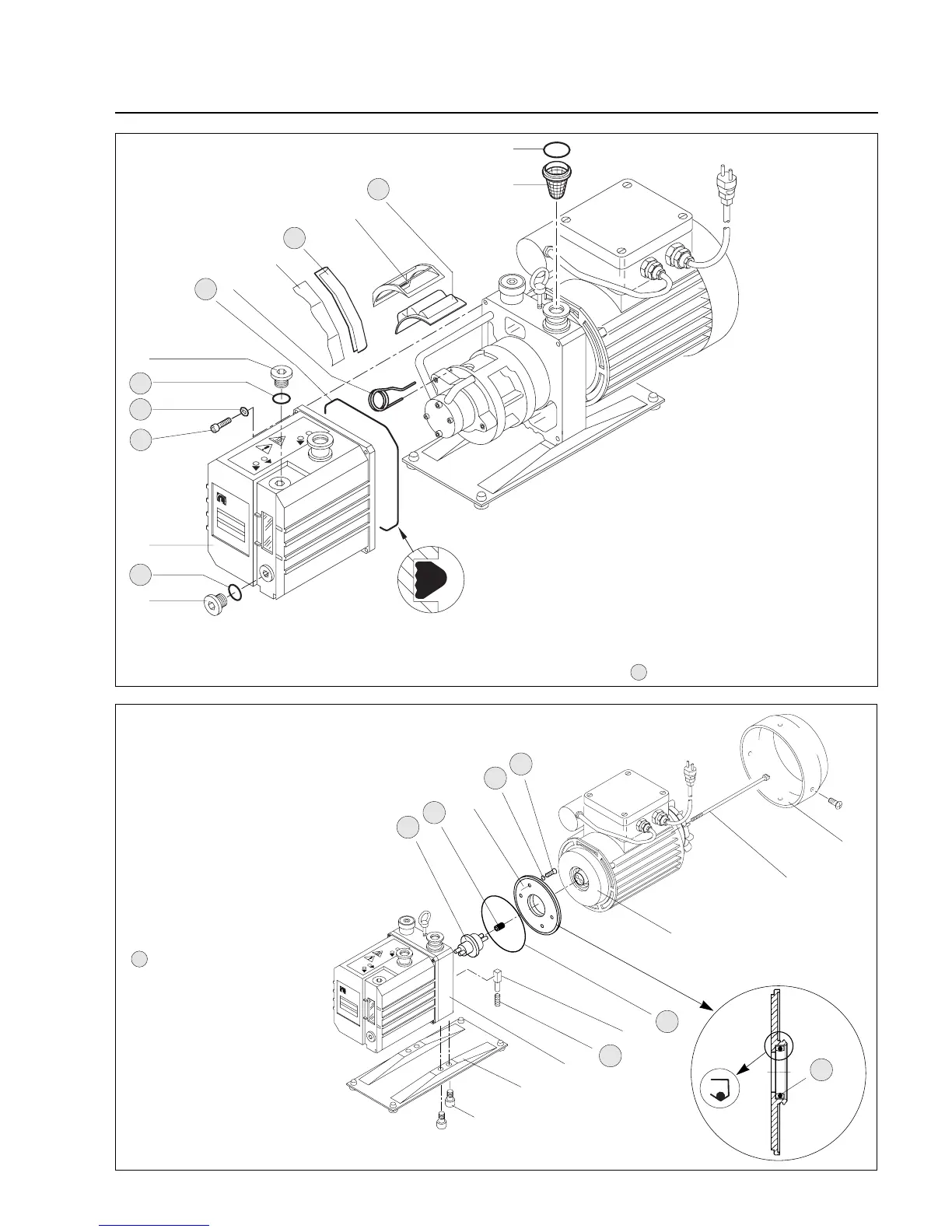

Fig. 12 Repair kit 1
B
G
0
1
2
3
TRIVAC
OUT
IN
OUT
IN
OIL
Fig. 11 Maintenance kit 1
Key to Fig. 11
1 Oil drain plug
2 Gasket
3 Oil box
4 Hex. socket screw
5 Washer
6 Gasket
7 Oil fill plug
8 Oil box seal
9 Spring clip
10 Guide panel
11 Sealing strip for guide panel (D 16 E only)
12 Holding frame for demister
13 Demister
14 O-ring
15 Dirt trap
- parts contained in the maintenance kit
1
10
2
3
4
5
6
7
8
9
11
12
13
14
15
OIL
1
2
4
5
8
6
10
11
12
13
14
3
7
15
9
Sectional view of the flange for
the shaft sealing ring and
orientation of the shaft
sealing ring
Key to Fig. 12
1 Coupling/Oil pump
2 Coupling bushing (2x)
3 Flange for the shaft sealing ring
4 O-ringe (4x)
5 Bolt (4x)
6 Fan cowl
7 Tie rods (4x)
8 A-bearing plate
9 O - ring
10 Stopper
11 Compression spring
12 HV-bearing piece
13 Base
14 Hex. socket bolt (4x)
15 Shaft sealing ring
- parts included in the repair kit
