LEYBOLD TRIVAC E2 User Manual

29
GA 01.600/10.02 - 07/01
Maintenance Kits and Repair Sets

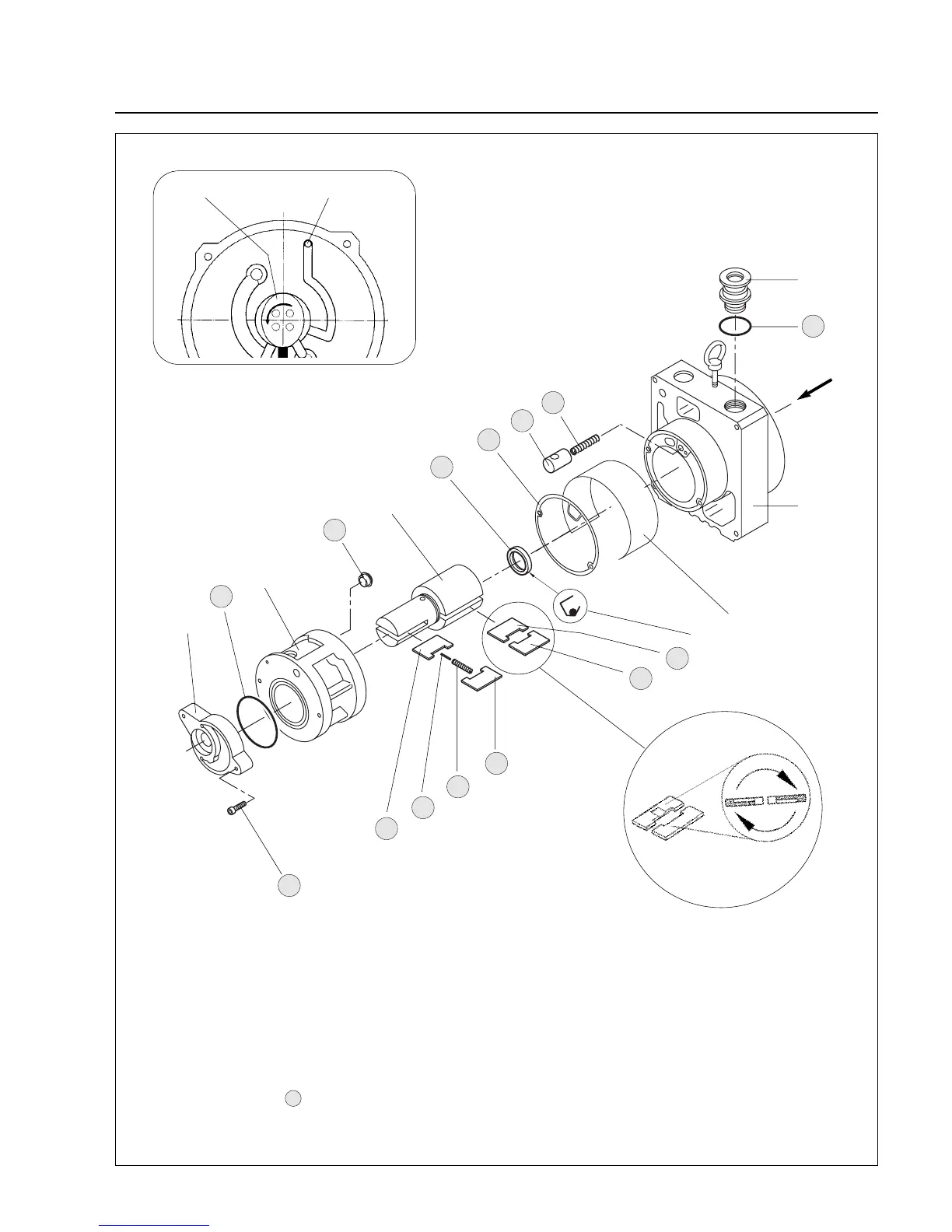

Fig. 14 Complete kit
Key to Fig. 14
1 End plate
2 O-ring
3 Forevacuum pot
4 Sealing nipple
5 Rotor
6 Shaft sealing ring
7 Flat seal
8 Tandem valve
9 Compression spring
10 Intake port
11 O-ring
12 High vacuum bearing piece
13 Oil guiding panel
14 Position/shaft sealing ring
15 Vane (HV)
16 Compression spring
17 Guide pin
18 Vane (FV)
19 Hex. socket bolt
- Parts included in the complete kit
1
3
5
10
12
13
14
2
4
6
7
8
9
11
15
15
16
18
18
17
19
Enlarged view F
Position of the HV vanes
View ”G”
Oil pump Nozzel
G
