LEYBOLD VARODRY VD200 - Accessories; Figure 1. Dimensional Drawing (MM)

5) Up to 200 mbar possible depending on the inlet pressure of the pump. Please consult
Leybold if 50 mbar is exceeded

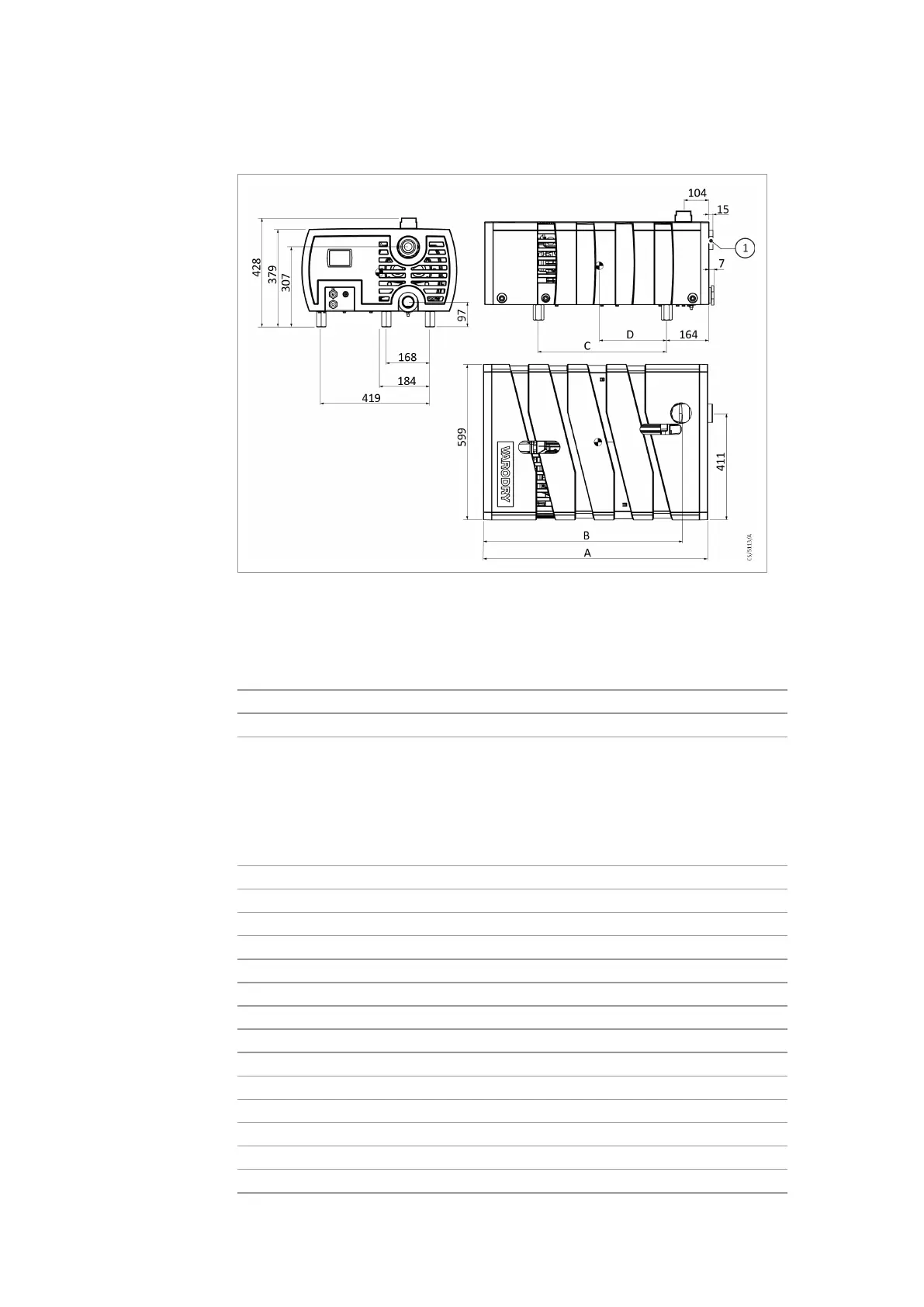

Figure 1. Dimensional drawing (mm)
1.
Optional inlet position
1.
Optional inlet position
Variable dimensions VD65 VD100 VD160 VD200
A 773 865 402 153
B 670 762 494 194
C 402 957 647 270
D 153 957 647 270
3.3 Accessories
Table 2 Accessories
Centering ring, aluminium, FPM DN 40 ISO-KF 18208
Clamping ring, aluminium DN 40 ISO-KF 18343
Inlet adapter G 1¼" 111005A21
Inlet adapter DN40 ISO-KF 111005A20
Inlet adapter DN63 ISO-K 111005A24
Exhaust adapter DN40 ISO-KF 111005A30
Replacement timing belt 50 Hz versions E6525604
Replacement timing belt 60 Hz versions E6525605
Belt replacement tool kit EK6530942
Pump ushing kit
Inlet non return valve (for operation > 10 mbar) 111005A15
Inlet adapter NPT 1¼ - 11.5 111005A22
Inlet adapter NPT 2 - 11.5 111005A23
Exhaust adapter NPT 1½ - 11.5 111005A31
Blow off valve replacement kit EK6525317
