Manual CT26-15 - LFB
13
Assembly of the rear wheel:
Take the wheel and put the chain on the smallest sprocket right side, then engage the wheel between the
brake pads.
r

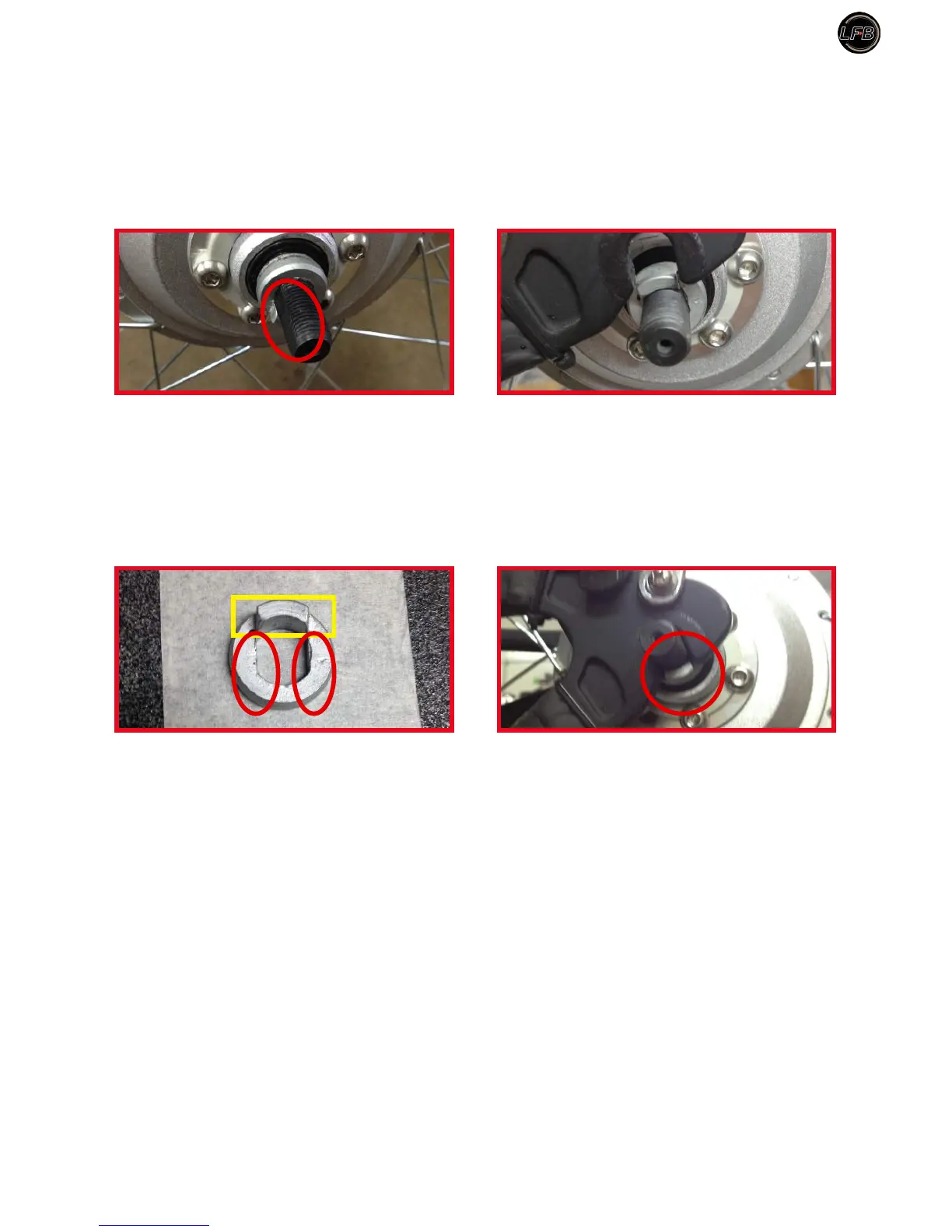

warning ! the Motor shaFt has an axle with 2 Flat sides. it should be positioned to allow it to pass in the
FraMe. to do this it is soMetiMes necessary to rotate the axle.
Flat sie of the axle Passage frame.
Returning to the back, insert the wheel axle in the housing right and left of the frame. Put washers and wheel
nuts. Tighten the nuts by hand at rst so they touch the frame.
r
warning ! on each side there is a washer with Flat «pin». the pin should always be positioned in the
openings oF the FraMe to prevent the axle FroM turning on itselF.
Washer with at pin.
To prevent the motor rotates the axle and not
the wheel, ensure that the pin is locked in the
frame.
Center the wheel in the frame. Control the centering and positioning in line with the front wheel, and the
positioning of the chain.
Screw without tighten wheel nuts on each side. Recheck the positioning, centering and position of the chain.
Tighten alternately and gradually on each side of the wheel the nuts (tightening torque 40 Nm max). Replace
nuts caches.
Flat pin
Flat sie
of the
axle.
Flat sie
of the
axle.
