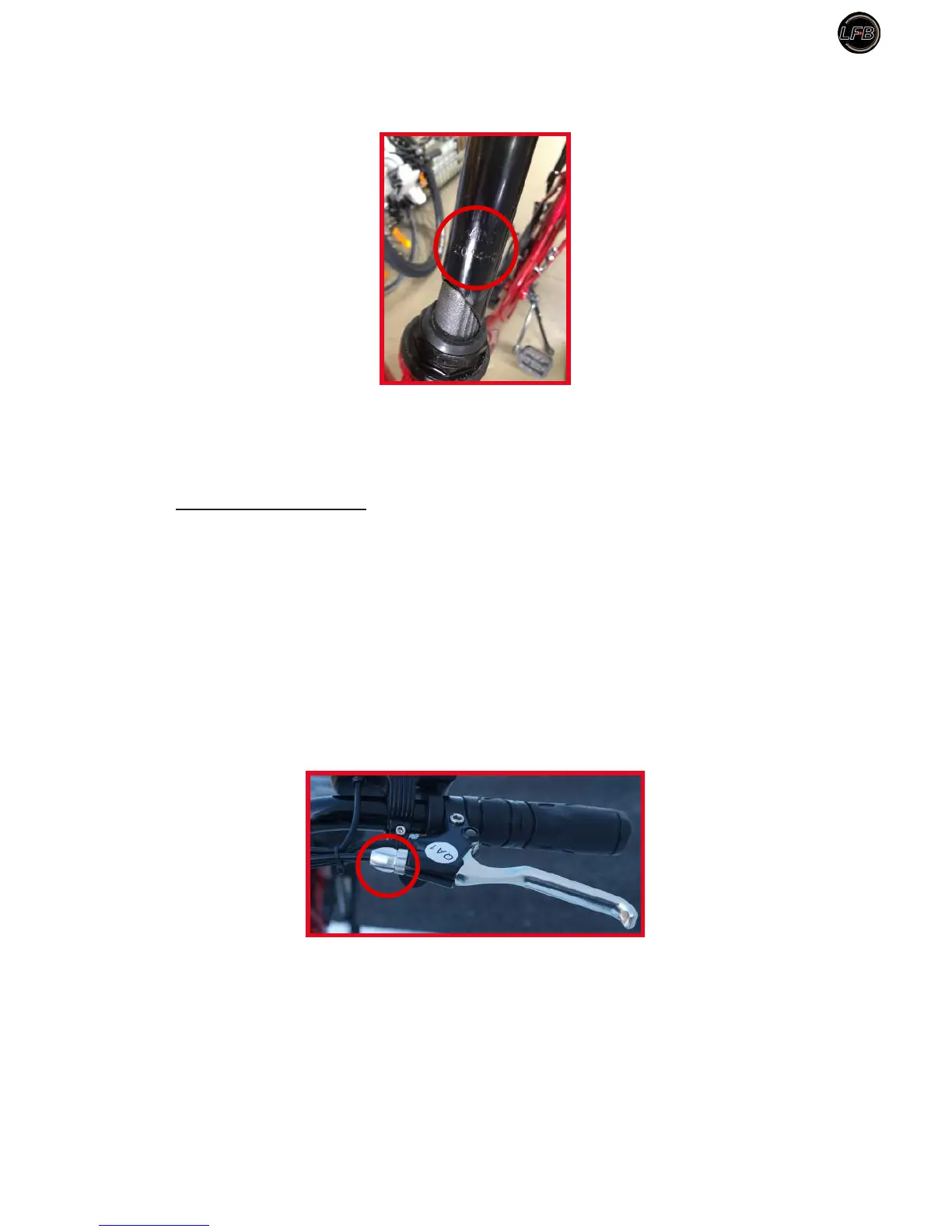

«MINIMUM INSERTION»).
After adjustment, tighten the screw by turning clockwise direction (maximum tightening torque of 25 Nm).
2.3 Brake adjustment
Allen key 5 mm.
Screwdriver.
2.3.1 Front brake Type V-Brake
The front brake is maneuvered by the left handle on the handlebar.
Fully tighten the nut on the brake lever, this feature allows you to compensate later the natural release of
the brake cable.
Loosen the cable clamp and pull the cable until the brake pads touch the rim. Tighten the cable clamp (special
attention is to be made at each end of the sheath which is to enter without forcing into the housing of each
rigid tip, brake lever and V-Brake).
