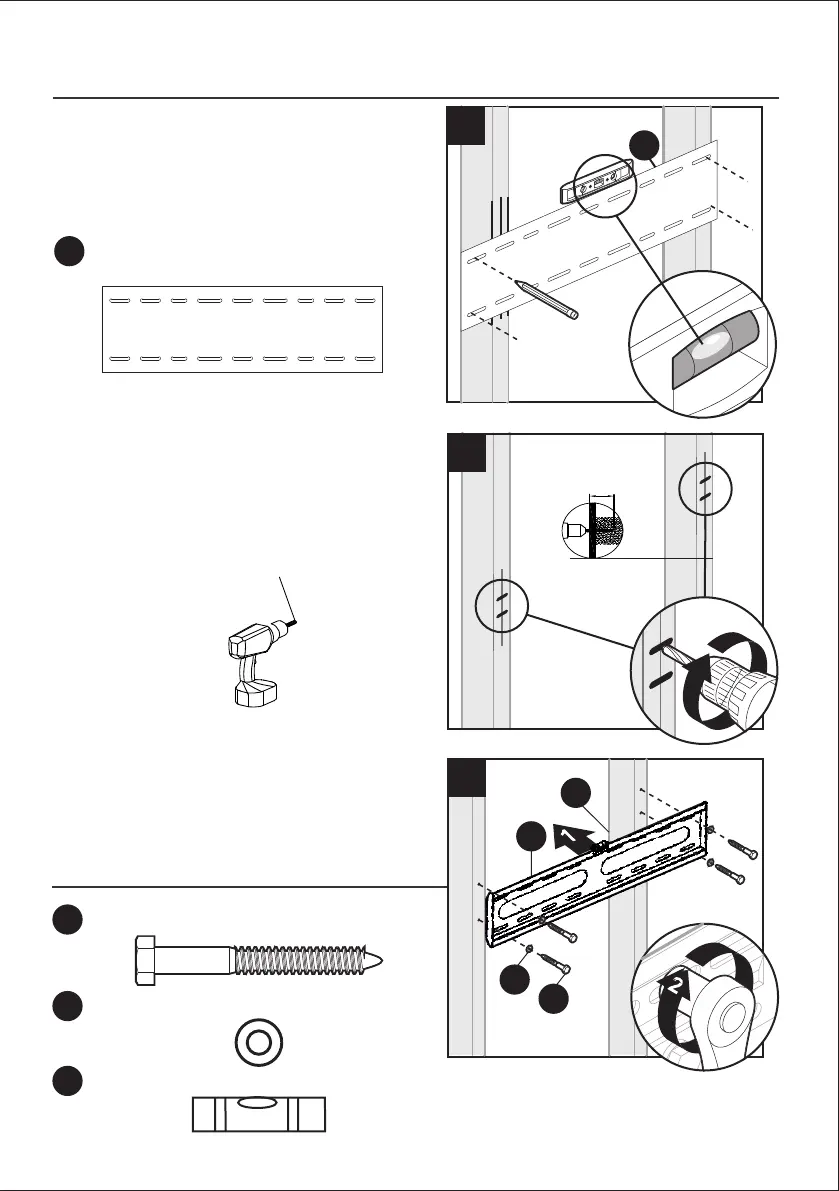

Note: Use a bubble level to level the mounting
template (D).
5. Pre-drill marked 4 holes with a 7/32 in. wood drill bit
to a depth of 2.2 mounting template
6. Fix the wall plate (A) to the wall with four M8 lag
washers (HH) and four M8x60 mm lag bolts (GG)
using the 1/2-in socket wrench (not included).
M8x60 mm lag bolts
M8 lag washer
Note: Use a bubble level (EE) to level the wall plate (A).
7/32 in. (5.5 mm)
Wood Drill Bit
D
Mounting Template
Hardware Used
x4
x4
4. Hold the mounting template (D) in the desired
position and use a pencil to mark 4 holes locations.
HH
GG
4
5
6
2.2 in. (55 mm)
Depth
D
GG
HH
EE
Bubble level
x1
10
ASSEMBLY INSTRUCTIONS
A
EE
