LG-Ericsson LDP-7224 User Manual

3. Cable Connection
Getting Started

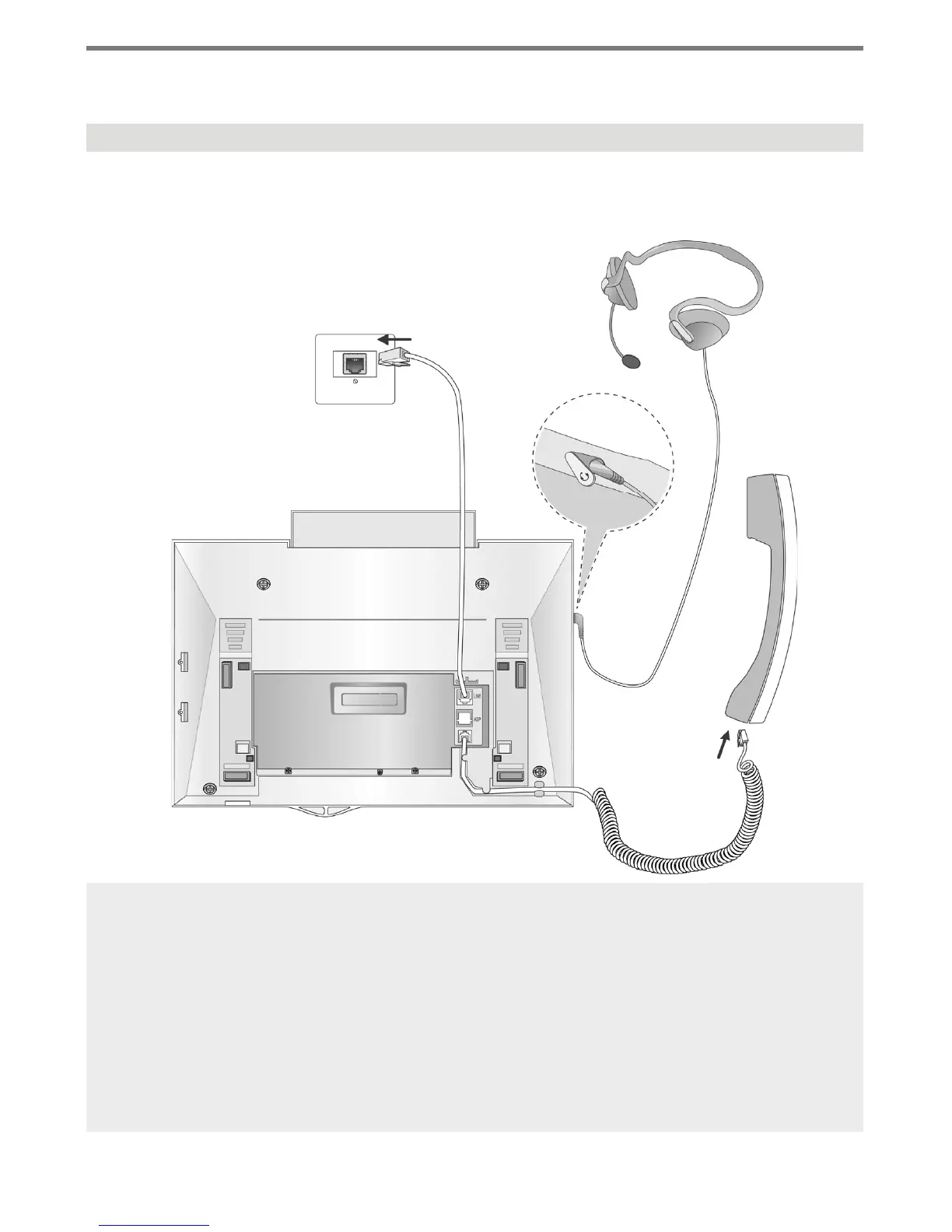

The diagram (shown) depicts cable connections for the LDP-7224D; connection points are
described below.
B
C
A - Connect the telephone cord (spiral cord) to the handset and the other end to the
handset jack at the bottom of the telephone.
A
B - Connect the line cable to the port at the bottom of telephone and the other end to the
wall socket.
C - Connect the Headphone to the headphone jack on the left side of the telephone
(when viewed from the front).
4

LG-Ericsson LDP-7224 Specifications

General

Brand	LG-Ericsson
Model	LDP-7224
Category	IP Phone
Language	English
